Installation Procedure

NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  1. Install the seat adjuster assembly to the seat bottom frame with 4 nuts.

    Tighten

    Tighten the adjuster to the seat bolts to 24 N.m (18 lb ft).

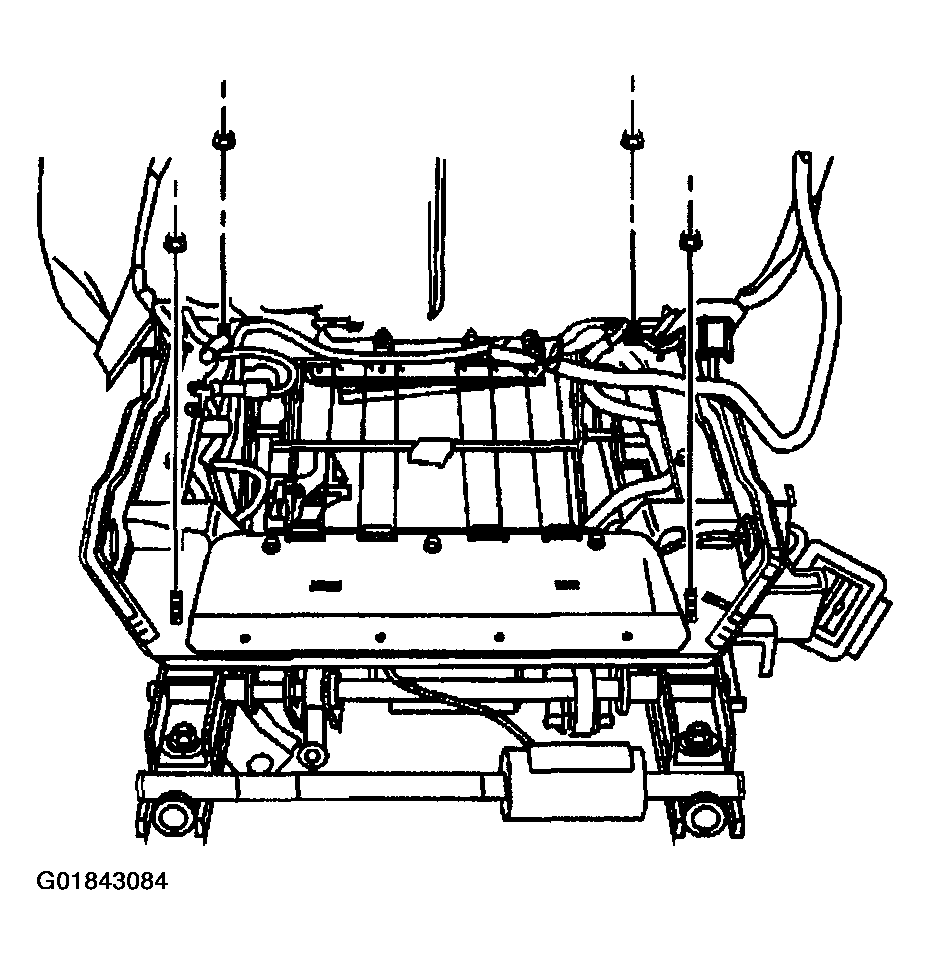

    Fig 1: Locating Seat Bottom Frame-To-Seat Adjuster Assembly Nuts
    G01843084Courtesy of GENERAL MOTORS CORP.
  2. Install the seat back assembly to the seat adjuster assembly with four bolts.

    Tighten

    Tighten the bolts to 24 N.m (18 lb ft).

  3. Connect the electrical connectors.
  4. Pull the seat pad and seat cover back down on the seat bottom frame.
  5. Engage the J-strips to the seat bottom frame.

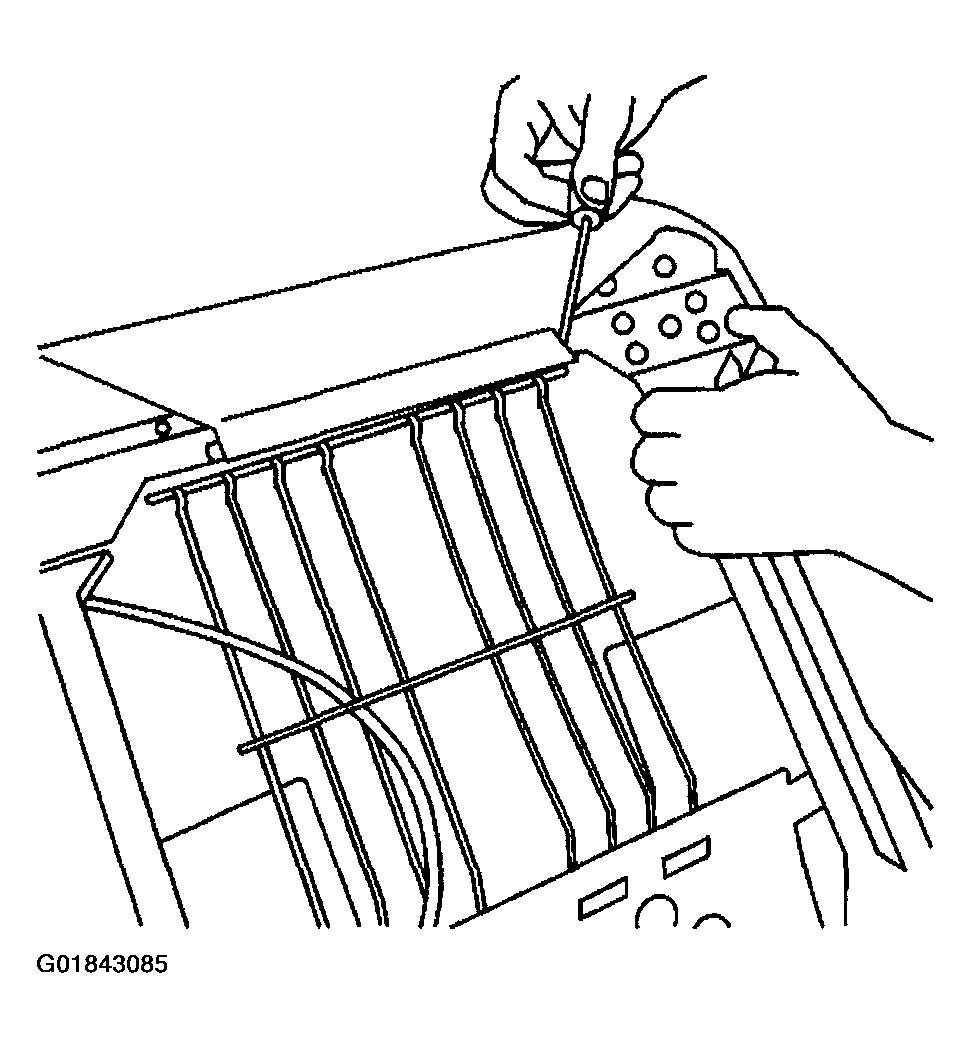

    Fig 2: Locating Seat Bottom Frame J-Strips
    G01843085Courtesy of GENERAL MOTORS CORP.
  6. Install the seat belt buckle to the seat.

    Tighten

    Tighten the seat belt buckle bolt to 70 N.m (52 lb ft).

    Fig 3: Locating Seat Belt Buckle Bolt
    G01843086Courtesy of GENERAL MOTORS CORP.
  7. Install the lumbar switch to the seat. Refer to LUMBAR SWITCH REPLACEMENT .
  8. Install the power seat switch to the seat. Refer to SEAT SWITCH REPLACEMENT - POWER .
  9. Install the seat to the vehicle. Refer to SEAT REPLACEMENT - BUCKET .
