Removal Procedure

  1. Remove the seat from the vehicle. Refer to Refer to SEAT REPLACEMENT - BUCKET  or SEAT REPLACEMENT - BENCH .
  2. Remove the seat belt buckle from the seat.
  3. Remove the adjuster return spring.
    Fig 1: Locating Seat Belt Buckle Bolt
    G01843077Courtesy of GENERAL MOTORS CORP.
  4. Remove the adjuster assembly seat bolts.
  5. Remove the trim cover and/or shim.
  6. Remove the lock wire.
  7. Remove the adjuster assembly from the seat.

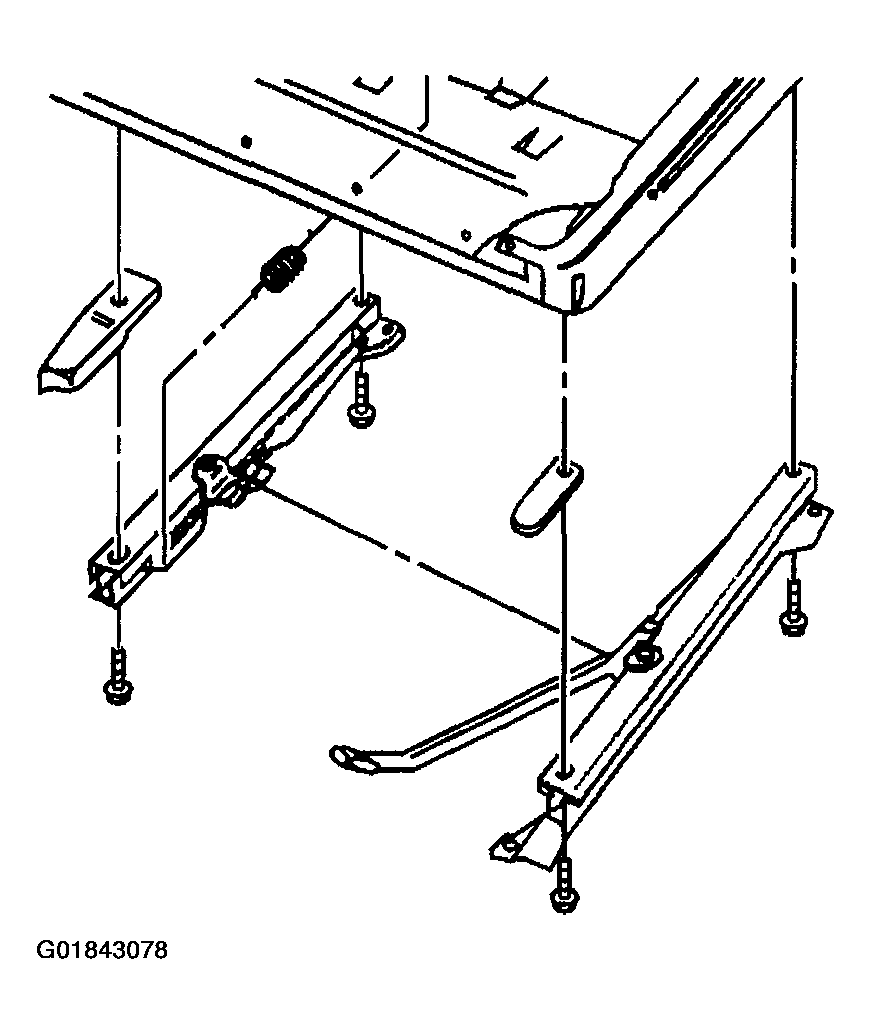

    Fig 2: Identifying Front Seat Adjuster Assembly
    G01843078Courtesy of GENERAL MOTORS CORP.
