Installation Procedure

  1. Install the adjuster to the seat.
  2. Install the lock wire to the adjuster.
  3. Install the trim cover and/or shim.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  4. Install the adjuster to the seat bolts.

    Tighten

    Tighten the adjuster to the seat bolts to 24 N.m (18 lb ft).

  5. Install the adjuster return spring to the seat frame.

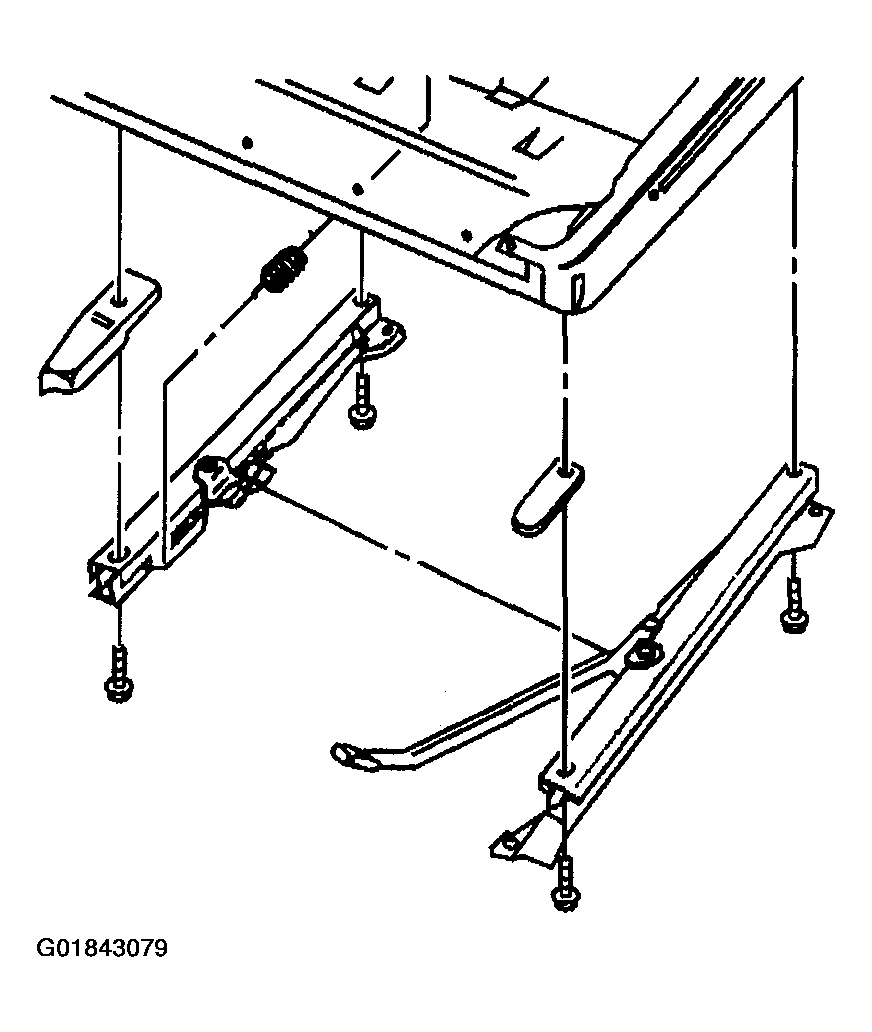

    Fig 1: Identifying Front Seat Adjuster Assembly
    G01843079Courtesy of GENERAL MOTORS CORP.
  6. Install the seat belt buckle to the seat.

    Tighten

    Tighten the seat belt buckle bolt to 70 N.m (52 lb ft).

    Fig 2: Locating Seat Belt Buckle Bolt
    G01843080Courtesy of GENERAL MOTORS CORP.
  7. Install the seat to the vehicle. Refer to Refer to SEAT REPLACEMENT - BUCKET  or SEAT REPLACEMENT - BENCH .
