Removal Procedure

  1. Remove the 2 screws securing the guard to the seat.

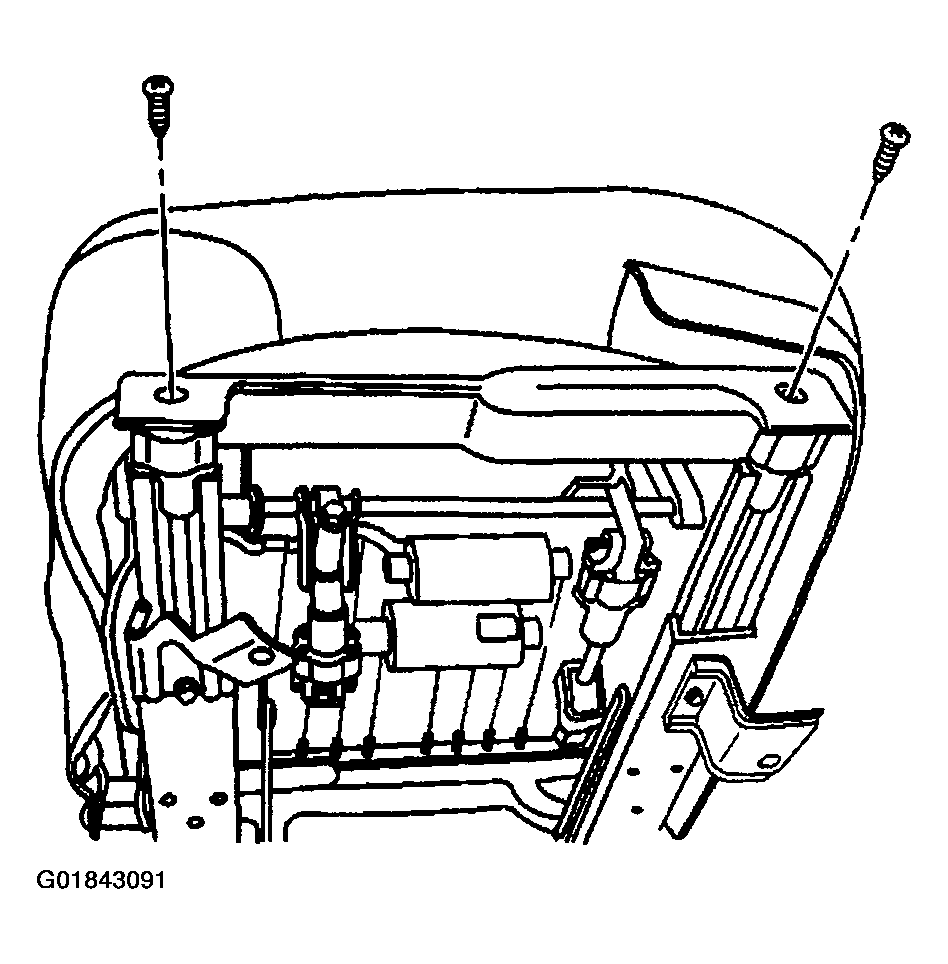

    Fig 1: Locating Seat Adjuster Motor Guard
    G01843091Courtesy of GENERAL MOTORS CORP.
  2. Remove the guard.
