Installation Procedure

  1. Position the guard on the front of the seat adjuster assembly.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  2. Install the guard to the seat with the 2 screws.

    Tighten

    Tighten the screws to 1.9 N.m (17 lb in).

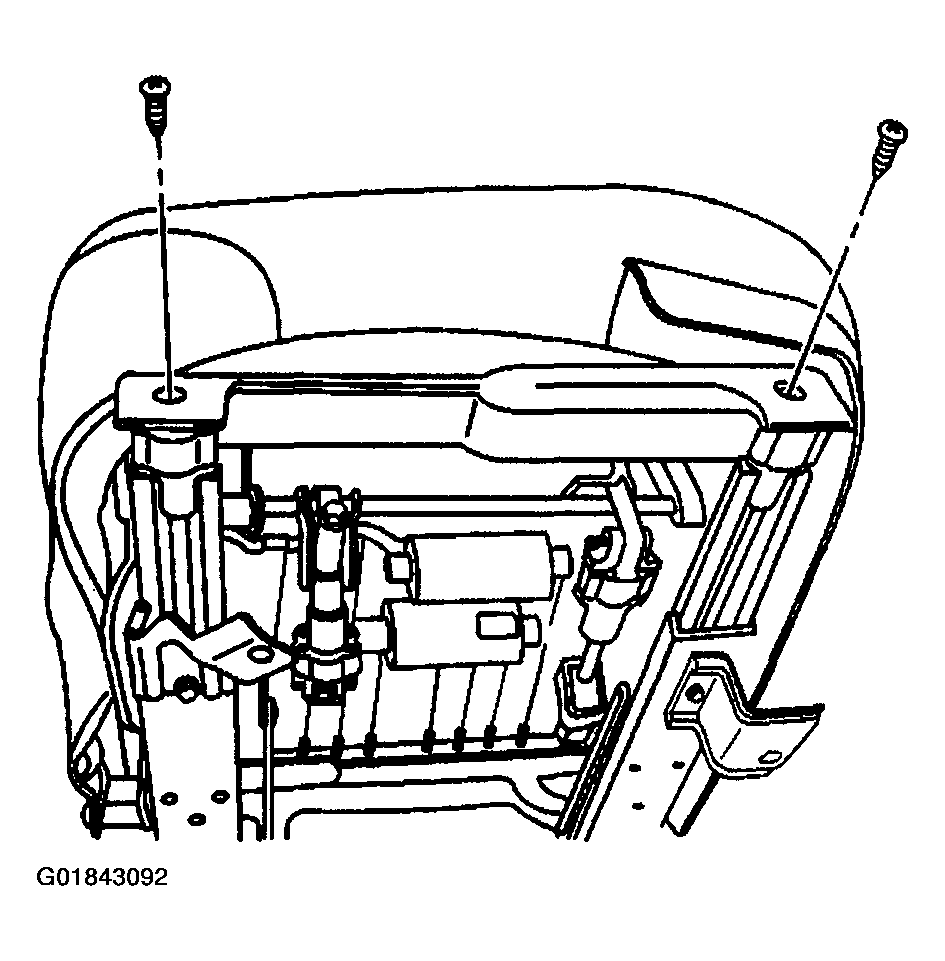

    Fig 1: Locating Seat Adjuster Motor Guard
    G01843092Courtesy of GENERAL MOTORS CORP.
