Removal Procedure

  1. Use a flat-bladed tool in order to remove the retainer clip.

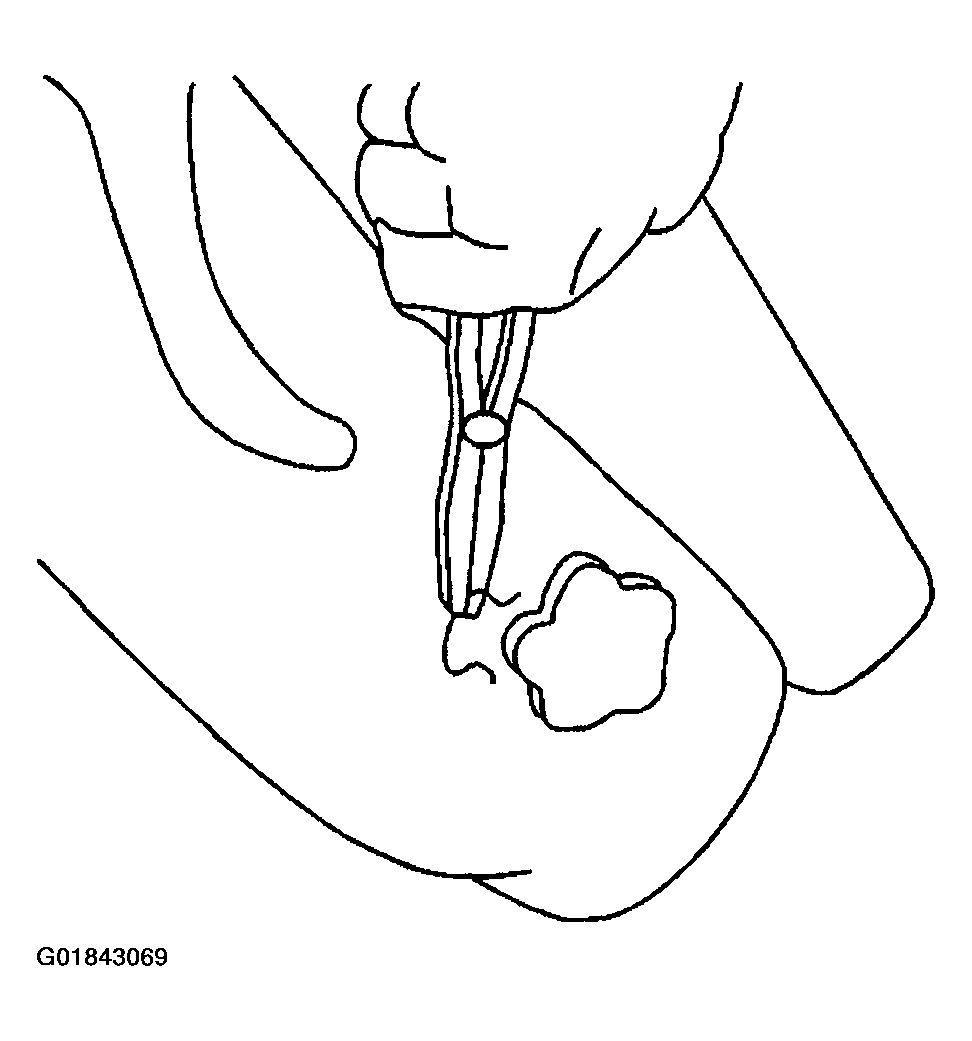

    Fig 1: Locating Lumbar Support Knob Retainer Clip
    G01843069Courtesy of GENERAL MOTORS CORP.
  2. Remove the lumbar adjustment handle from the seat bottom.
