Removal Procedure

IMPORTANT: Use the following procedure in order to adjust the jump seat if the seat is not parallel to the body side trim panel when the seat is in the closed position.
  1. Use a flat-bladed tool in order to carefully remove the adjustment bolt cover.
  2. Turn the bolt clockwise or counterclockwise until the seat trim panel is parallel to the body side trim panel.

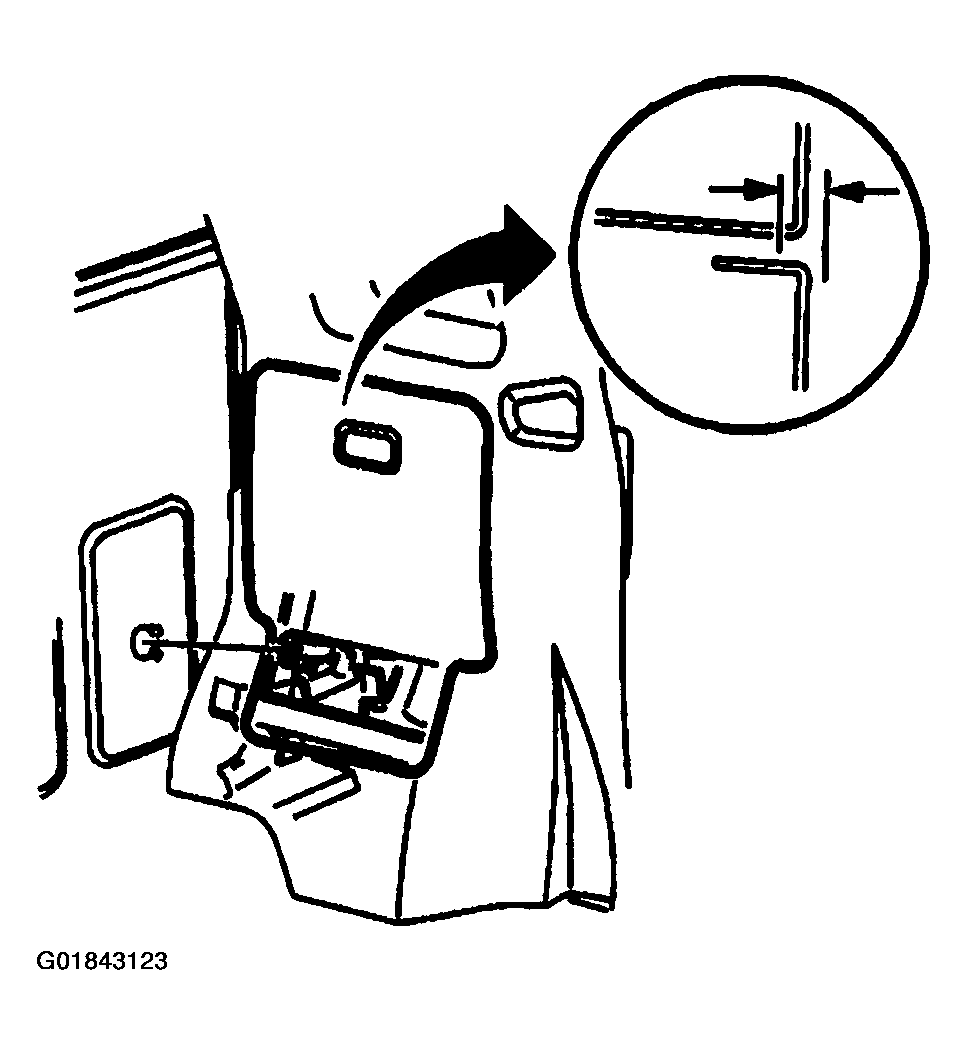

    Fig 1: Identifying Jump Seat Adjusted Position
    G01843123Courtesy of GENERAL MOTORS CORP.
