Removal Procedure

  1. Press the retaining tab under the cupholder while pulling outward in order to remove the cupholder from the bracket.

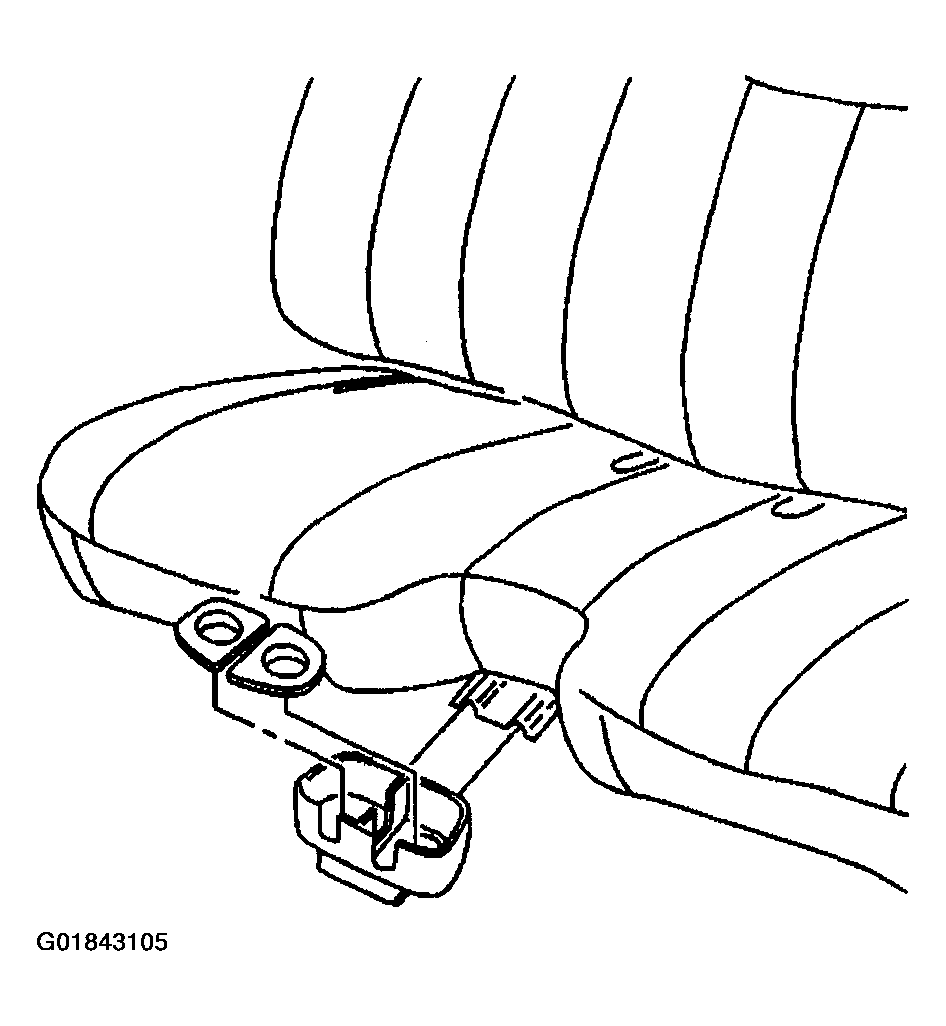

    Fig 1: Locating Front Seat Cupholder
    G01843105Courtesy of GENERAL MOTORS CORP.
  2. Remove the rubber pad.
