Installation Procedure

  1. Install the rubber pad.
  2. Slide the cupholder into the bracket.

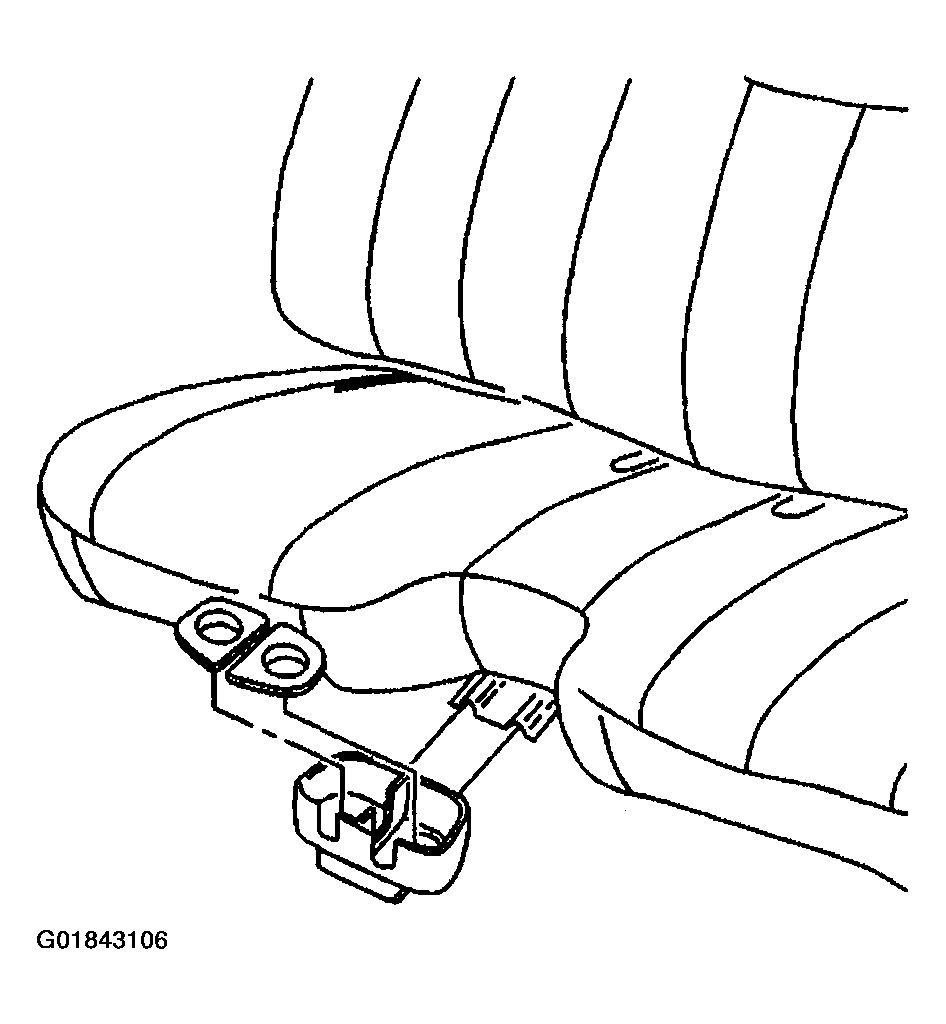

    Fig 1: Locating Front Seat Cupholder
    G01843106Courtesy of GENERAL MOTORS CORP.
  3. Snap the cupholder into place.
