Power Seat Inoperative

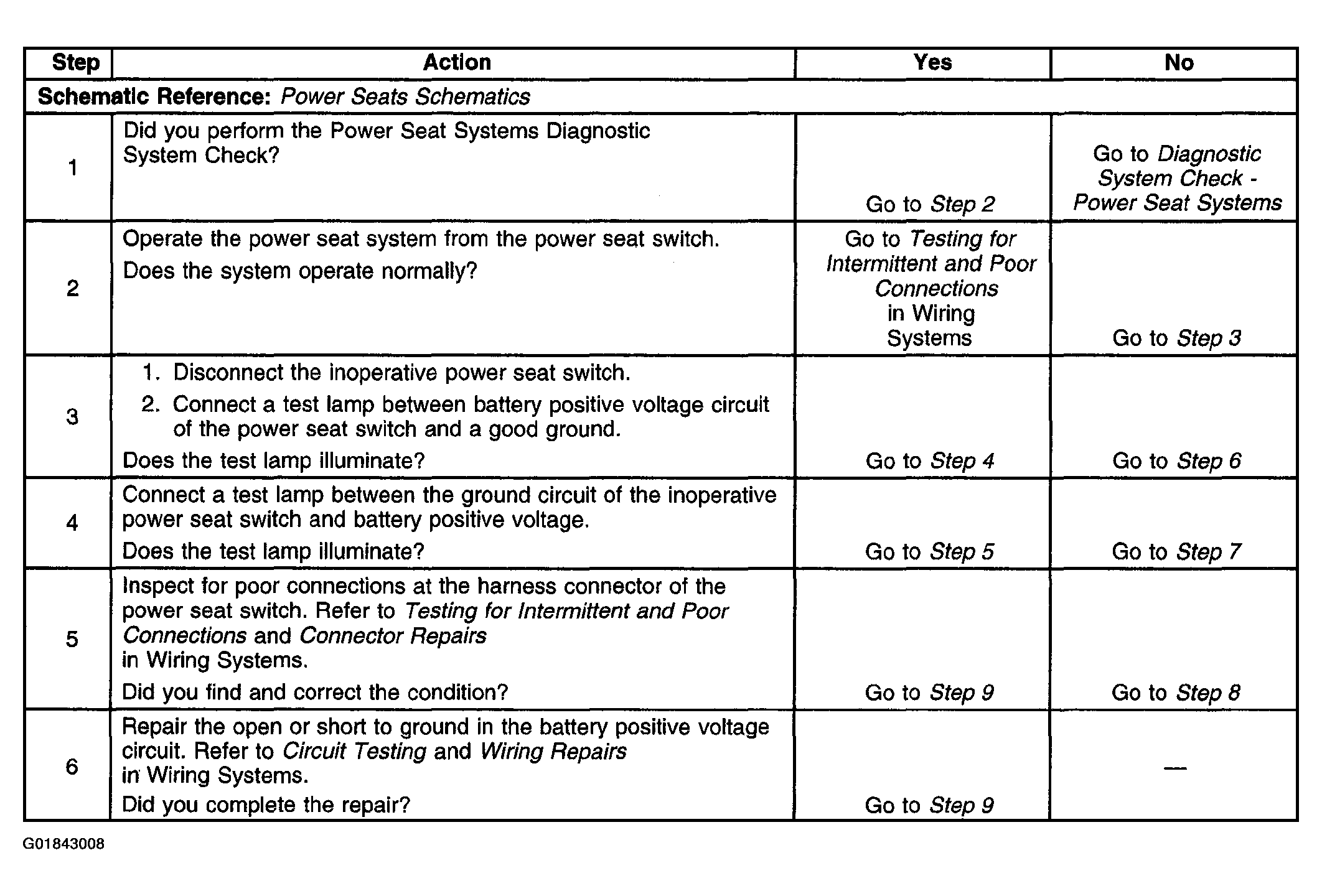

Fig 1: Power Seat Inoperative Symptom Diagnostic Procedure (Steps 1-6)
G01843008Courtesy of GENERAL MOTORS CORP.

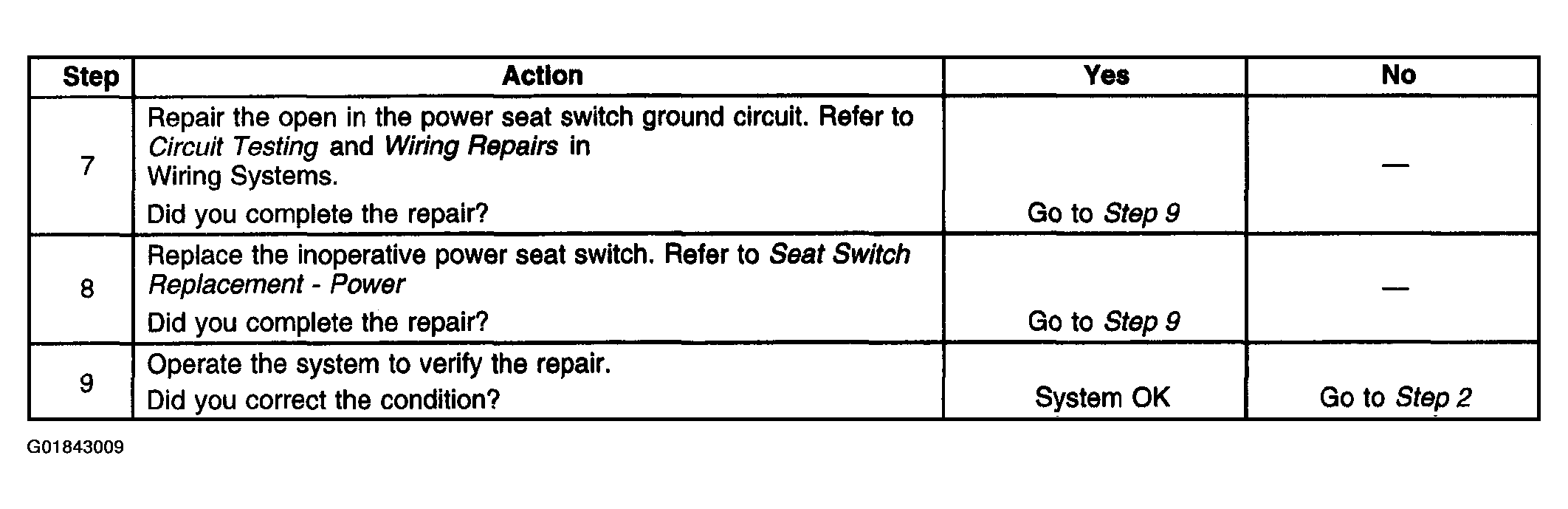

Fig 2: Power Seat Inoperative Symptom Diagnostic Procedure (Steps 7-9)
G01843009Courtesy of GENERAL MOTORS CORP.
