Power Seat Does Not Tilt Rearward

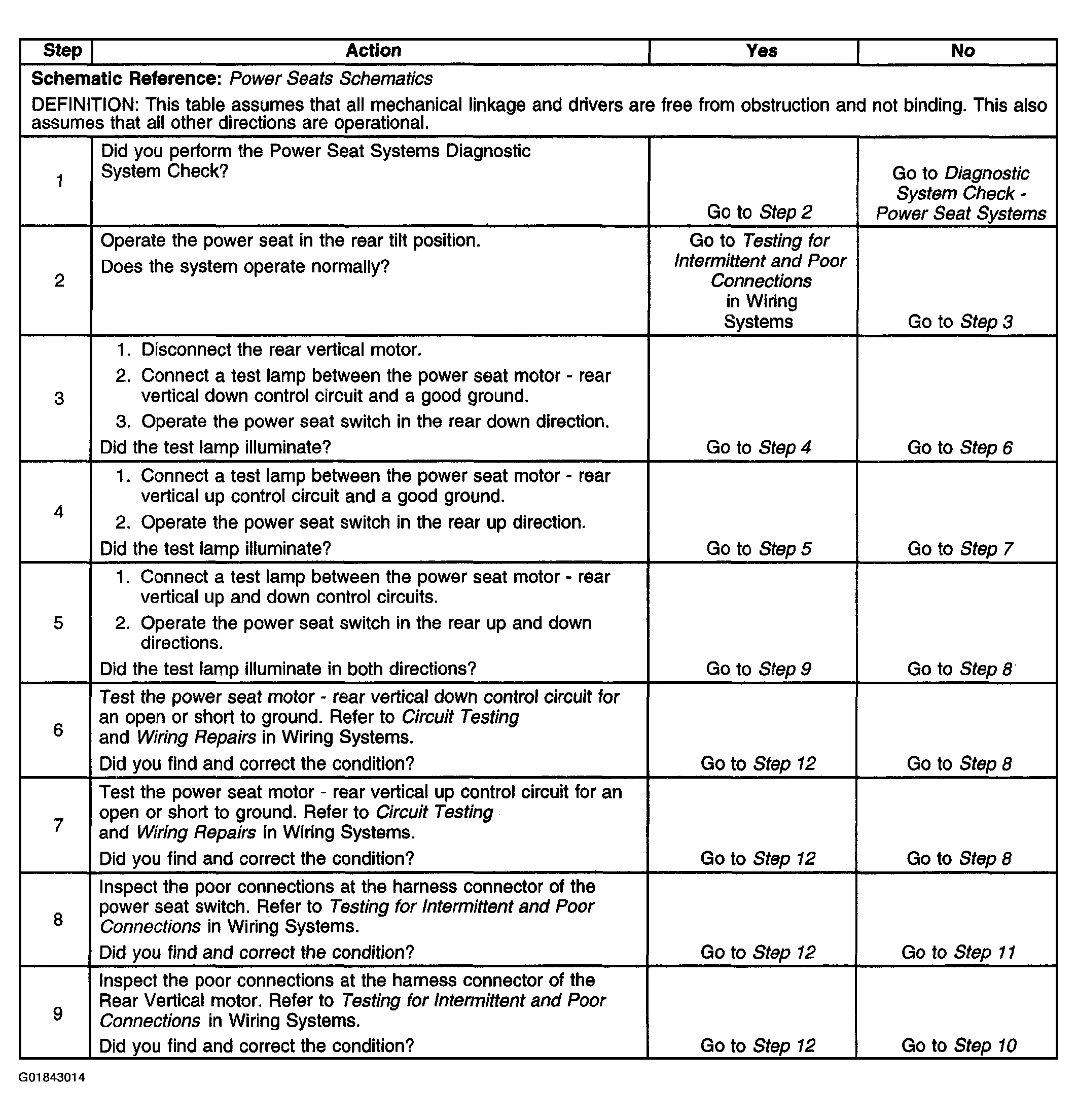

Fig 1: Power Seat Does Not Tilt Rearward Symptom Diagnostic Procedure (Steps 1-9)
G01843014Courtesy of GENERAL MOTORS CORP.

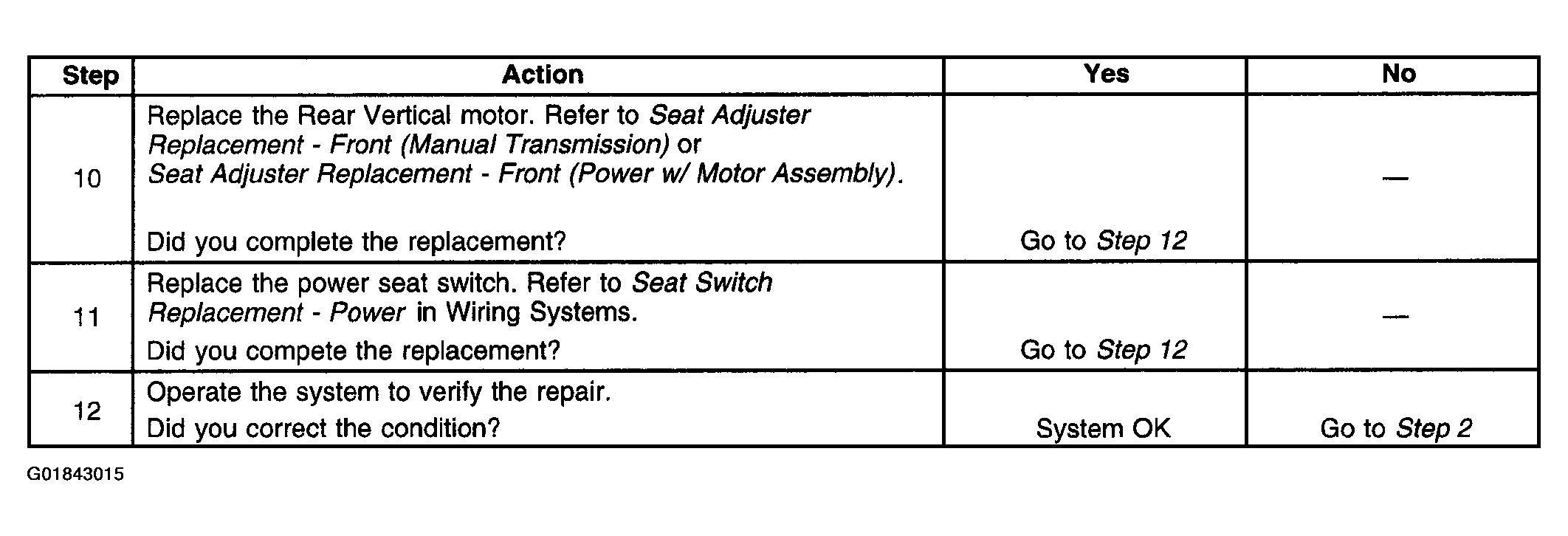

Fig 2: Power Seat Does Not Tilt Rearward Symptom Diagnostic Procedure (Steps 10-12)
G01843015Courtesy of GENERAL MOTORS CORP.
