Power Seat Does Not Tilt Forward

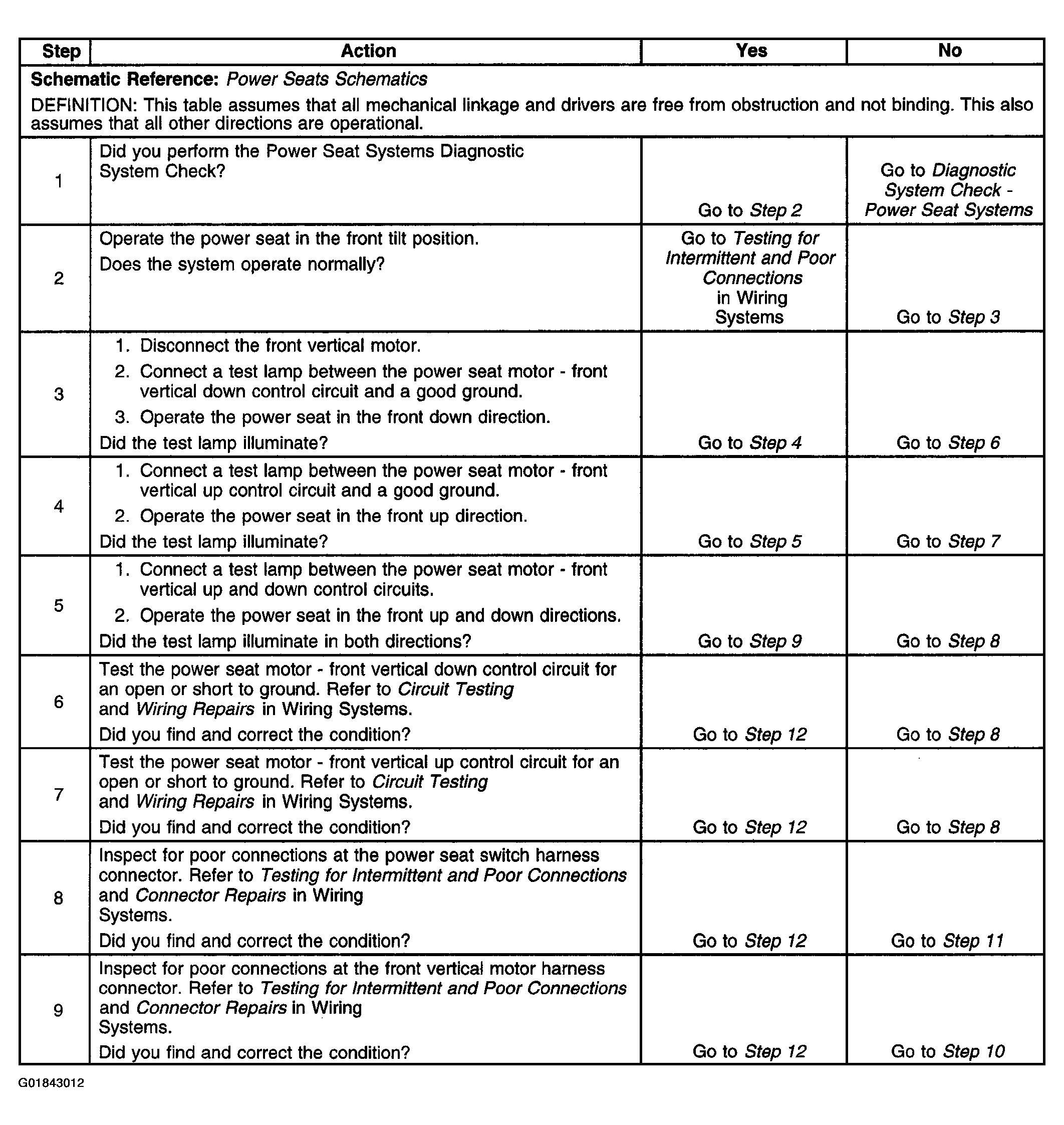

Fig 1: Power Seat Does Not Tilt Forward Symptom Diagnostic Procedure (Steps 1-9)
G01843012Courtesy of GENERAL MOTORS CORP.

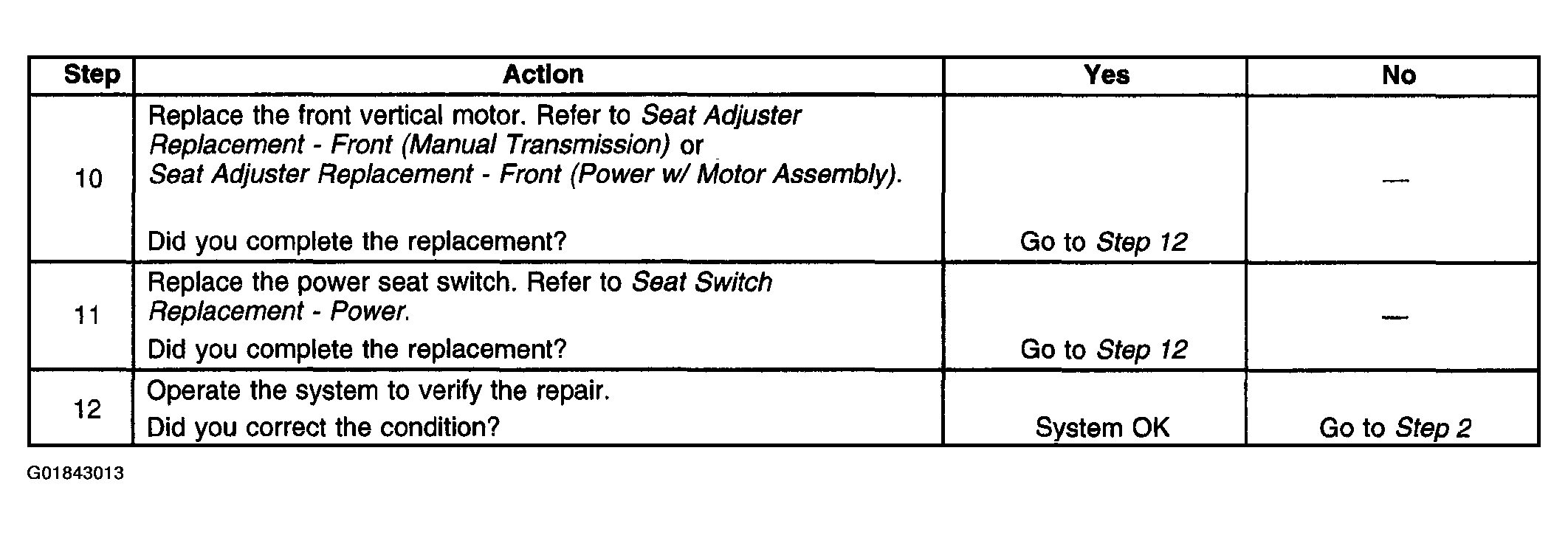

Fig 2: Power Seat Does Not Tilt Forward Symptom Diagnostic Procedure (Steps 10-12)
G01843013Courtesy of GENERAL MOTORS CORP.
