Power Seat Does Not Recline

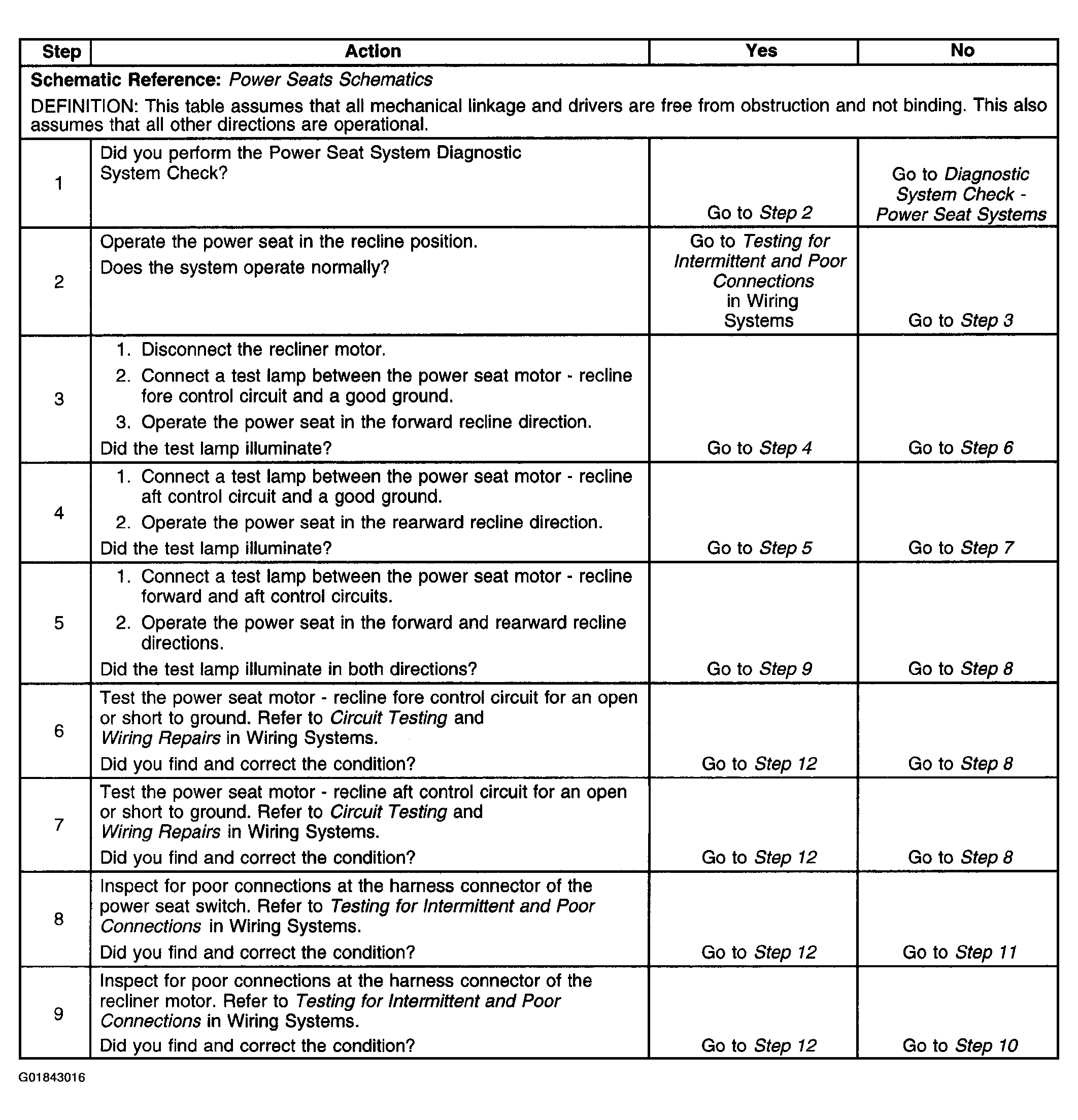

Fig 1: Power Seat Does Not Recline Symptom Diagnostic Procedure (Steps 1-9)
G01843016Courtesy of GENERAL MOTORS CORP.

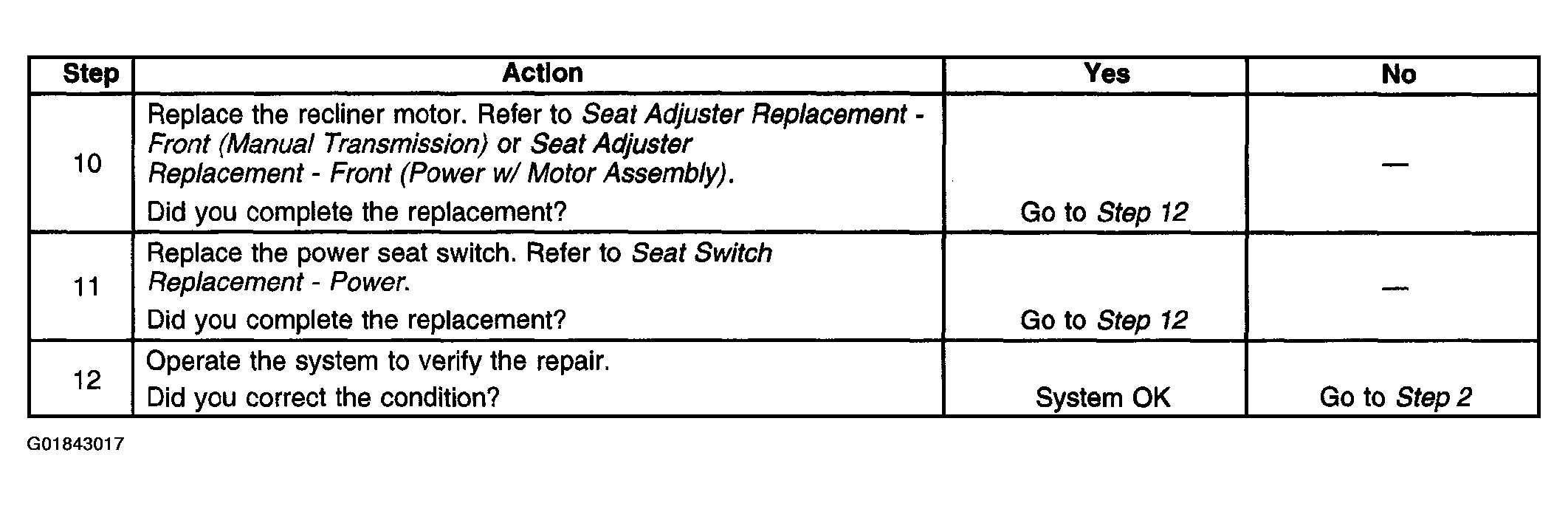

Fig 2: Power Seat Does Not Recline Symptom Diagnostic Procedure (Steps 10-12)
G01843017Courtesy of GENERAL MOTORS CORP.
