Lumbar Support Inoperative

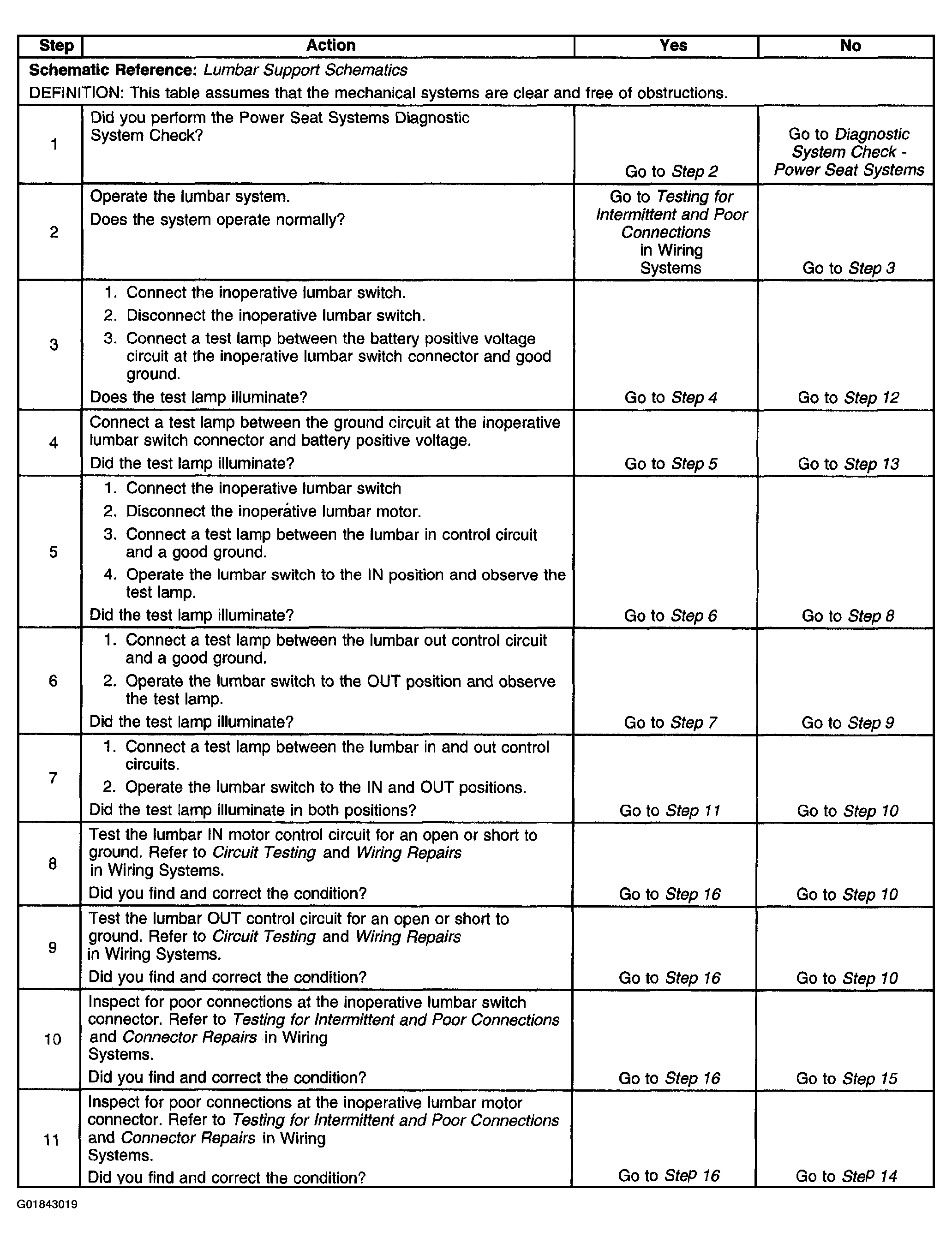

Fig 1: Lumbar Support Inoperative Symptom Diagnostic Procedure (Steps 1-11)
G01843019Courtesy of GENERAL MOTORS CORP.

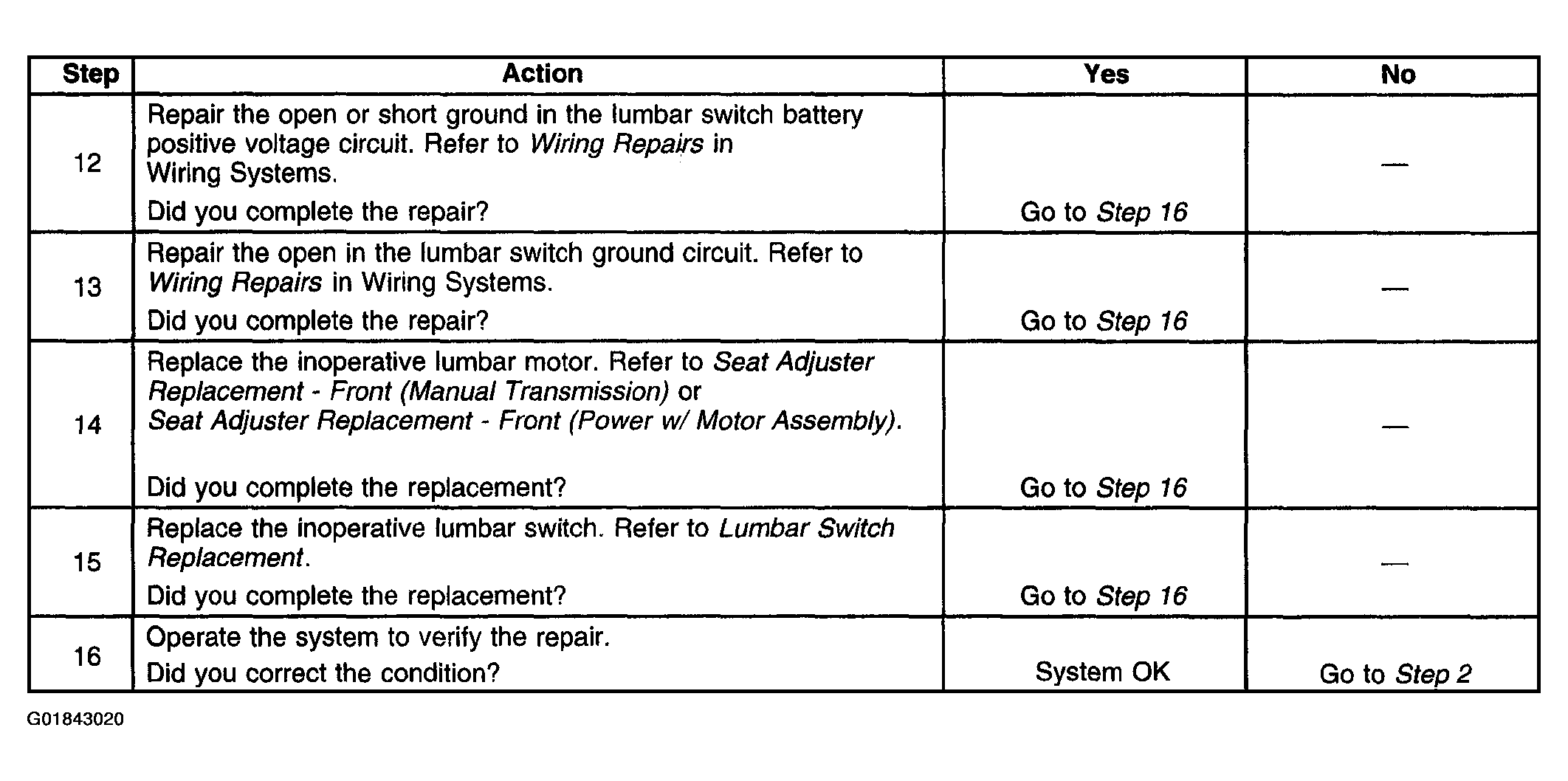

Fig 2: Lumbar Support Inoperative Symptom Diagnostic Procedure (Steps 12-16)
G01843020Courtesy of GENERAL MOTORS CORP.
