Heated Seat Switch Mode Indicator Malfunction

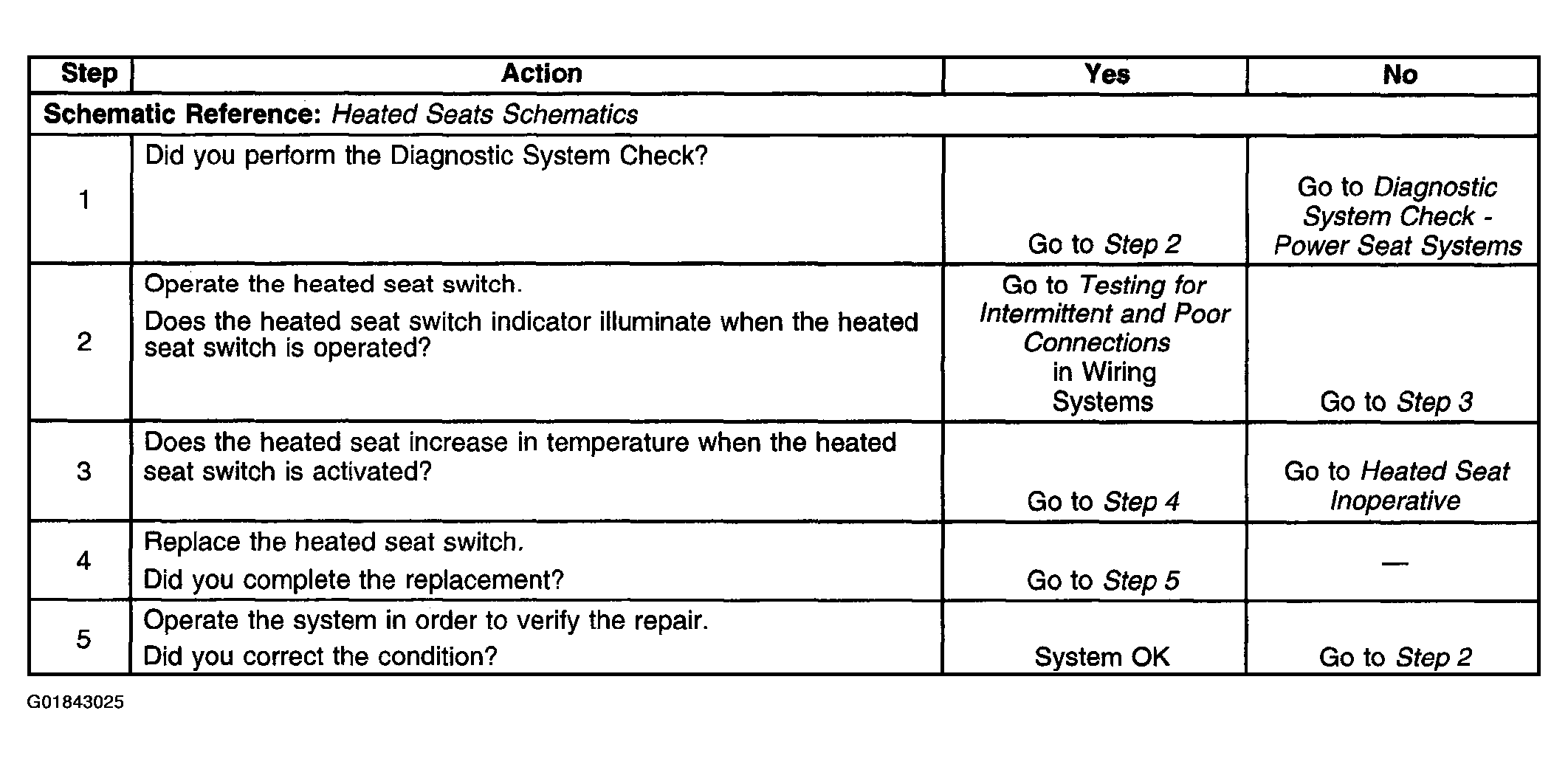

Fig 1: Heated Seat Switch Mode Indicator Malfunction Symptom Diagnostic Procedure (Steps 1-5)

G01843025

Courtesy of GENERAL MOTORS CORP.
