Heated Seat Inoperative

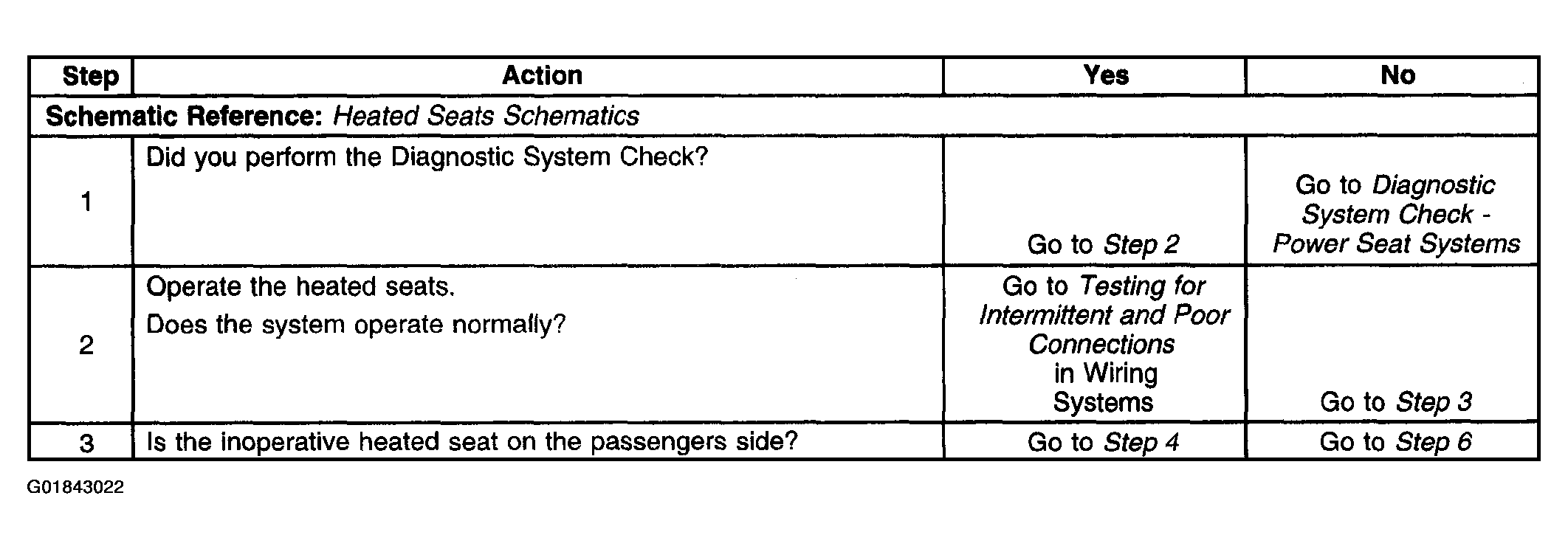

Fig 1: Heated Seat Inoperative Symptom Diagnostic Procedure (Steps 1-3)
G01843022Courtesy of GENERAL MOTORS CORP.

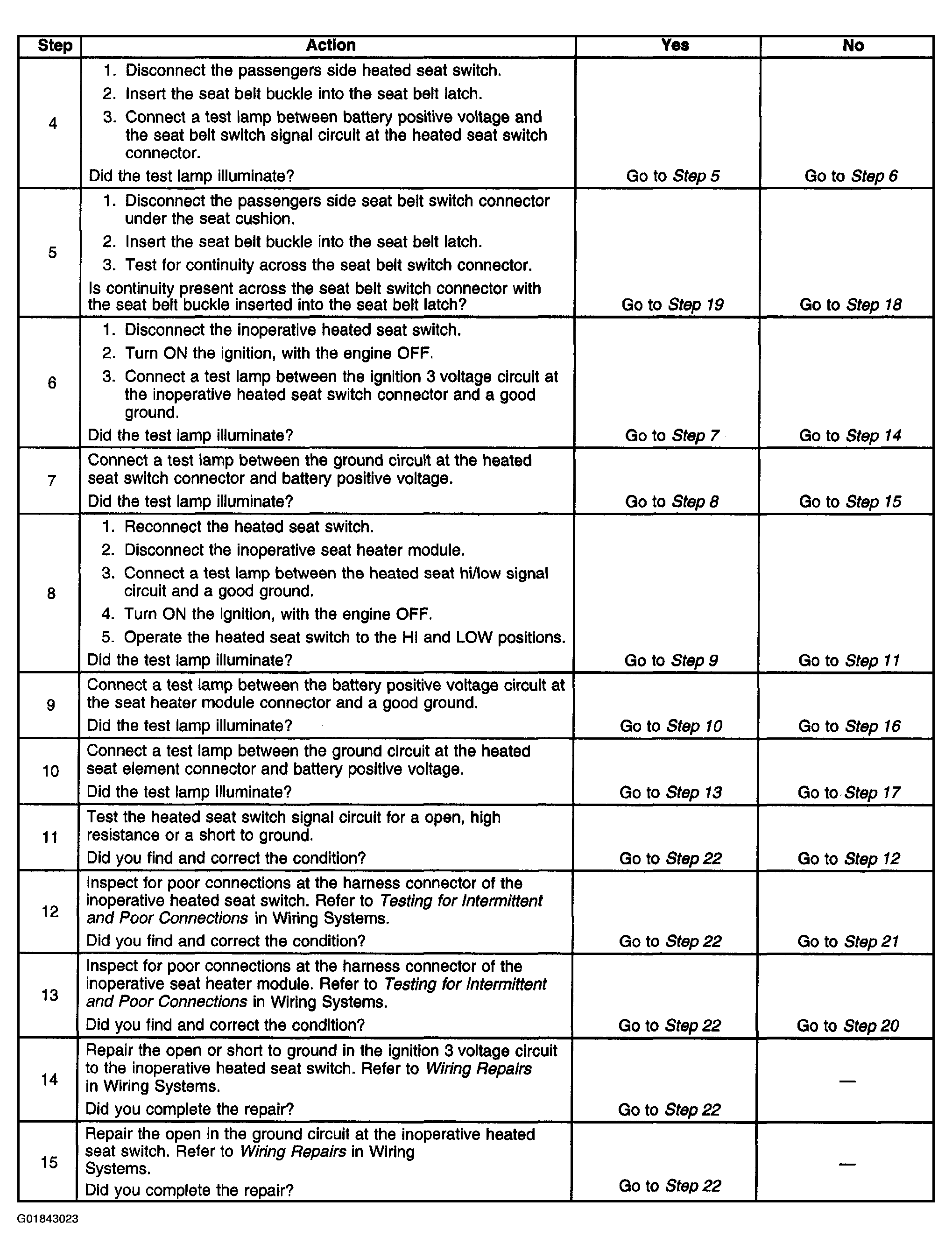

Fig 2: Heated Seat Inoperative Symptom Diagnostic Procedure (Steps 4-15)
G01843023Courtesy of GENERAL MOTORS CORP.

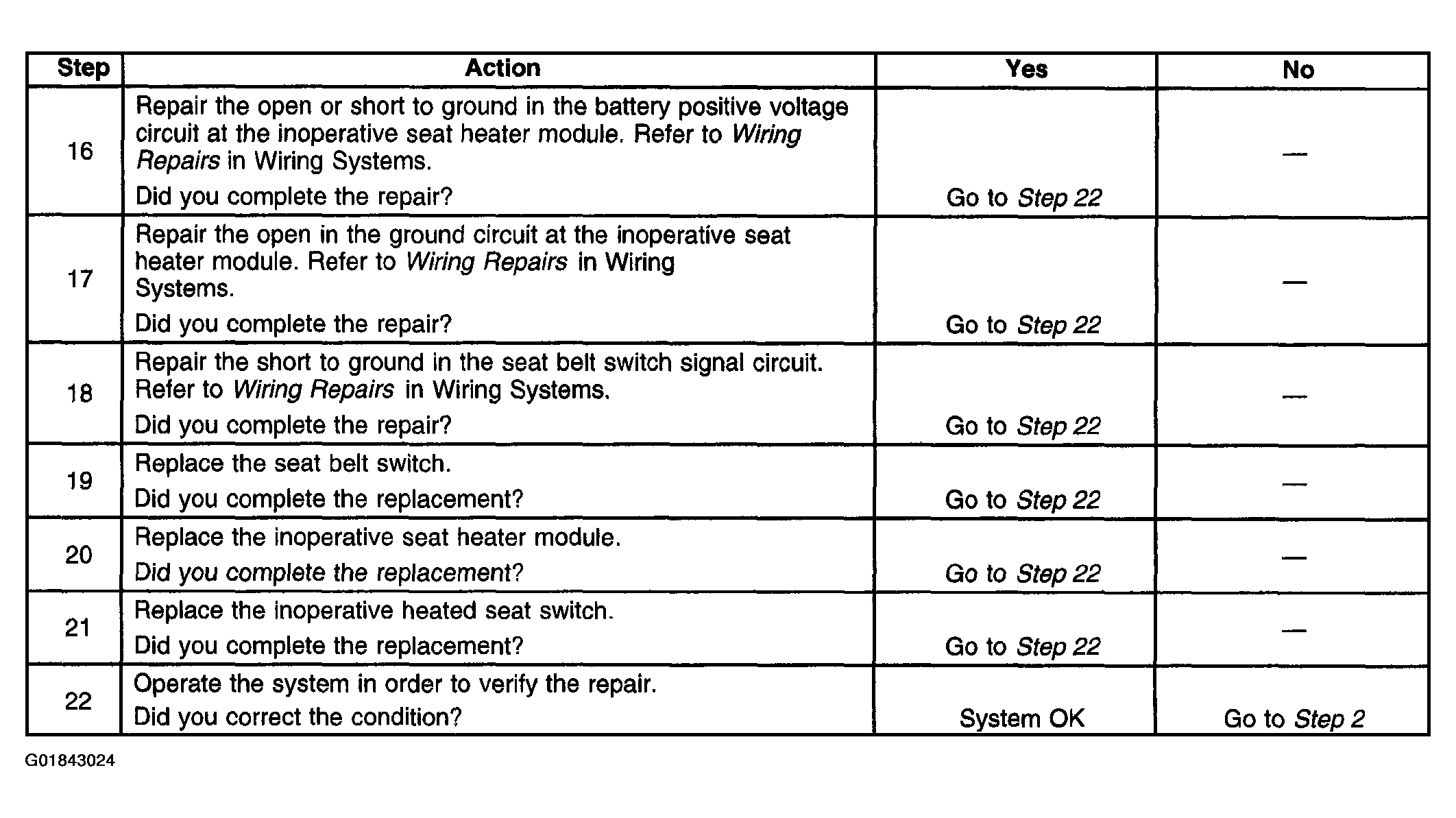

Fig 3: Heated Seat Inoperative Symptom Diagnostic Procedure (Steps 16-22)
G01843024Courtesy of GENERAL MOTORS CORP.
