Heated Seat Always On
Heated Seat Always On

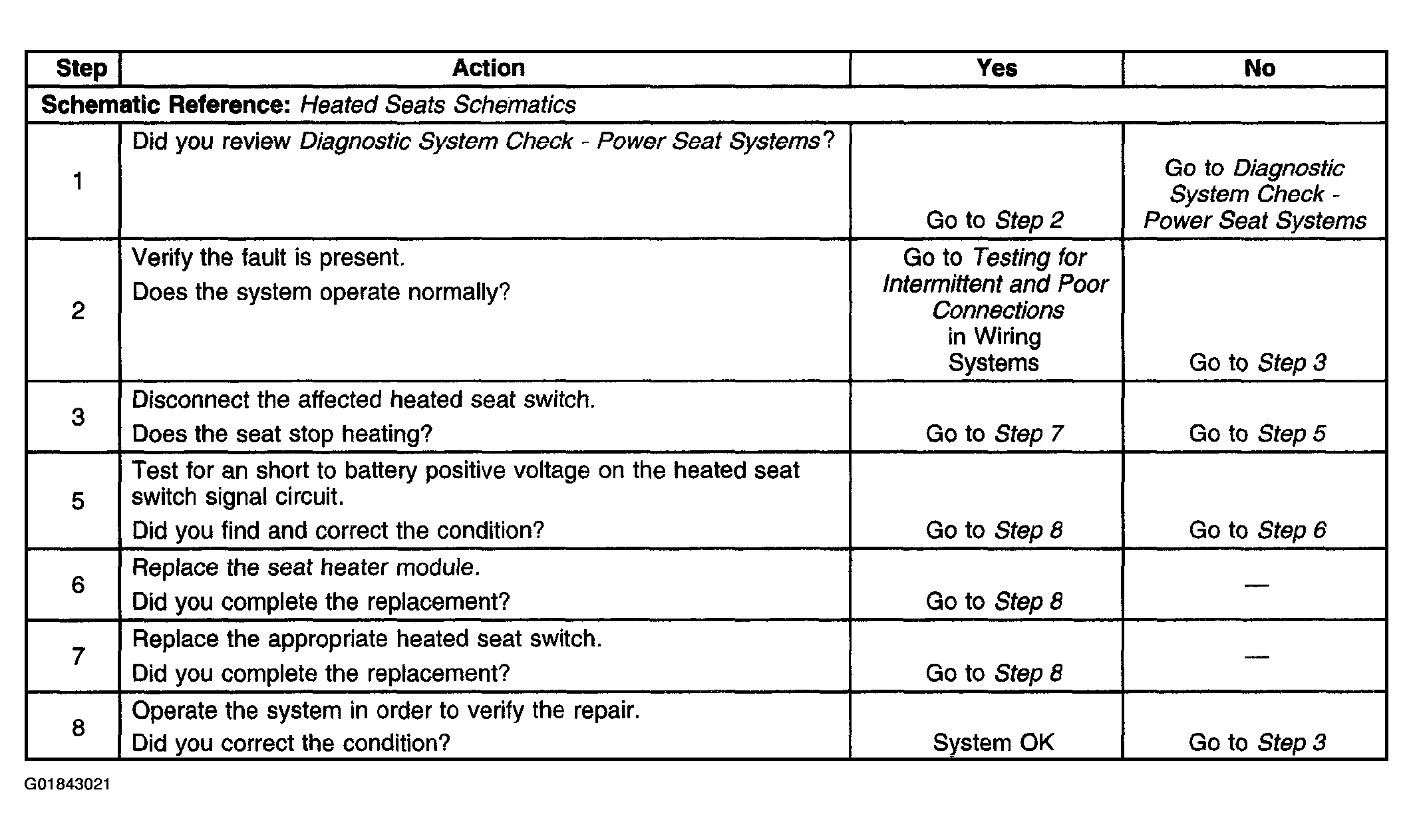

Fig 1: Heated Seat Always On Symptom Diagnostic Procedure (Steps 1-8)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
