Test Description

The numbers below refer to the step numbers on the diagnostic table. See Fig 1.

  1. 2

    Verify that DTC is current or history by monitoring the switch status for which the code is set.
  2. 3

    Tests the seat adjuster switch for an internal fault.

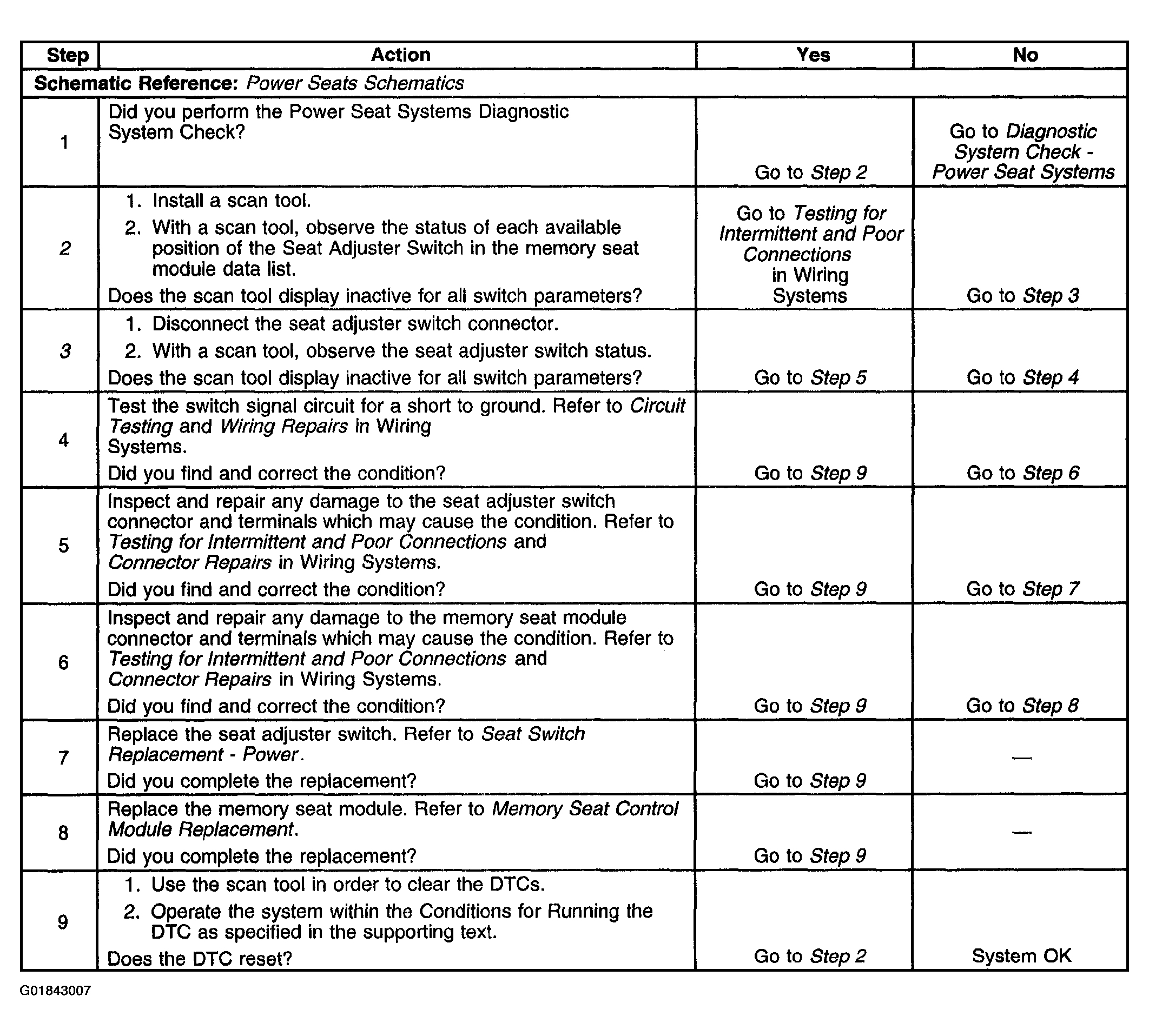

    Fig 1: DTC B3792 Diagnostic Table
    G01843007Courtesy of GENERAL MOTORS CORP.
