Seat Lumbar Switch

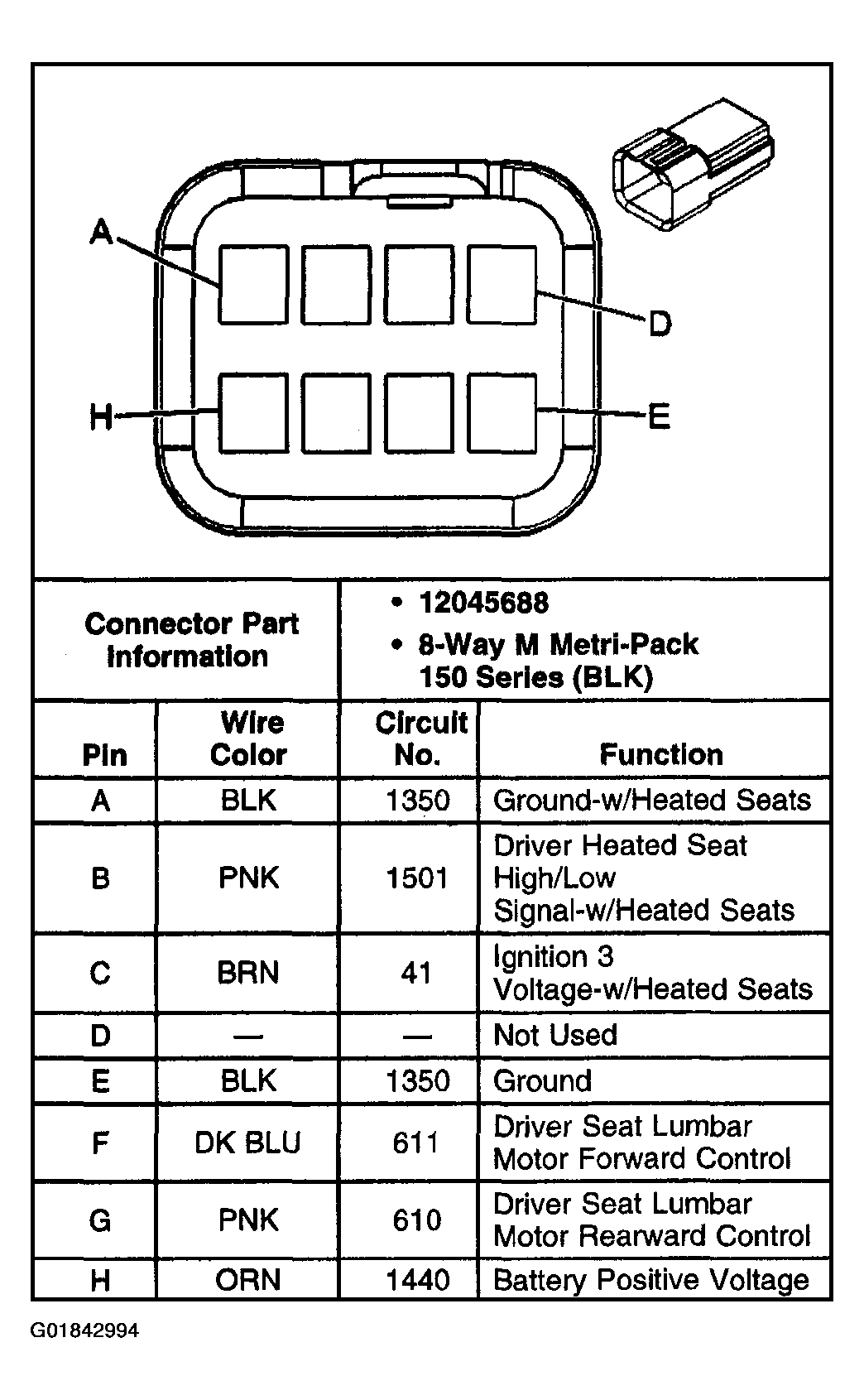

Fig 1: Seat Lumbar Switch - Driver

G01842994

Courtesy of GENERAL MOTORS CORP.

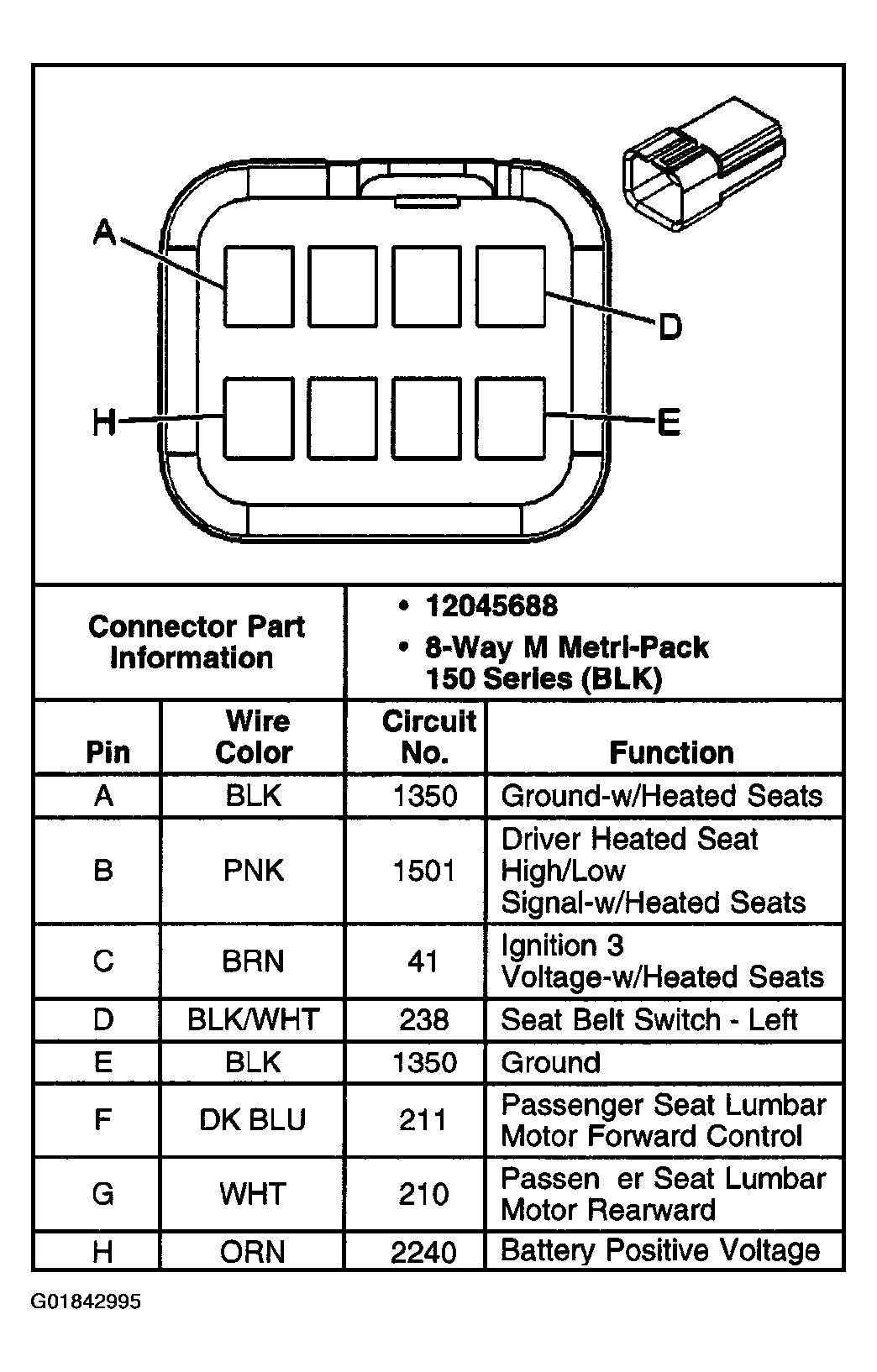

Fig 2: Seat Lumbar Switch - Front Passenger

G01842995

Courtesy of GENERAL MOTORS CORP.
