Seat Horizontal Motor

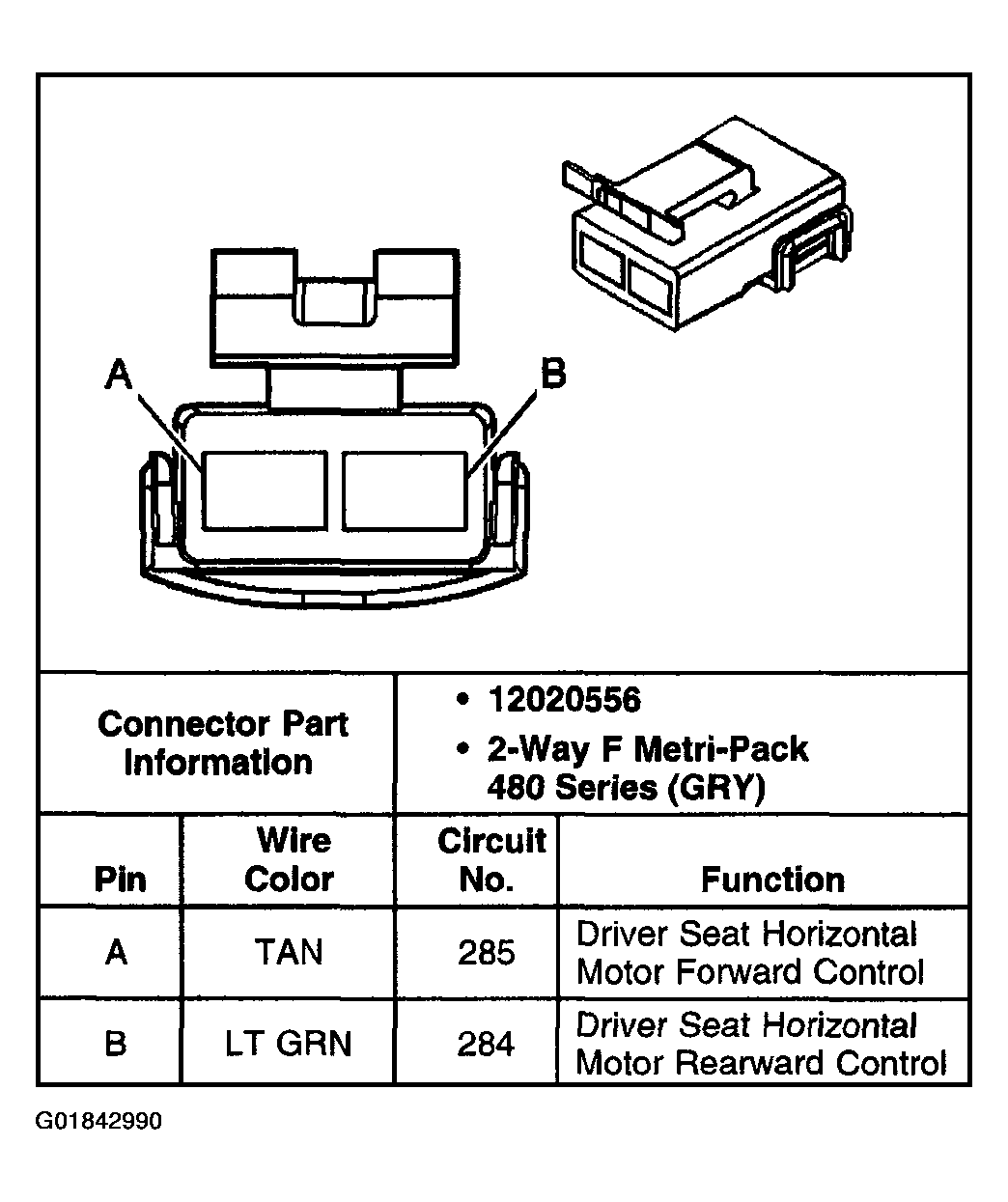

Fig 1: Seat Horizontal Motor - Driver

G01842990

Courtesy of GENERAL MOTORS CORP.

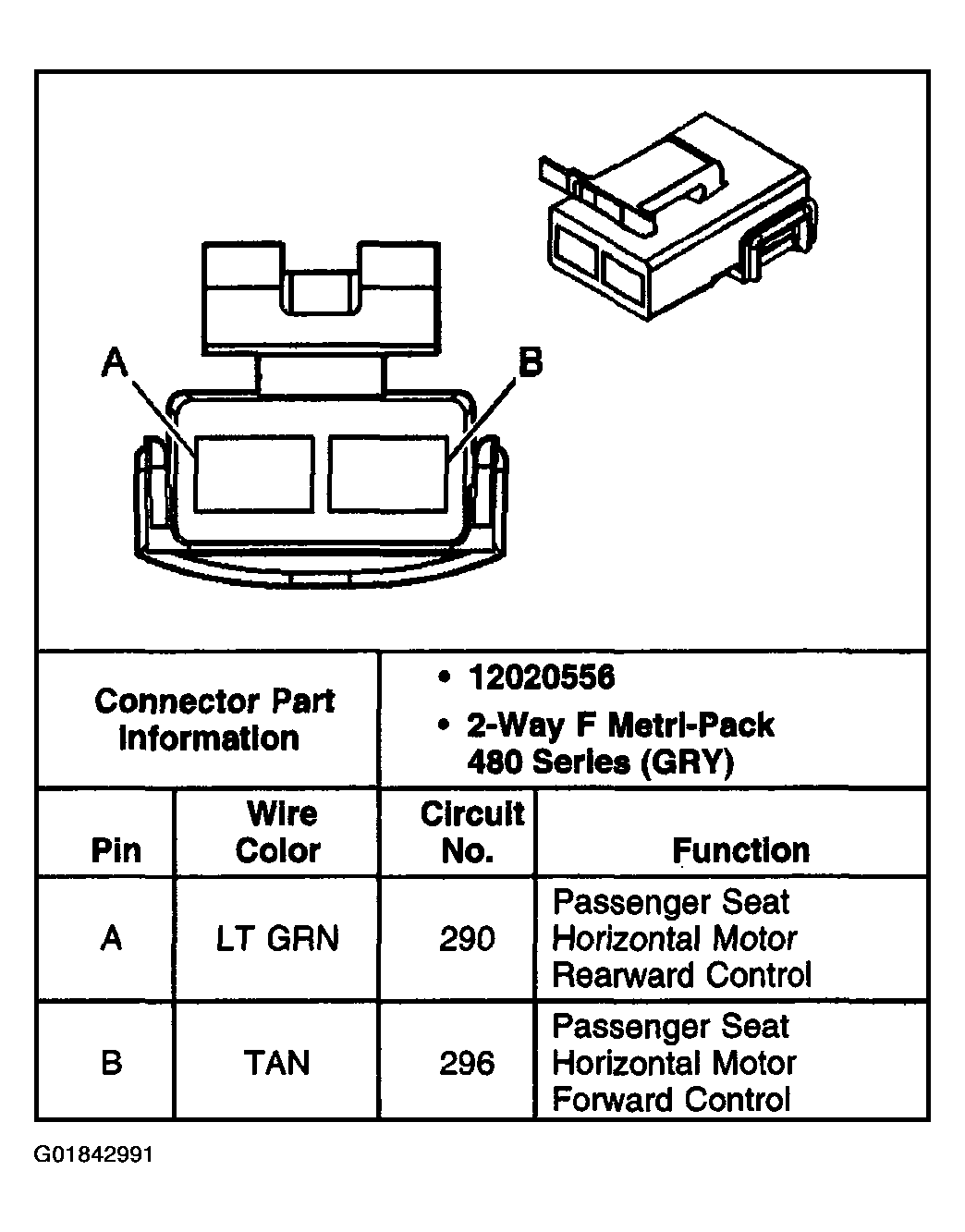

Fig 2: Seat Horizontal Motor - Front Passenger

G01842991

Courtesy of GENERAL MOTORS CORP.
