Seat Front Vertical Motor

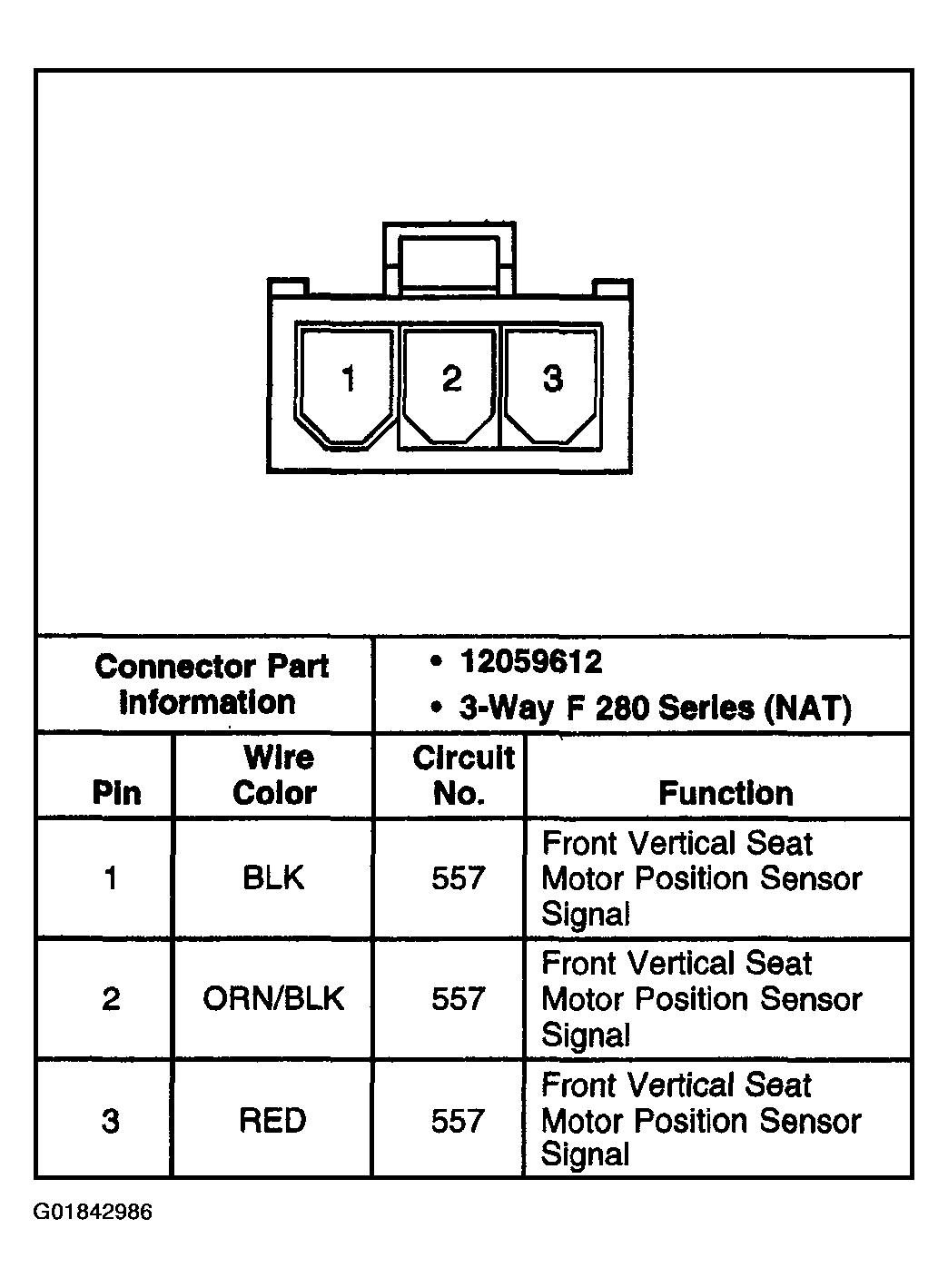

Fig 1: Seat Front Vertical Motor - Memory
G01842986Courtesy of GENERAL MOTORS CORP.

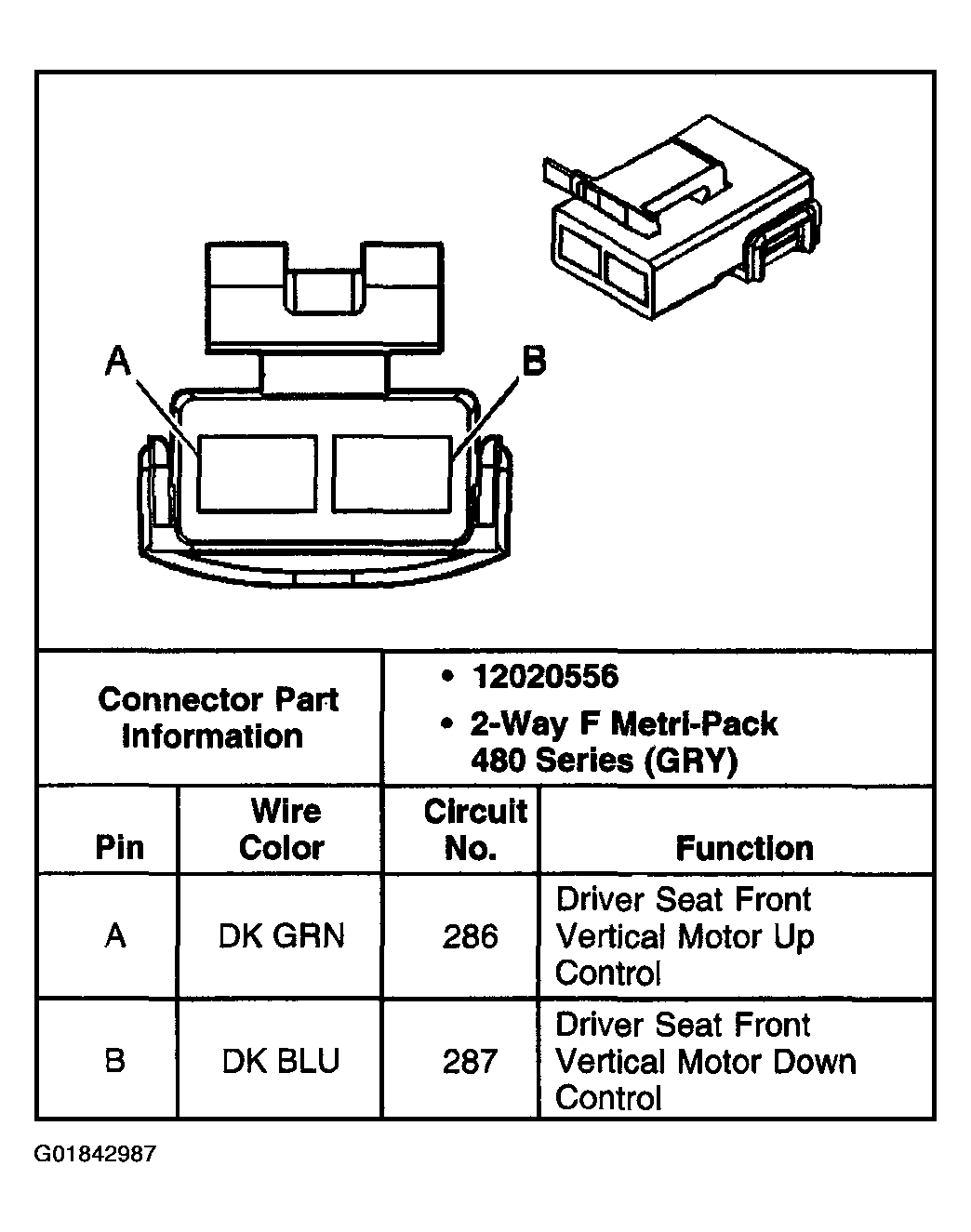

Fig 2: Seat Front Vertical Motor - Driver
G01842987Courtesy of GENERAL MOTORS CORP.
Fig 3: Seat Front Vertical Motor - Front Passenger (w/o Memory)
G01842988Courtesy of GENERAL MOTORS CORP.
