Seat Adjuster Switch

Fig 1: Seat Adjuster Switch - Driver 6-Way
G01842976Courtesy of GENERAL MOTORS CORP.

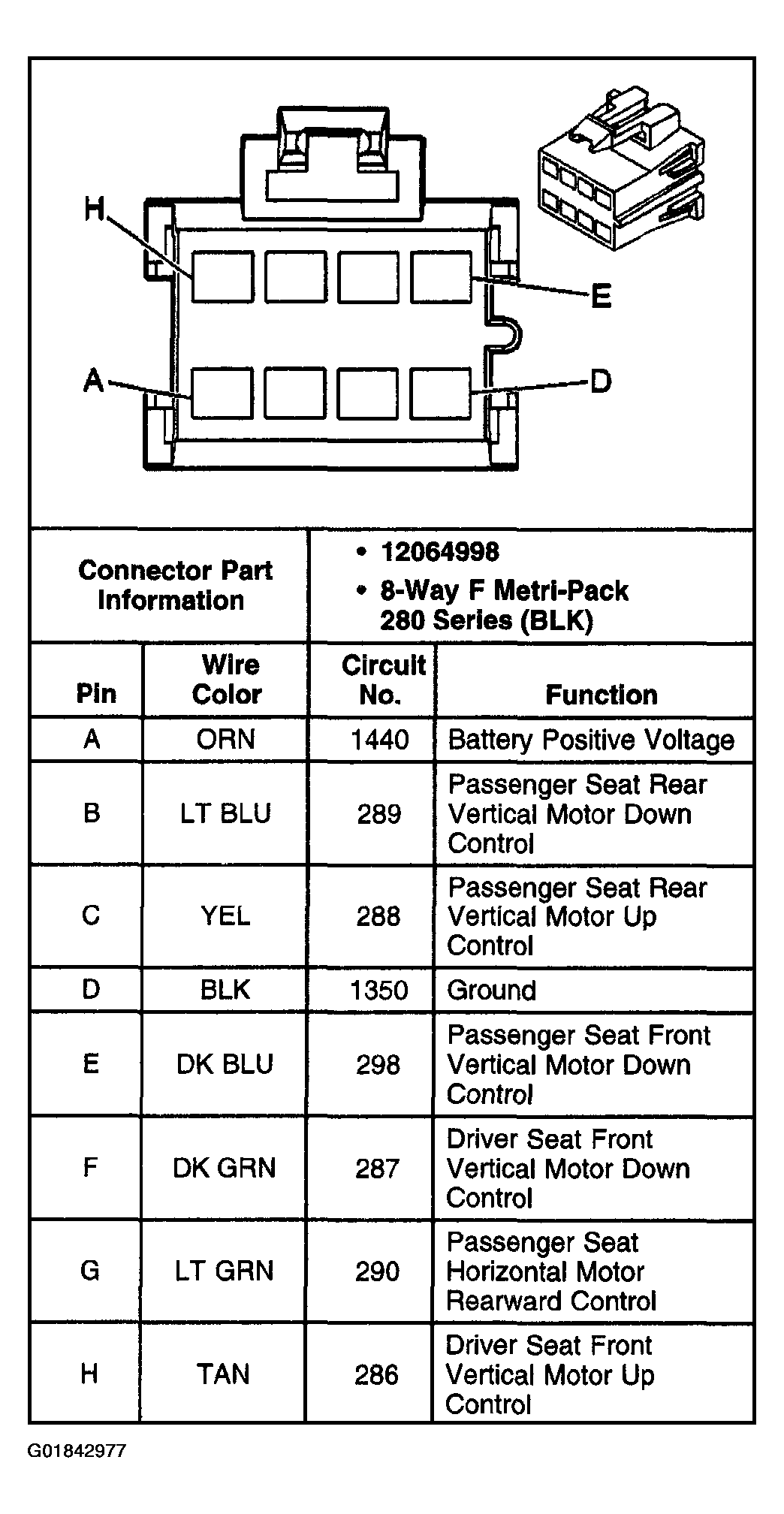

Fig 2: Seat Adjuster Switch - Front Passenger 6-Way
G01842977Courtesy of GENERAL MOTORS CORP.

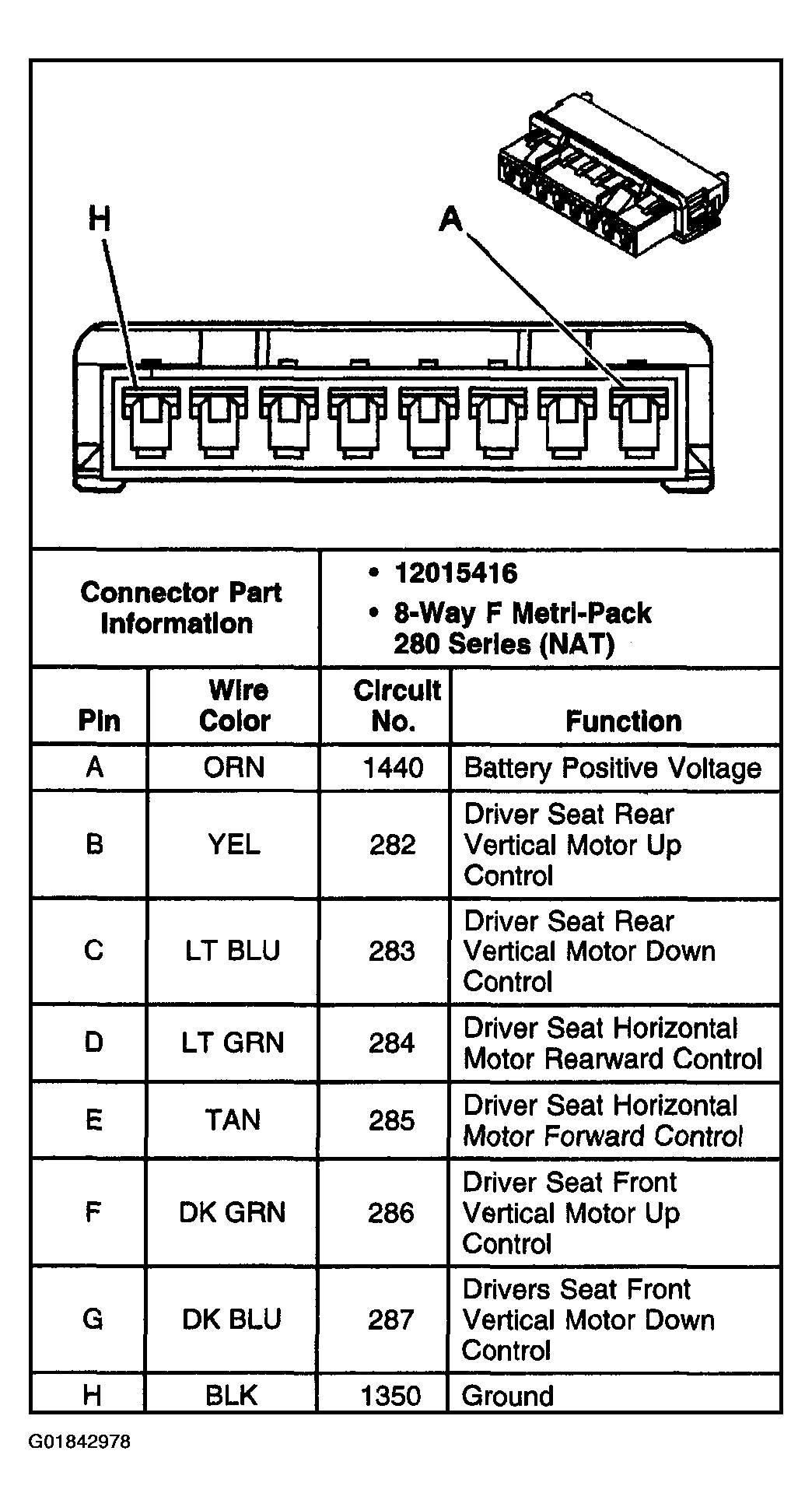

Fig 3: Seat Adjuster Switch - Driver Connector C1 (8-Way Non-Memory)
G01842978Courtesy of GENERAL MOTORS CORP.

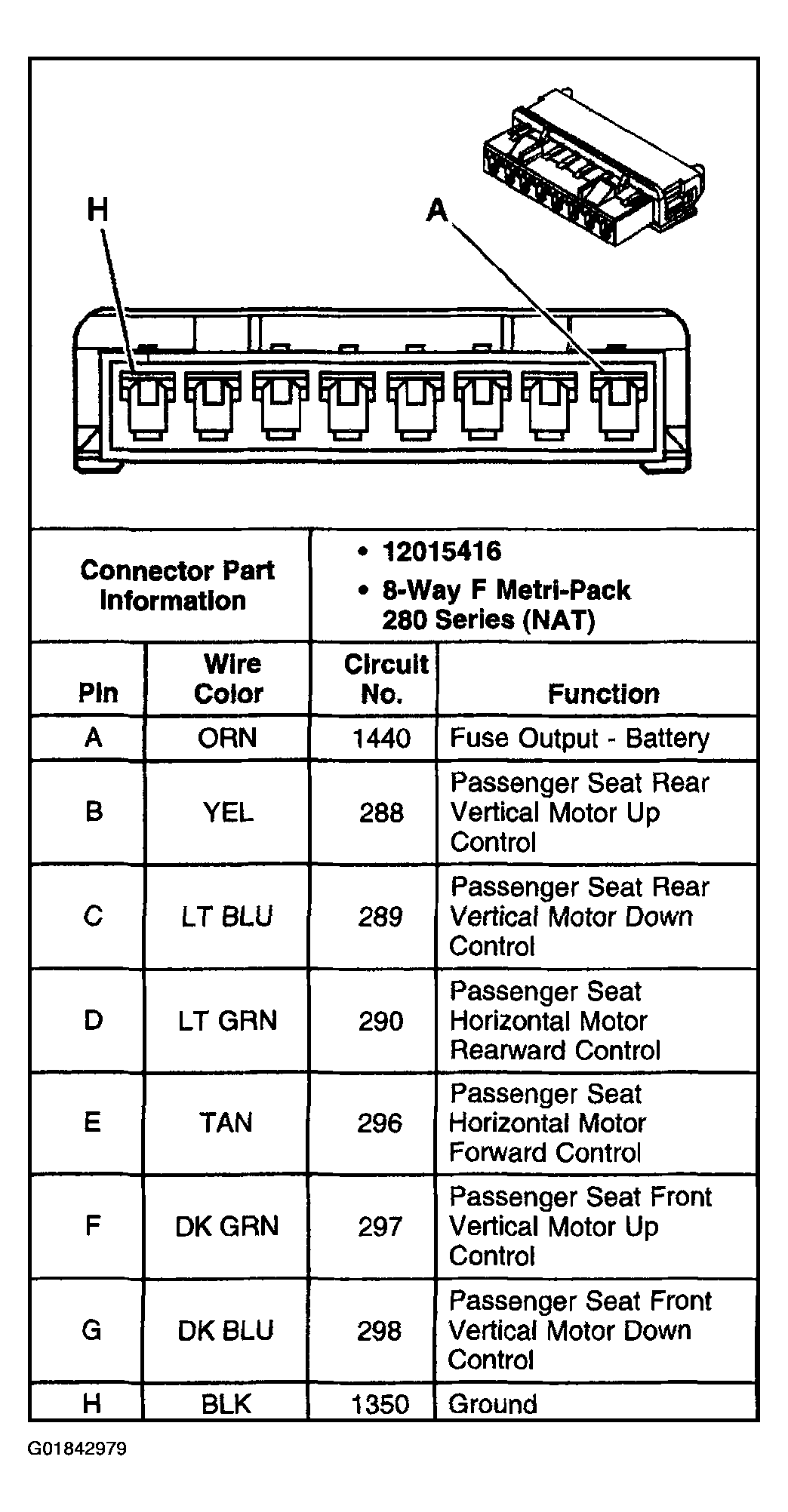

Fig 4: Seat Adjuster Switch - Front Passenger Connector C1 (8-Way Non-Memory)
G01842979Courtesy of GENERAL MOTORS CORP.

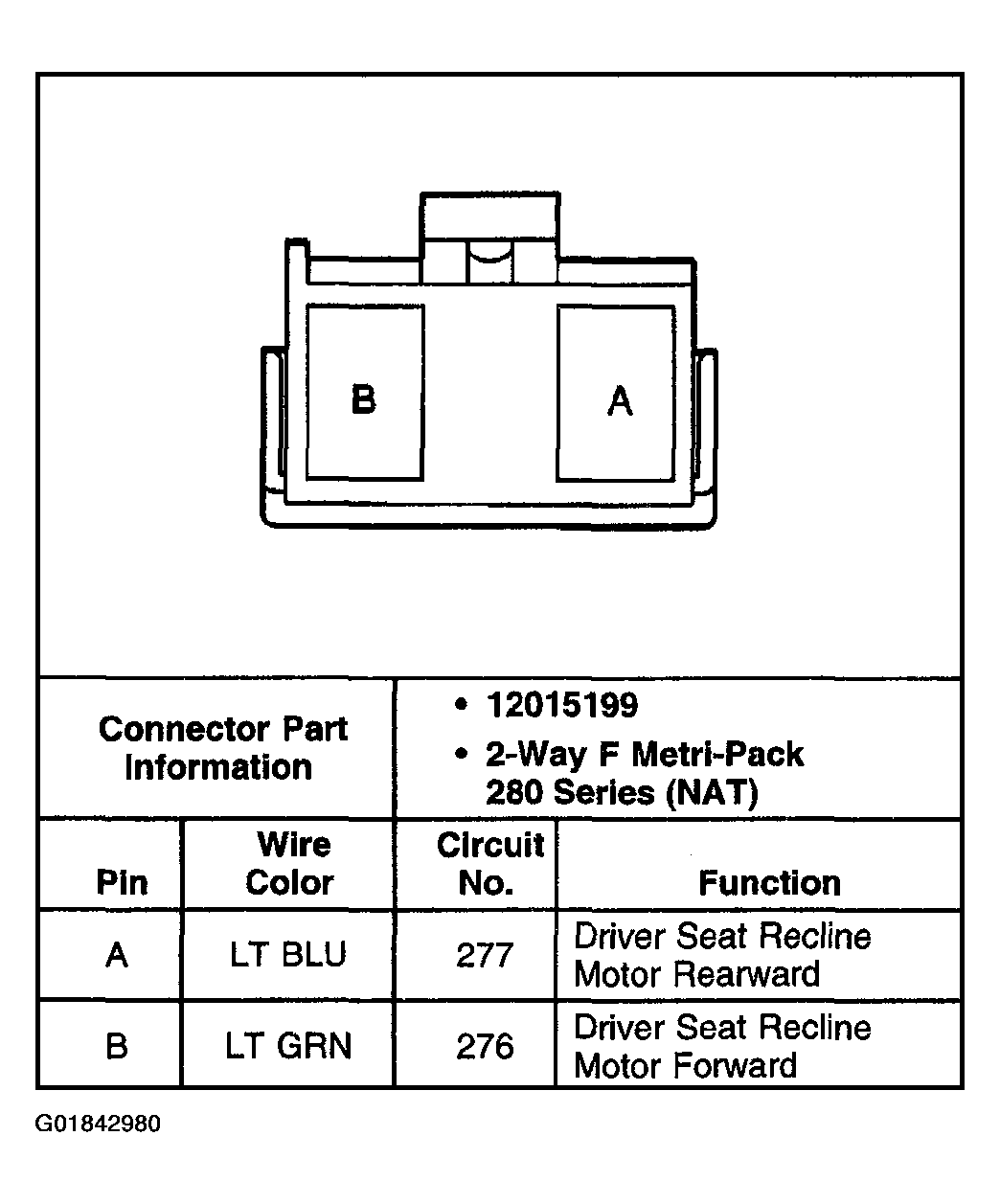

Fig 5: Seat Adjuster Switch - Driver Connector C2 (8-Way Non-Memory)
G01842980Courtesy of GENERAL MOTORS CORP.

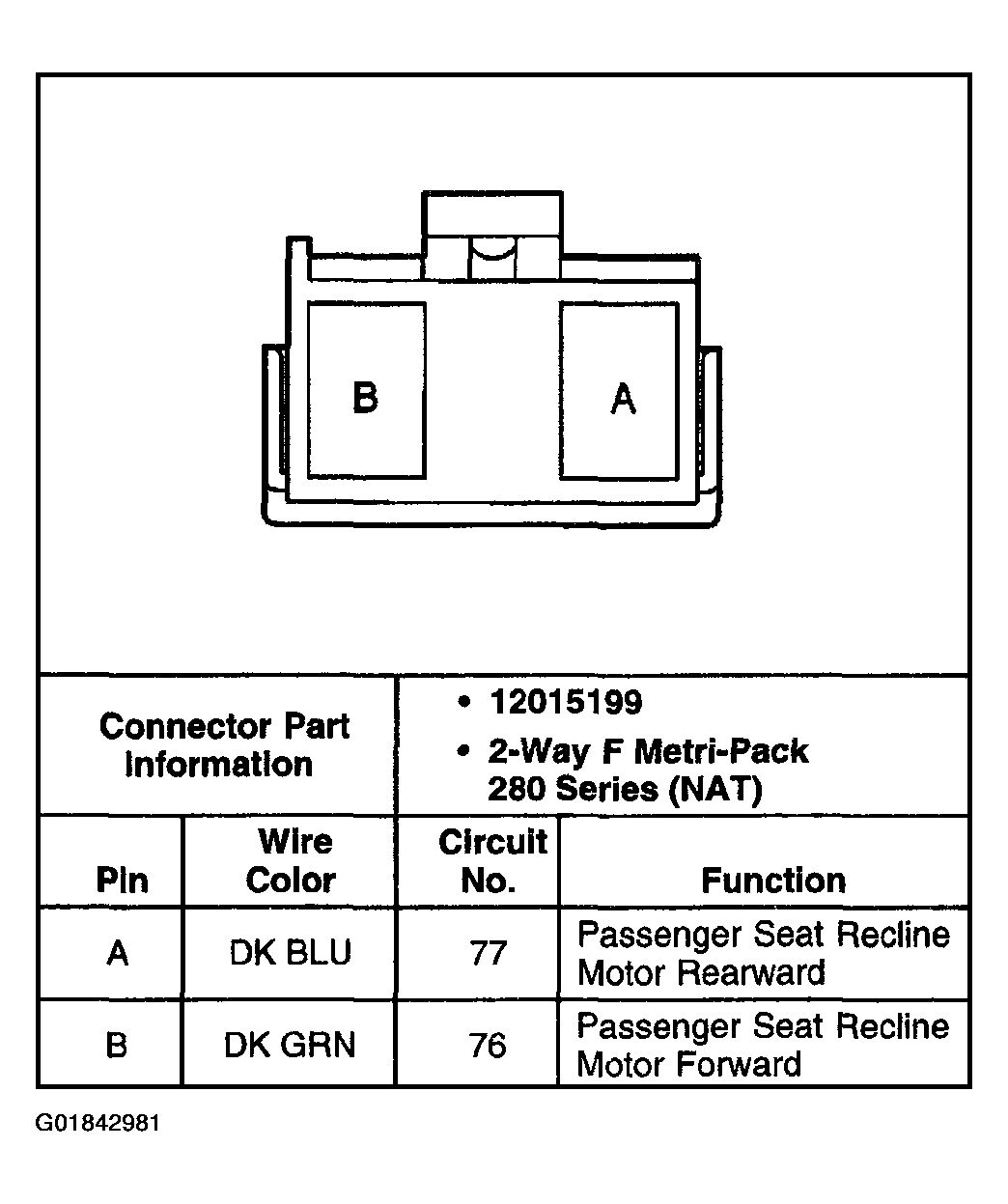

Fig 6: Seat Adjuster Switch - Front Passenger Connector C2 (8-Way Non-Memory)
G01842981Courtesy of GENERAL MOTORS CORP.

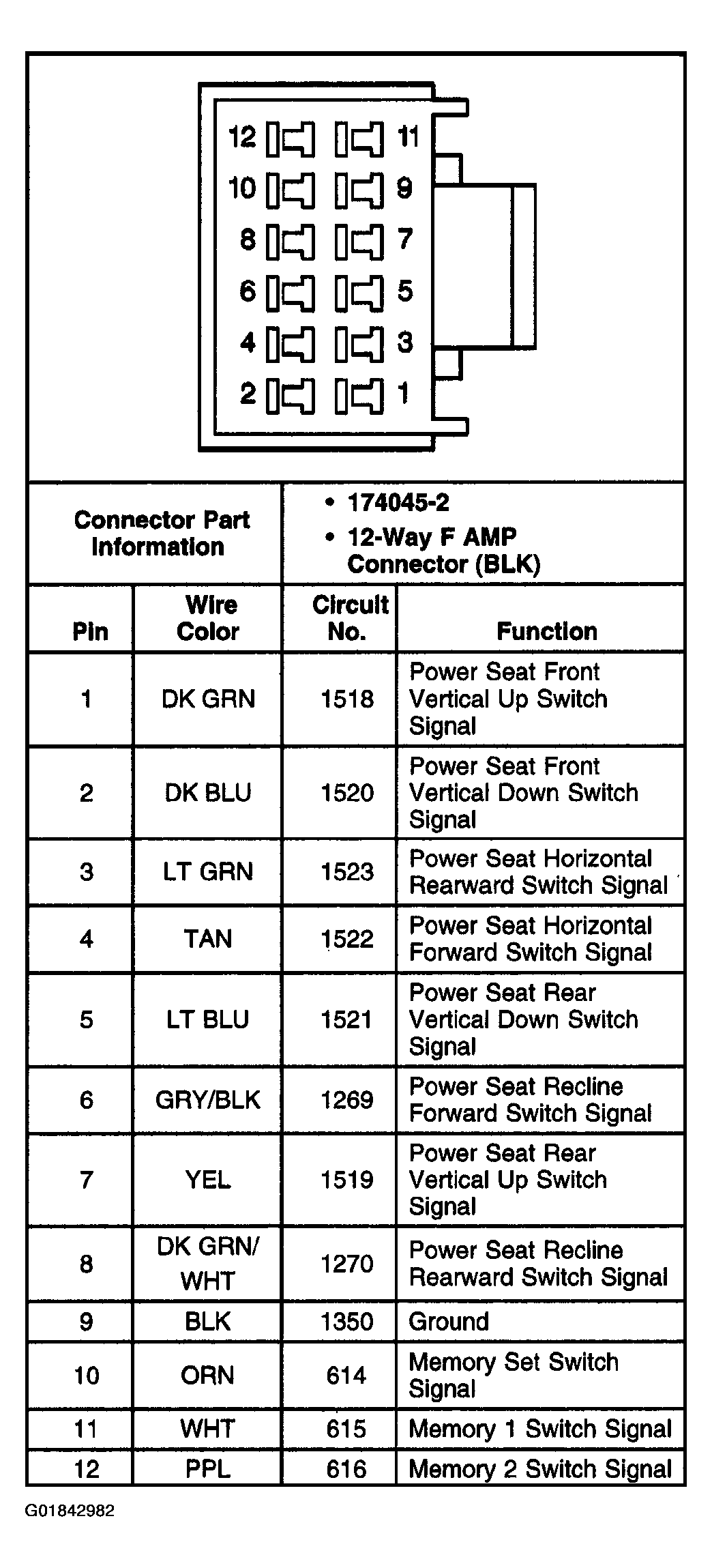

Fig 7: Seat Adjuster Switch - Driver/Front Passenger (w/ Memory Seat)
G01842982Courtesy of GENERAL MOTORS CORP.
