Power Seat Systems Component Views
>>
Seat Motors
Seat Motors

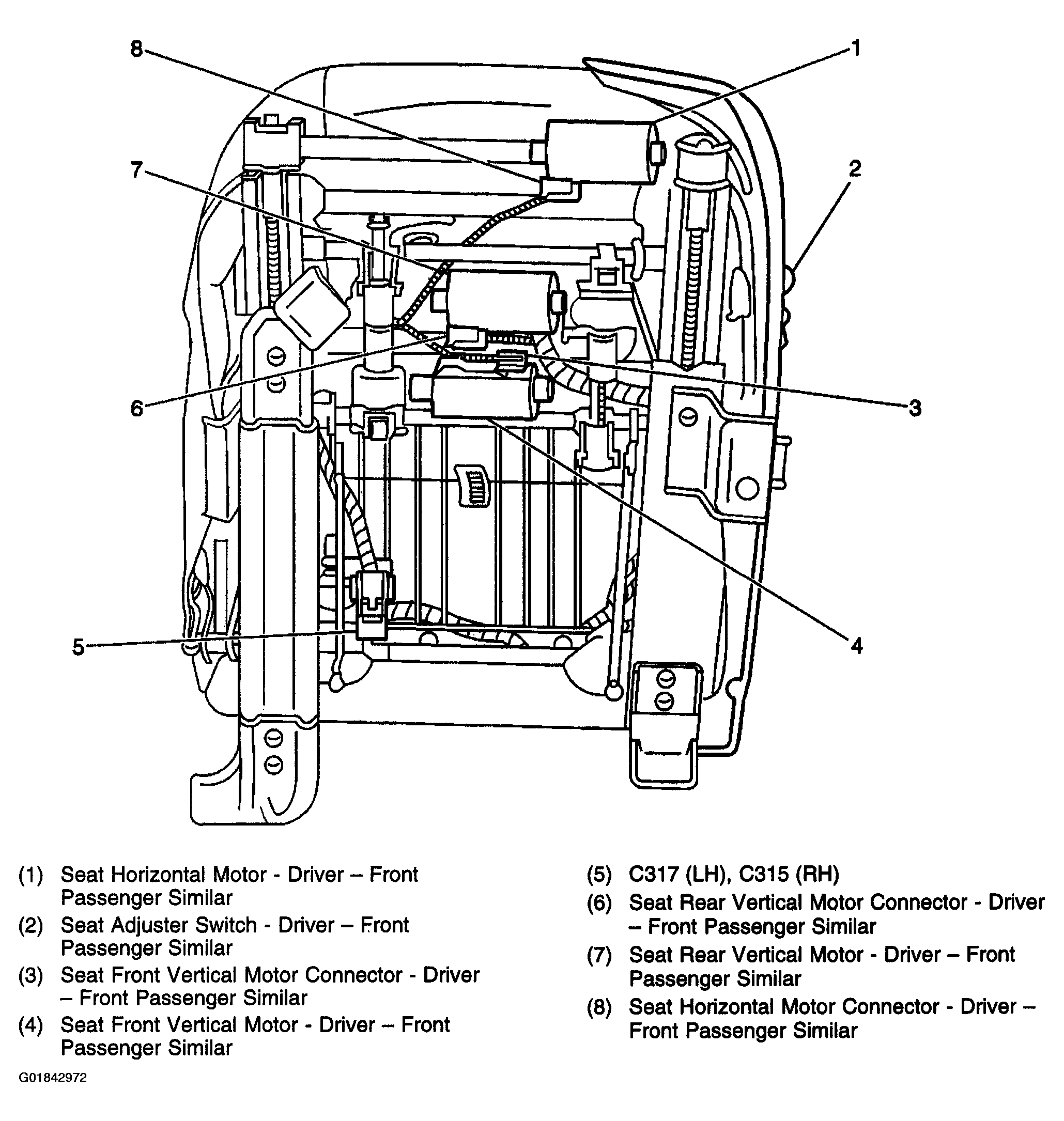

Fig 1: Seat Motors 8-Way (w/o Memory)
Courtesy of GENERAL MOTORS CORP.

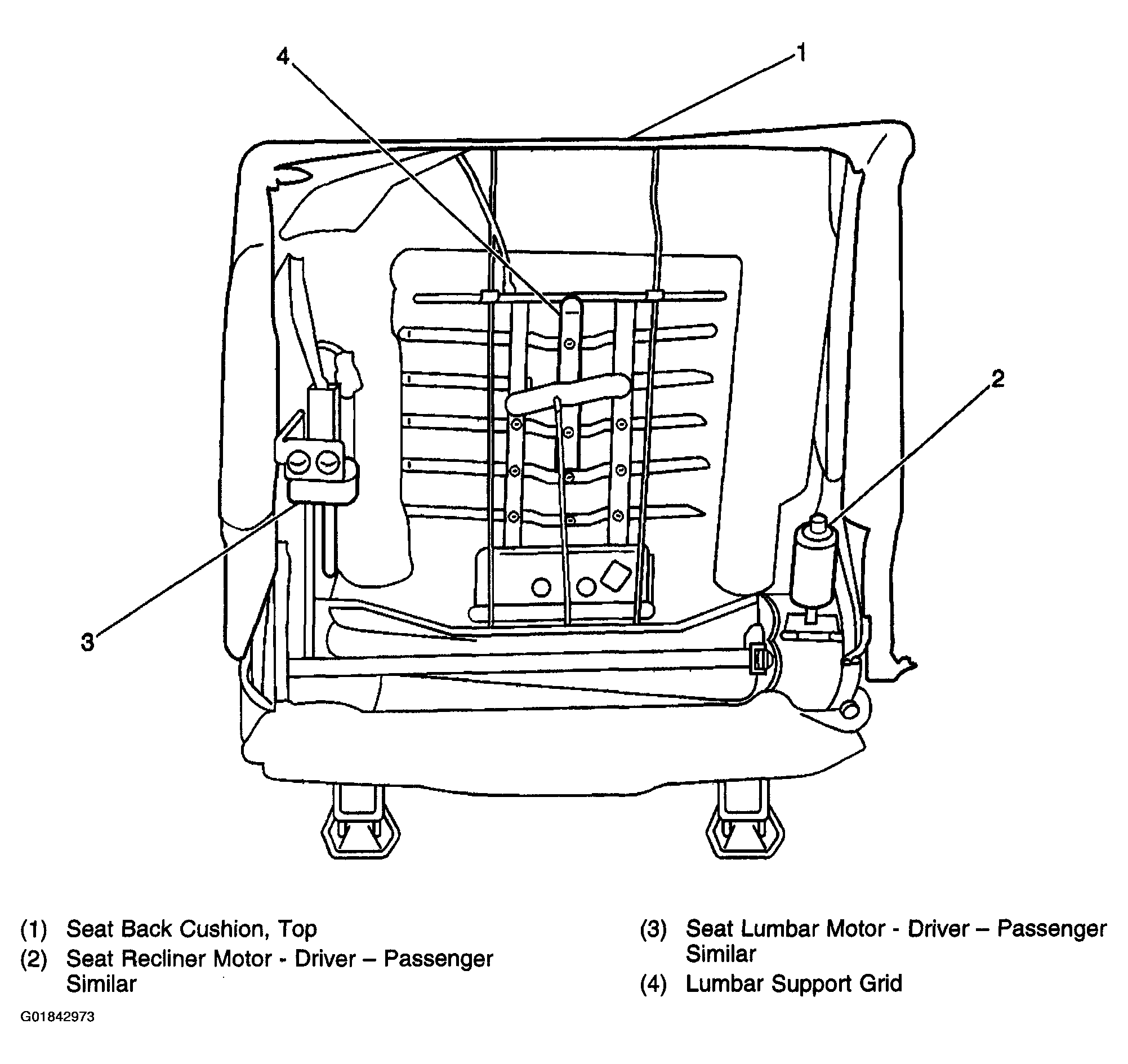

Fig 2: Seat Lumbar Motor & Seat Recliner Motor 8-Way (w/o Memory)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
