Removal Procedure

  1. Remove the left door sill trim plate. Refer to DOOR SILL PLATE REPLACEMENT .
  2. Remove the C-pillar trim panel from the vehicle.

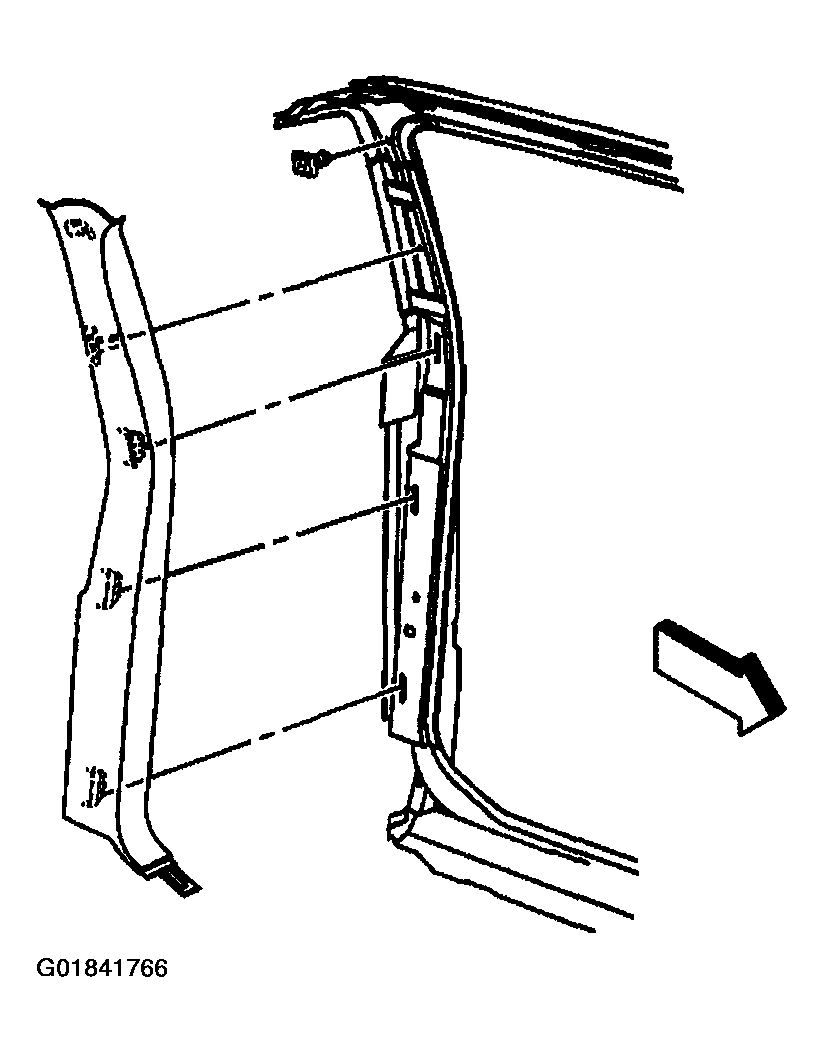

    Fig 1: Locating Third Pillar Trim (Extended Cab Pickup W/ Rear Side Door)
    G01841766Courtesy of GENERAL MOTORS CORP.
