Removal Procedure

  1. Remove the right front door sill trim plate from the vehicle by gently pulling it upward.
  2. Remove the right-side instrument panel sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in INSTRUMENT PANEL, GAGES & CONSOLE article.
  3. Remove the body hinge pillar trim panel.

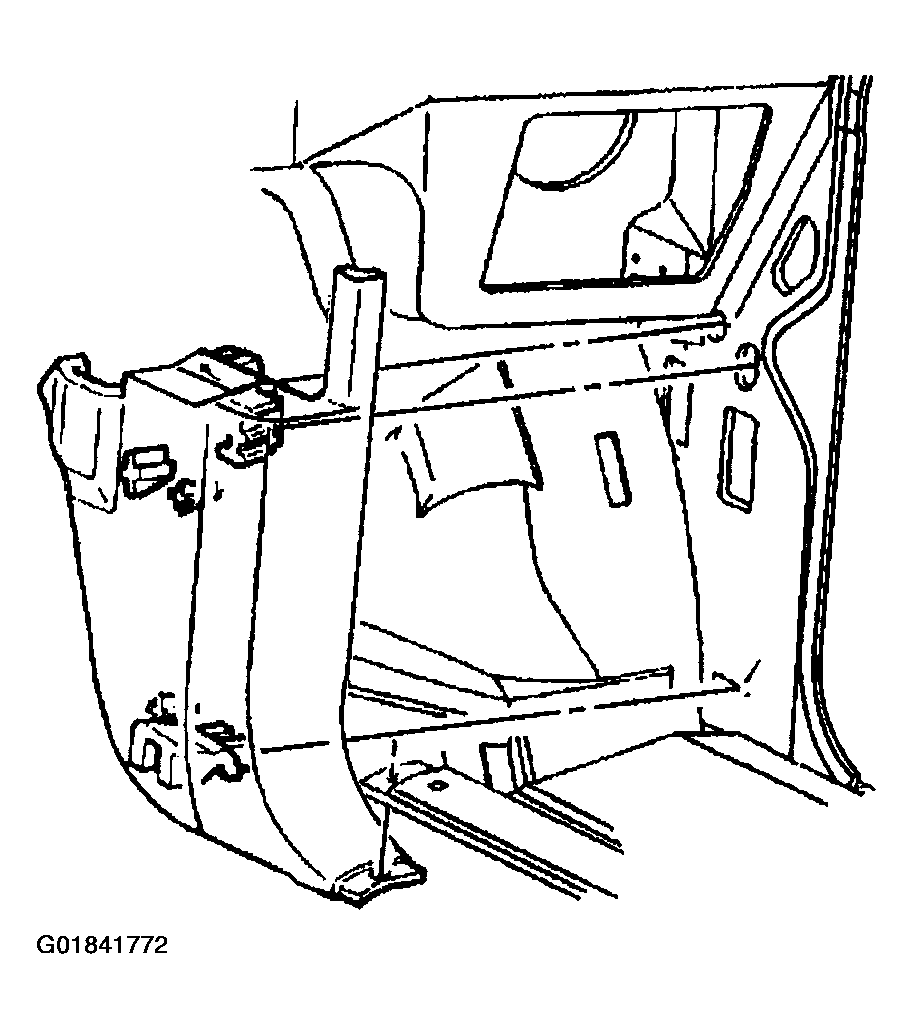

    Fig 1: Locating Right Hinge Pillar Trim Panel
    G01841772Courtesy of GENERAL MOTORS CORP.
