Removal Procedure

  1. Remove the left front door sill trim plate. Refer to DOOR SILL PLATE REPLACEMENT .
  2. Remove the body hinge pillar trim panel from the vehicle.

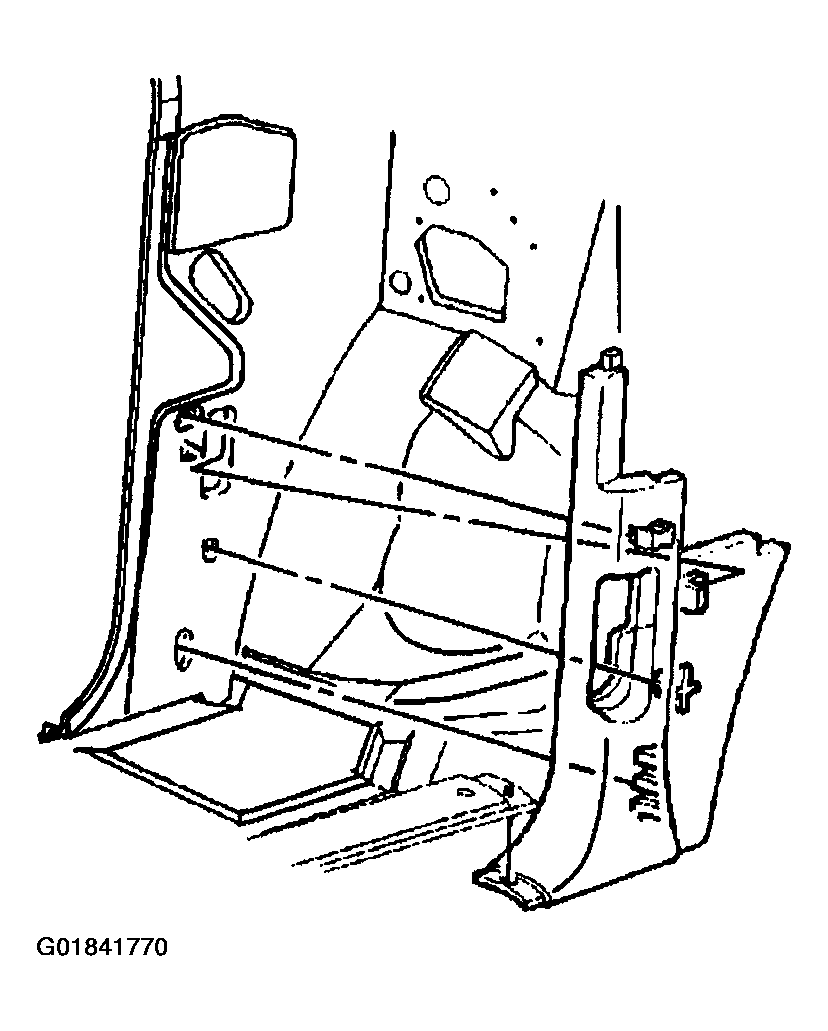

    Fig 1: Locating Left Hinge Pillar Trim Panel
    G01841770Courtesy of GENERAL MOTORS CORP.
