Removal Procedure

  1. Remove the door sill trim plates. Refer to DOOR SILL PLATE REPLACEMENT .
  2. Remove the coat hooks. Refer to COAT HOOK REPLACEMENT (EXTENDED/CREW CAB PICKUP) , COAT HOOK REPLACEMENT (STANDARD CAB PICKUP)  or COAT HOOK REPLACEMENT (UTILITY) .
  3. Remove the upper and the lower seat belt anchor bolts.
  4. Disconnect the electrical connectors, as needed.
  5. Remove the shoulder belt opening trim cover.
  6. Feed the seat belt through the trim cover.
  7. Remove the body side trim panel from the vehicle.

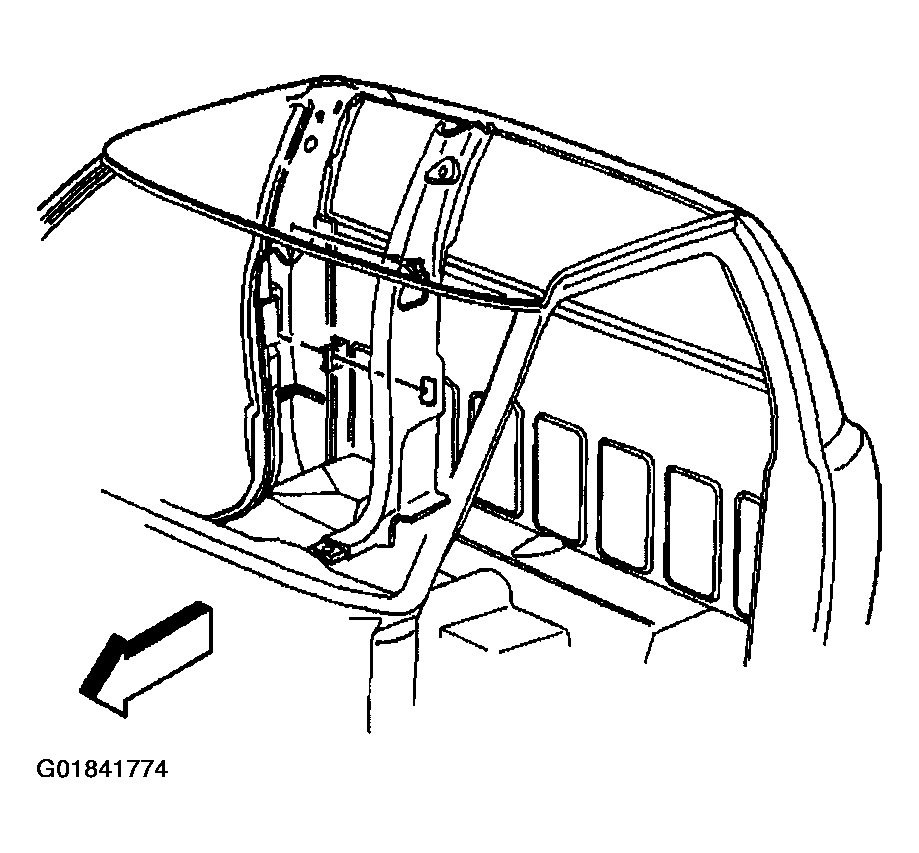

    Fig 1: Locating Body Side Trim Panel (Standard Cab Pickup)
    G01841774Courtesy of GENERAL MOTORS CORP.
