Removal Procedure

  1. Remove the door sill trim plate. Refer to DOOR SILL PLATE REPLACEMENT .
  2. Remove the upper seat belt anchor bolt (3) and the lower seat belt anchor bolt (7).

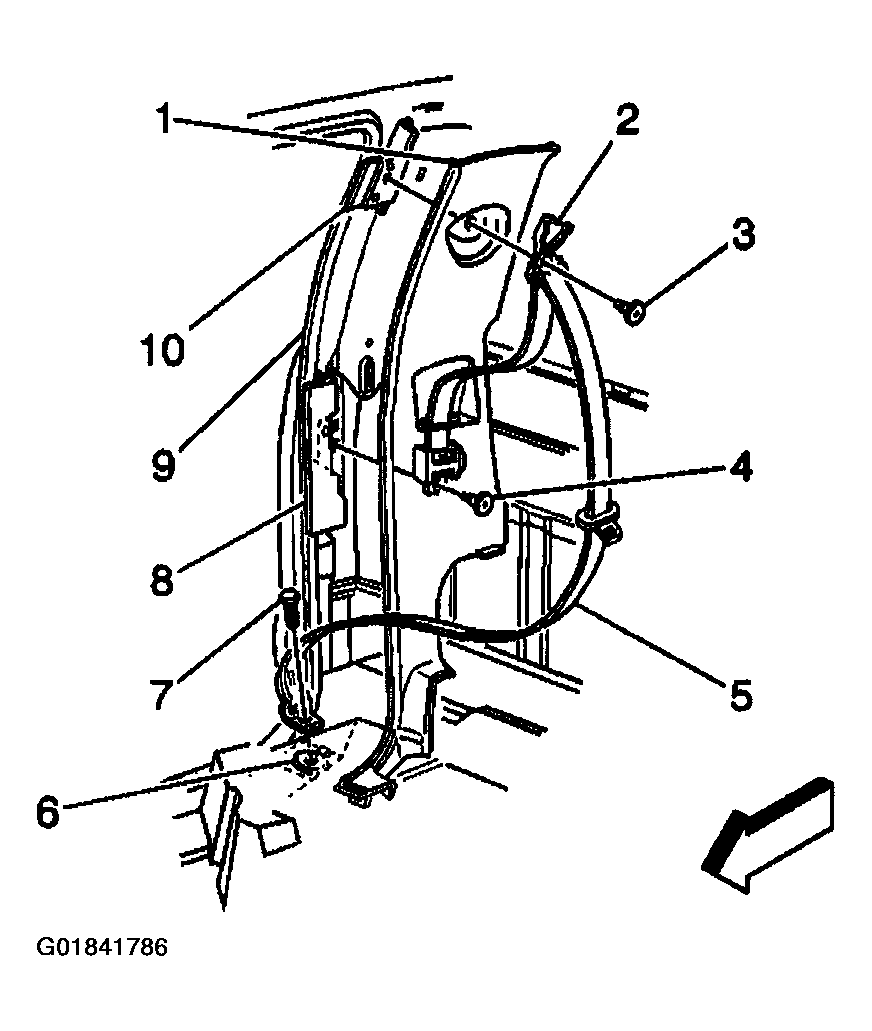

    Fig 1: Locating Upper & Lower Seat Belt Components
    G01841786Courtesy of GENERAL MOTORS CORP.
  3. Using a flat-bladed tool, gently pry the coat hook plug (1) away from the trim panel (2).
  4. Remove the shoulder belt opening trim cover.
  5. Feed the seat belt through the trim cover.
  6. Remove the body side trim panel from the vehicle.

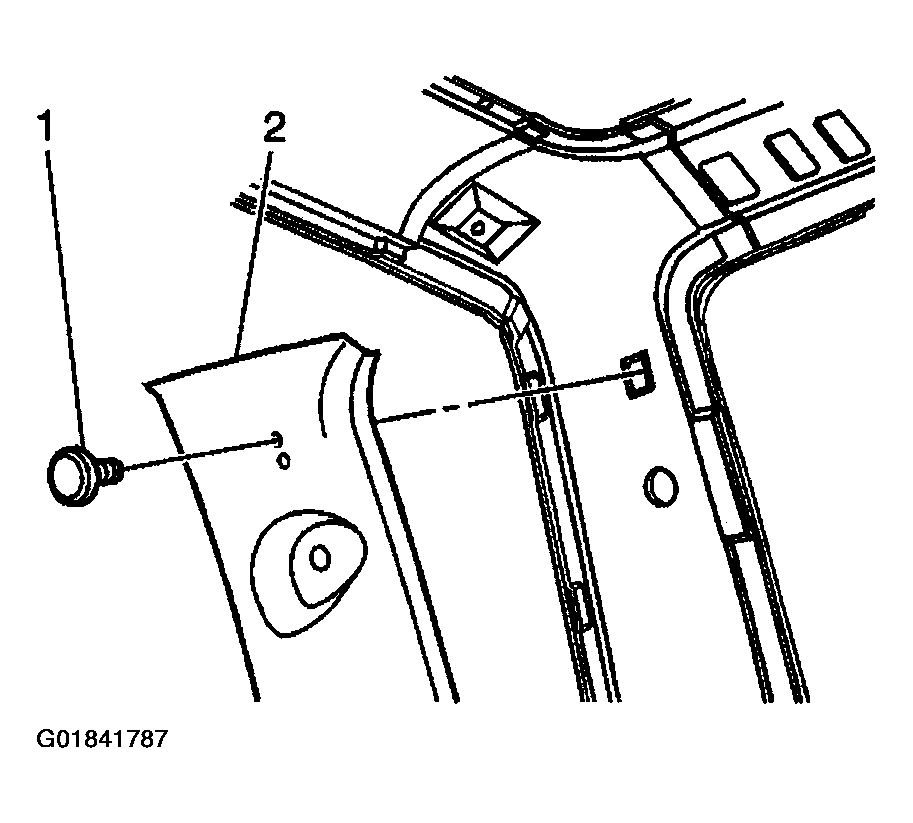

    Fig 2: Locating Coat Hook Plug & Trim Panel
    G01841787Courtesy of GENERAL MOTORS CORP.
