Removal Procedure

  1. Remove the upper and lower rear seat belt anchor bolts.
  2. Remove the endgate or the liftgate opening door sill trim plate. Refer to DOOR SILL PLATE REPLACEMENT - END GATE  or DOOR SILL PLATE REPLACEMENT - LIFT GATE .
  3. Remove the jack storage cover (driver side only).
  4. Remove the screws that retain the body side trim panel to the vehicle (driver side only).
  5. Remove the spare tire and the carrier assembly (if equipped).
  6. Remove the left and right body side trim panel from the vehicle.

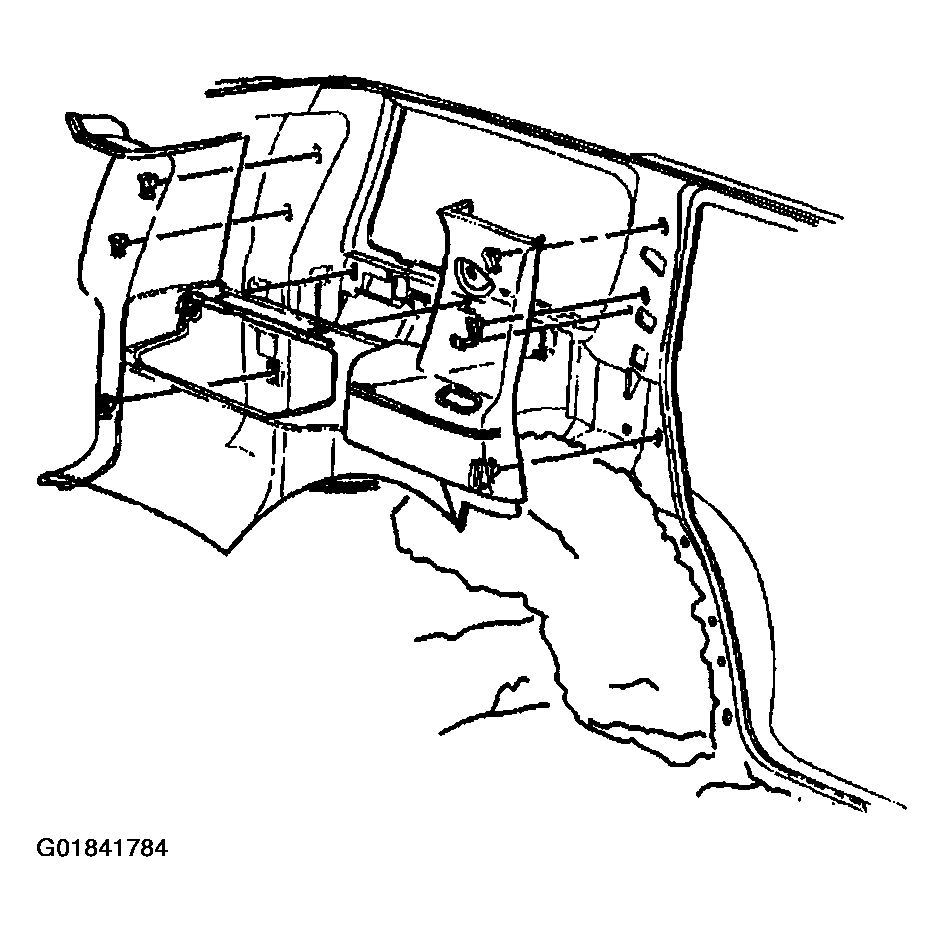

    Fig 1: Locating Body Side Trim Panel (4-Door Utility)
    G01841784Courtesy of GENERAL MOTORS CORP.
  7. Feed the seat belt through the trim panel.
