Removal Procedure

  1. Remove the screws that retain the sunshade to the roof.

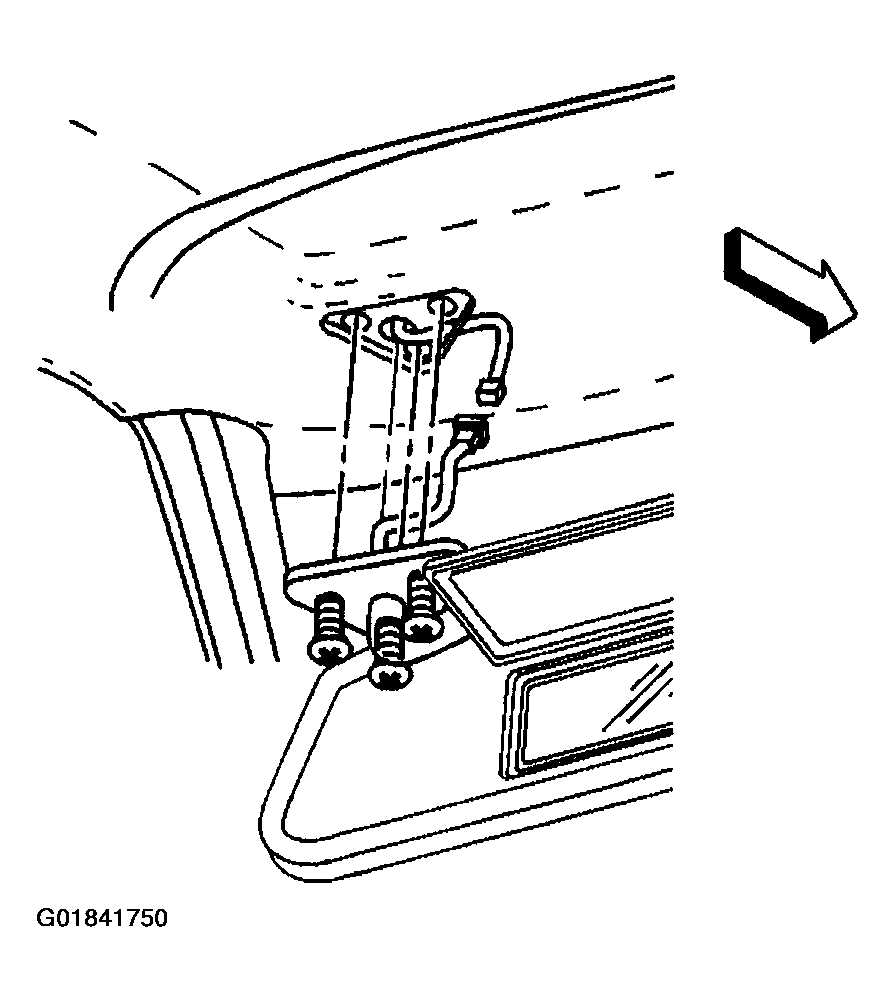

    Fig 1: Locating Sunshade-To-Roof Retaining Screws & Electrical Connector
    G01841750Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connections, if equipped.
  3. Remove the screw that retains the sunshade retainer to the roof.

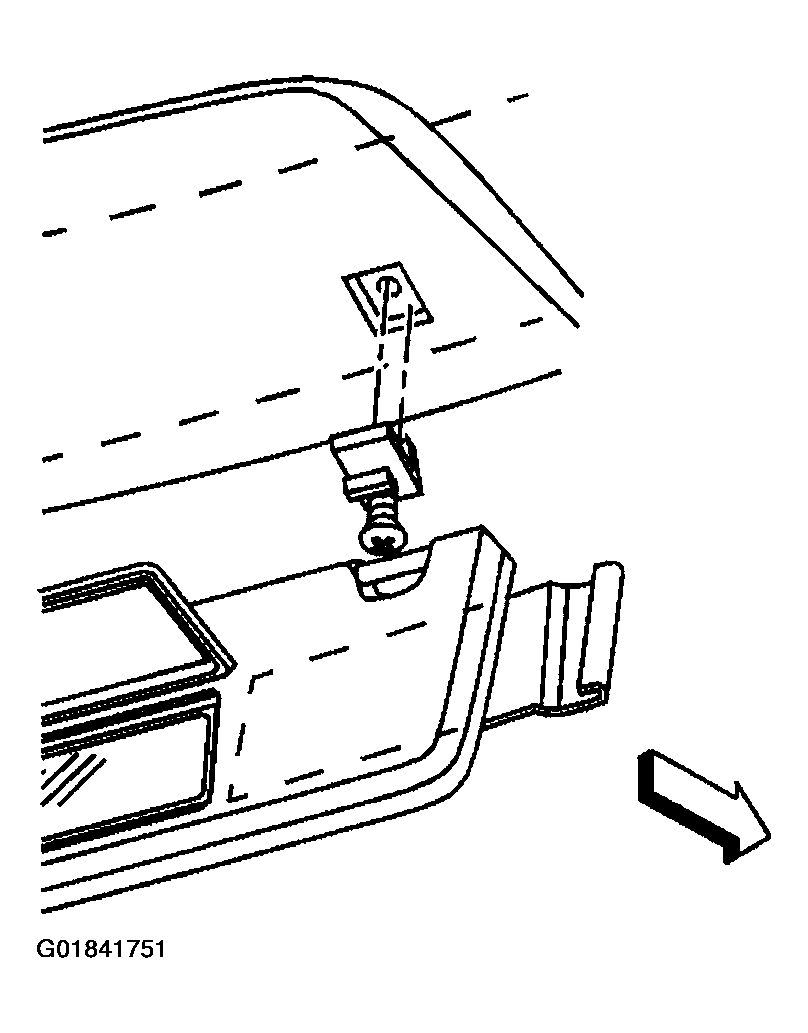

    Fig 2: Locating Sunshade-To-Roof Retaining Screws
    G01841751Courtesy of GENERAL MOTORS CORP.
  4. Remove the sunshade from the vehicle.

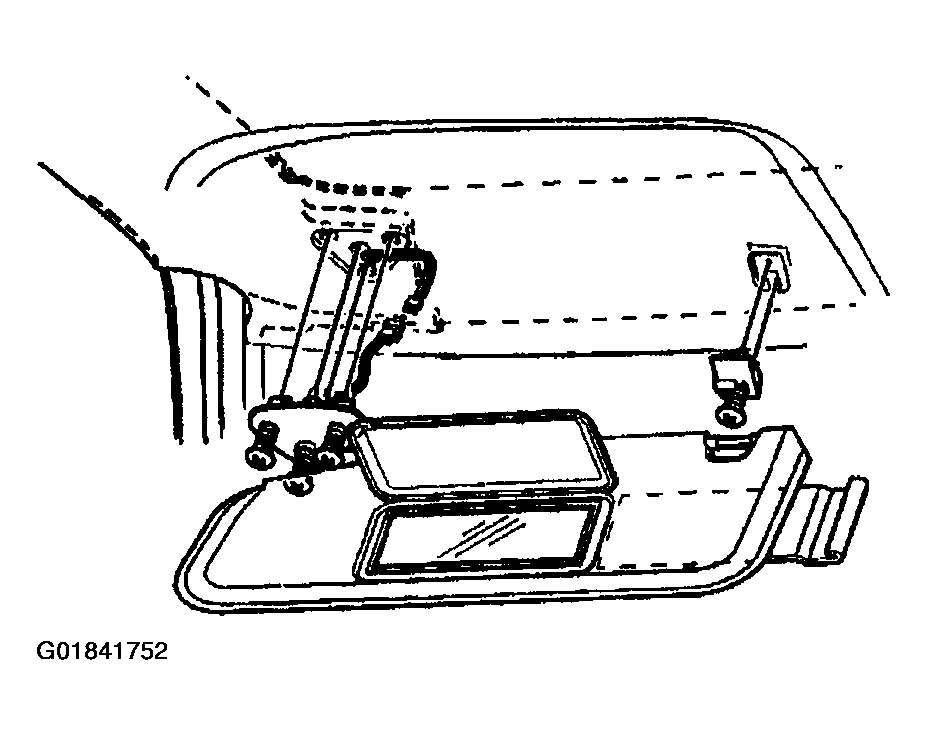

    Fig 3: Locating Sunshade Components
    G01841752Courtesy of GENERAL MOTORS CORP.
