Removal Procedure

Use the J 38778  in order to remove the windshield garnish molding from the windshield pillar. Pull the molding away from the pillar and then up.

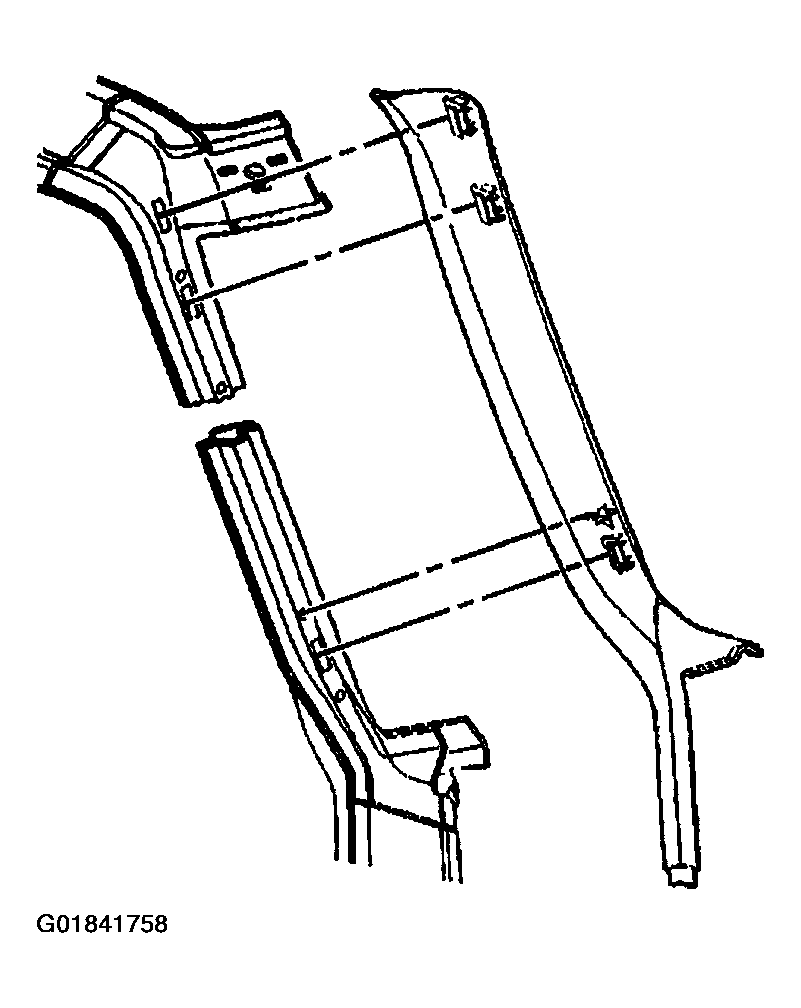

Fig 1: Identifying Windshield Pillar Garnish Molding

Courtesy of GENERAL MOTORS CORP.
