Removal Procedure

  1. Remove the front and rear door sill trim plates. Refer to DOOR SILL PLATE REPLACEMENT .
  2. Remove the upper and lower front seat belt anchor bolts.
  3. Remove the front side door lock pillar garnish molding from the vehicle. Feed the seat belt through the garnish molding.

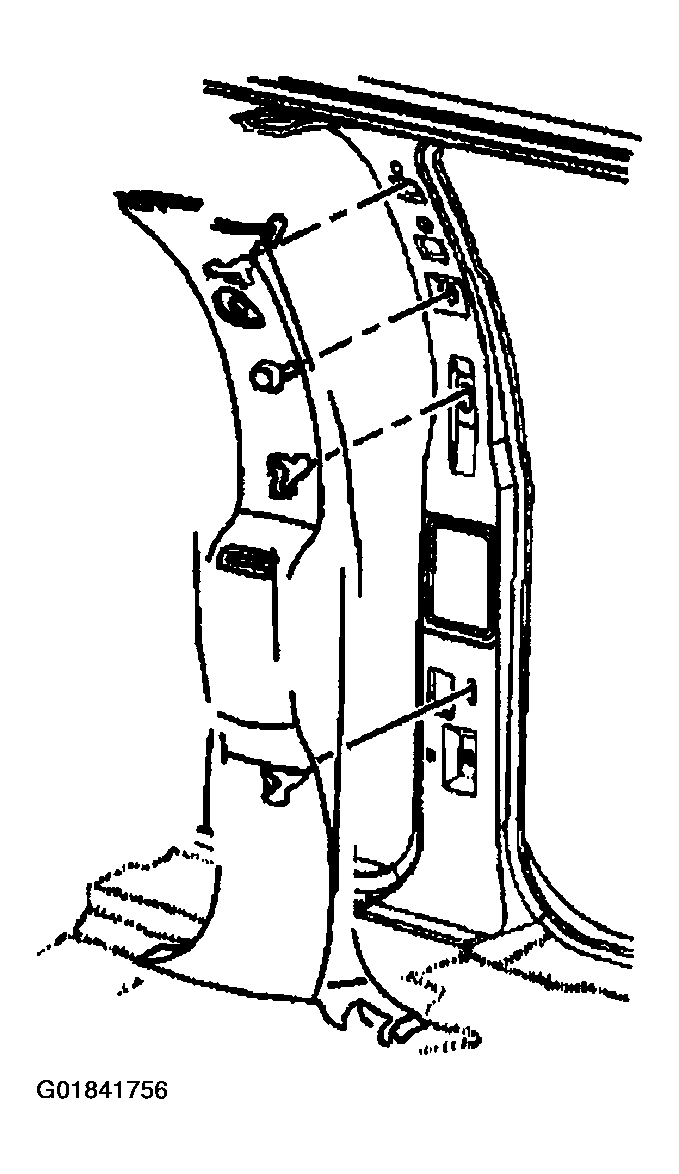

    Fig 1: Locating Front Side Door Lock Pillar Garnish Molding Components
    G01841756Courtesy of GENERAL MOTORS CORP.
