Removal Procedure

  1. Use the J 38778  in order to remove the rear header garnish molding.

    Insert the J 38778  and work along the front edge of the trim panel from one end to the other.

  2. Remove the cargo lamp from the roof rear header garnish molding. Refer to CARGO LAMP REPLACEMENT in EXTERIOR LIGHTS article.

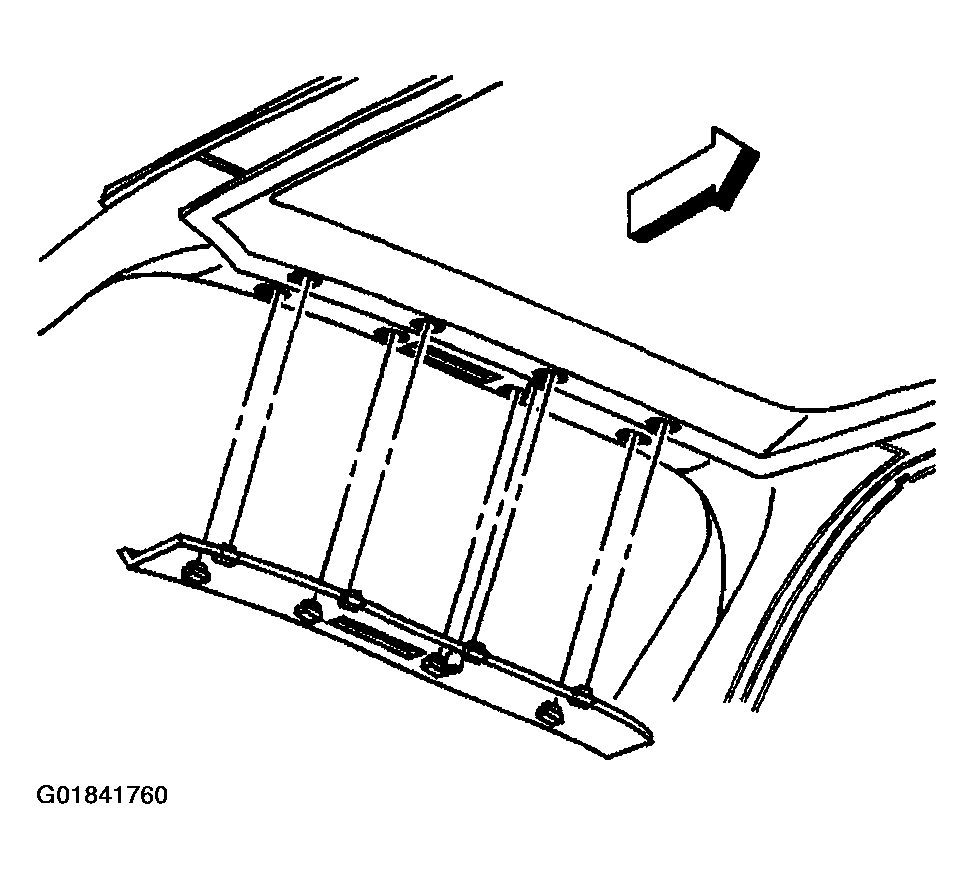

    Fig 1: Identifying Rear Upper Garnish Molding
    G01841760Courtesy of GENERAL MOTORS CORP.
