Removal Procedure

  1. Remove the console roof screw.
  2. Disconnect the electrical connectors.
  3. Remove the console.

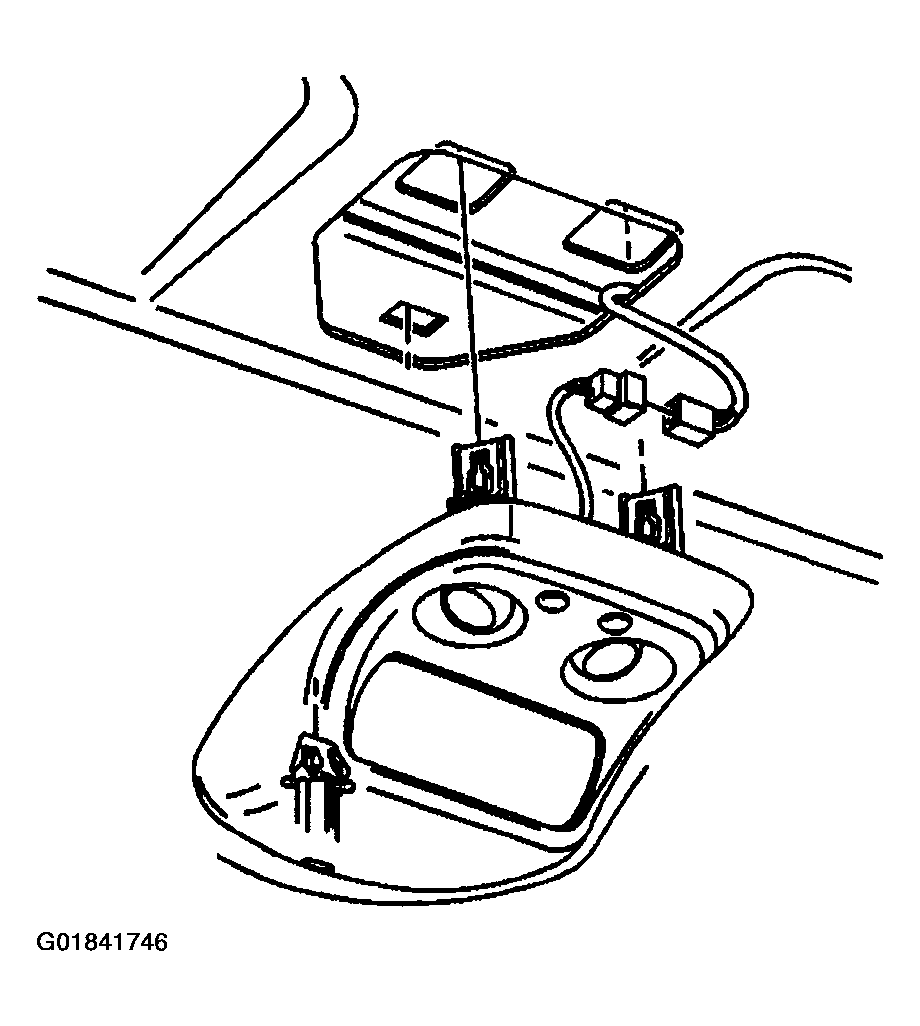

    Fig 1: Identifying Overhead Console (Short)
    G01841746Courtesy of GENERAL MOTORS CORP.
