Removal Procedure

  1. Remove the overhead lamp lens on the overhead console.
  2. Remove the 3 overhead console roof screws. One screw is located towards the front of the console and the other 2 are located behind the dome lamp lens.
  3. Disconnect the electrical connectors.
  4. Remove the console.

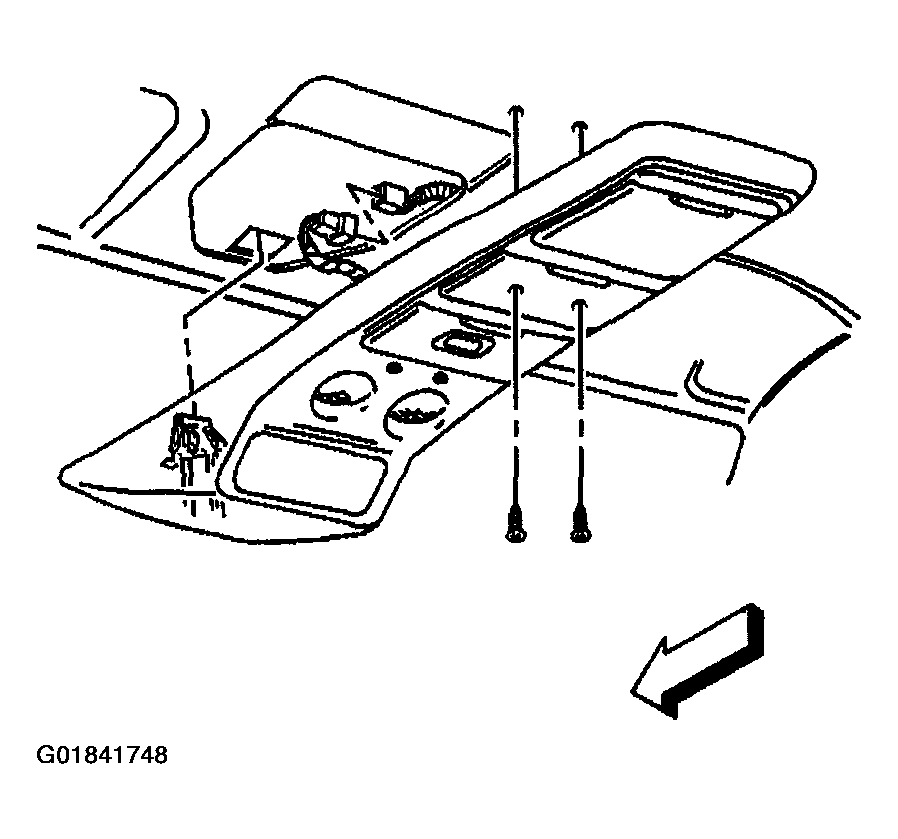

    Fig 1: Identifying Overhead Console (Full Length)
    G01841748Courtesy of GENERAL MOTORS CORP.
