Removal Procedure

  1. Remove the rear seat floor filler trim panels. Refer to SEAT BACK FILLER PANEL REPLACEMENT - REAR in SEATS article.
  2. Remove the body side trim panels, as necessary. Refer to TRIM PANEL REPLACEMENT - BODY SIDE (STANDARD CAB PICKUP) , TRIM PANEL REPLACEMENT - BODY SIDE (EXTENDED CAB PICKUP) , TRIM PANEL REPLACEMENT - BODY SIDE (2-DOOR UTILITY) , TRIM PANEL REPLACEMENT - BODY SIDE (4-DOOR UTILITY)  or TRIM PANEL REPLACEMENT - BODY SIDE (CREW CAB) .
  3. Remove the jack from the vehicle.
  4. Remove the endgate or the liftgate door sill trim plate. Refer to DOOR SILL PLATE REPLACEMENT - END GATE  or DOOR SILL PLATE REPLACEMENT - LIFT GATE .
  5. Remove the bolts that retain the cargo tie down hooks to the floor.
  6. Remove the cargo tie down hooks.

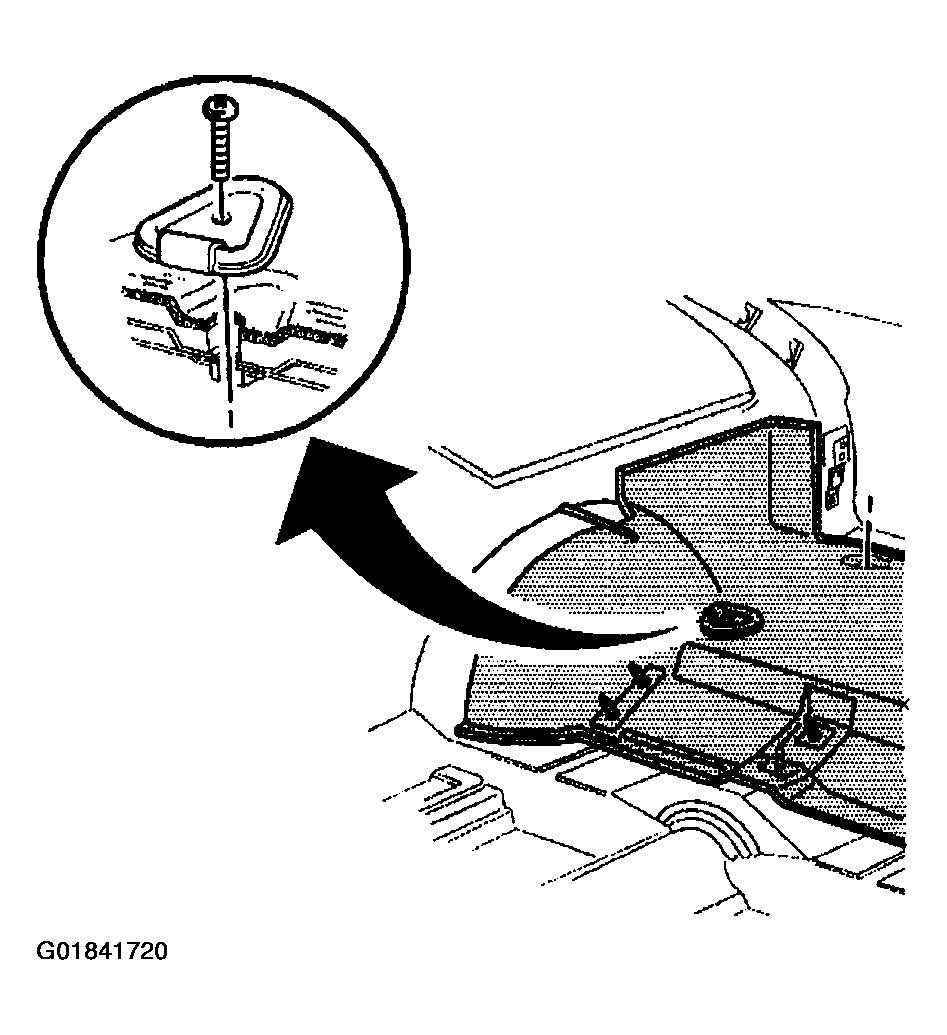

    Fig 1: Identifying Cargo Tie Down Hooks
    G01841720Courtesy of GENERAL MOTORS CORP.
  7. Remove the rear carpet or the mat from the vehicle.

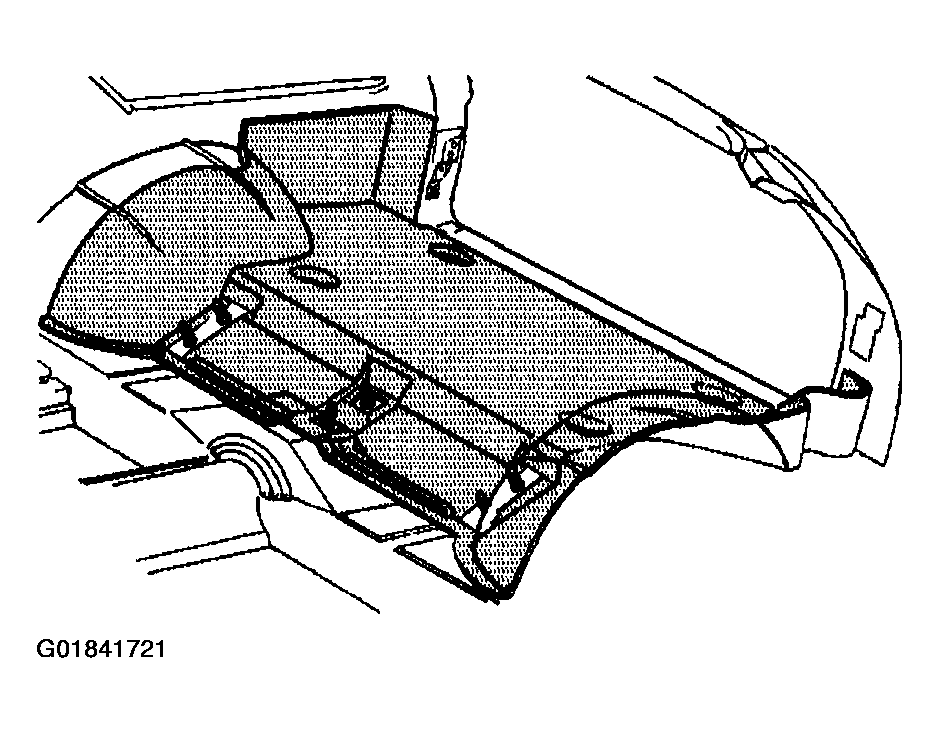

    Fig 2: Identifying Vehicle Rear Carpet Or Mat
    G01841721Courtesy of GENERAL MOTORS CORP.
