Removal Procedure

  1. Remove the rear window garnish molding.

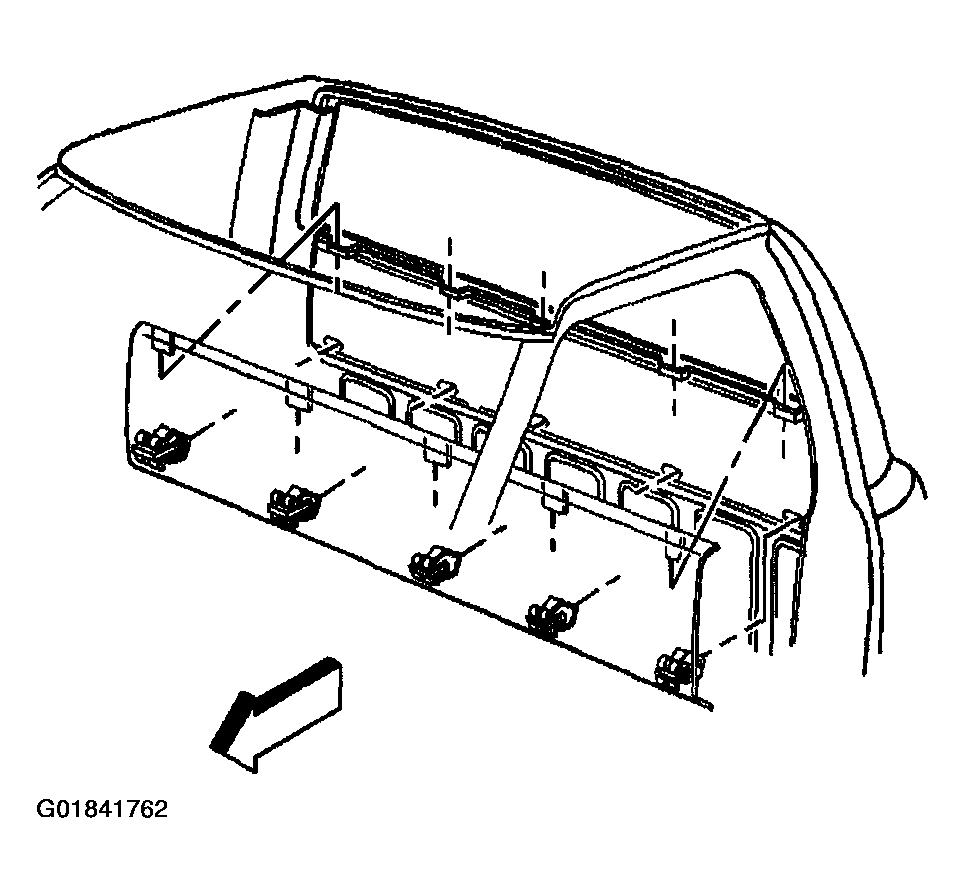

    Fig 1: Locating Rear Window Garnish Molding
    G01841762Courtesy of GENERAL MOTORS CORP.
  2. Remove the jack storage cover.
  3. Use the J 38778  in order to release the rear carpet panel retainers.
  4. Remove the rear inner panel carpet from the vehicle.

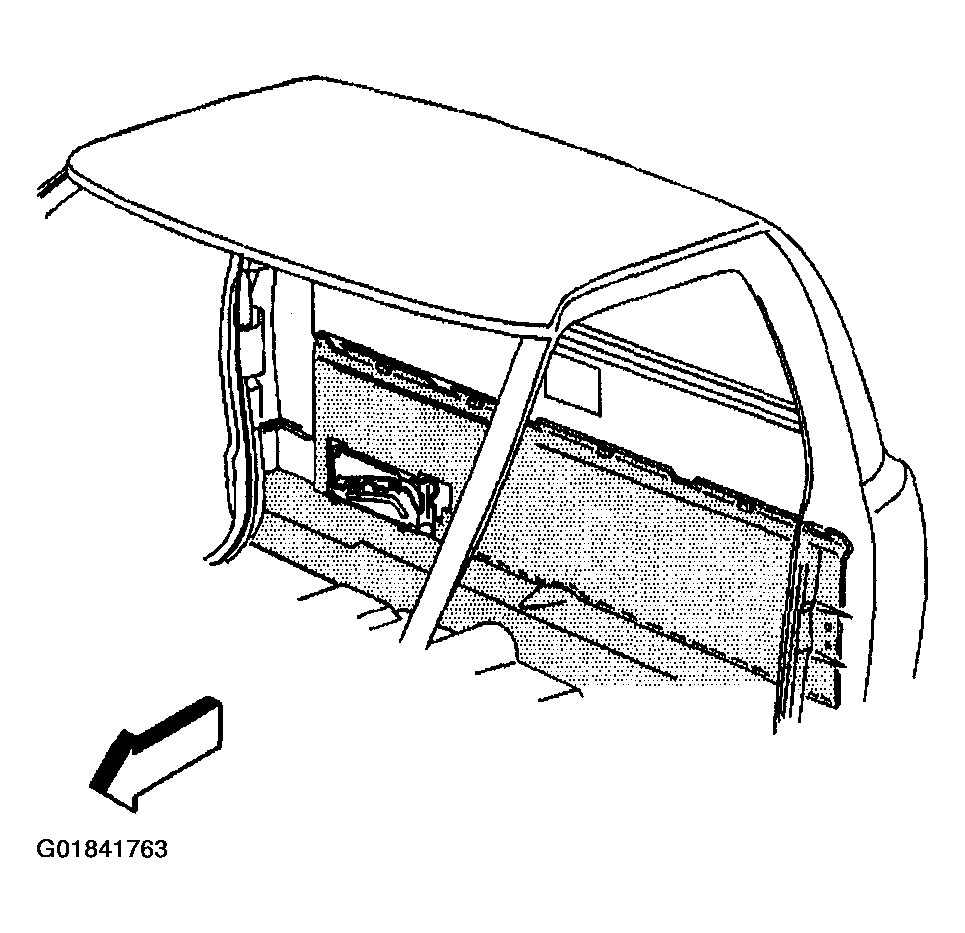

    Fig 2: Locating Rear Inner Panel Carpet
    G01841763Courtesy of GENERAL MOTORS CORP.
