Removal Procedure

  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in GENERAL INFORMATION.
  2. Remove the screws that retain the rear wheel flare to the vehicle.
  3. Cut the 2-way adhesive that retains the wheel flare to the rear fender.
  4. Remove the rear wheel flare from the fender.

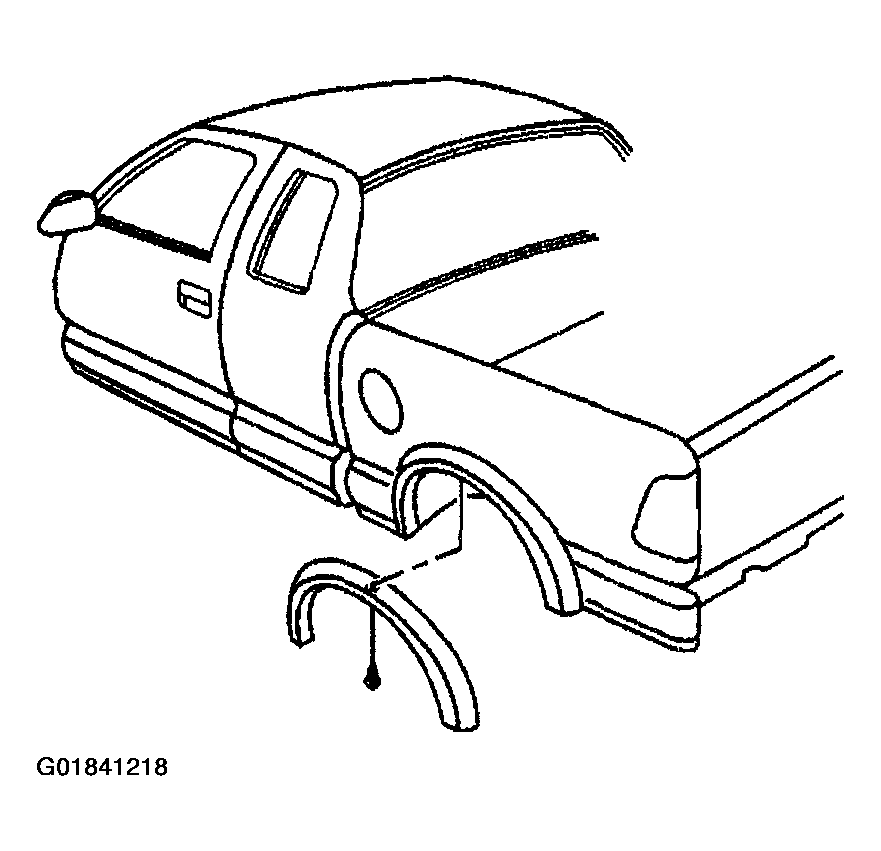

    Fig 1: Wheel Opening Flare - Rear (Xtreme)
    G01841218Courtesy of GENERAL MOTORS CORP.
  5. Remove the 2-way adhesive from the wheel flare.
