Removal Procedure

  1. Remove the wheel house panel access plugs.
  2. Remove the nuts that retain the panel to the flare.

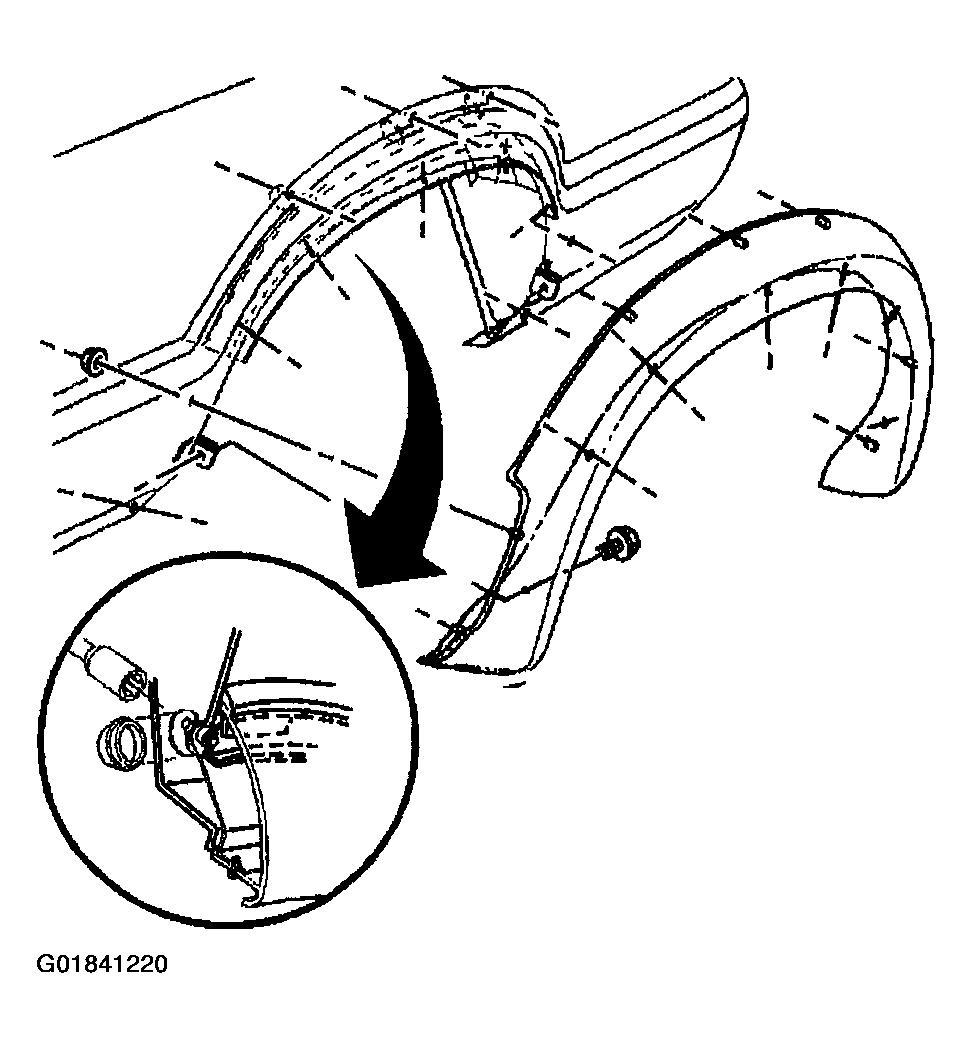

    Fig 1: Wheel Opening Flare - Rear (All Except Xtreme)
    G01841220Courtesy of GENERAL MOTORS CORP.
  3. Remove the screws that retain the flare to the panel.
  4. Remove the flare from the panel.
