Removal Procedure

  1. Remove 2 nuts securing the lower flare molding to the front bumper assembly.
  2. Remove the fender. Refer to FENDER REPLACEMENT - FRONT in BODY FRONT END article.
  3. Remove the fender to flare retaining nuts inside of the fender from the flare molding studs.
  4. Remove the flare to fender retaining screws around the wheel opening.
  5. Remove the flare from the fender.

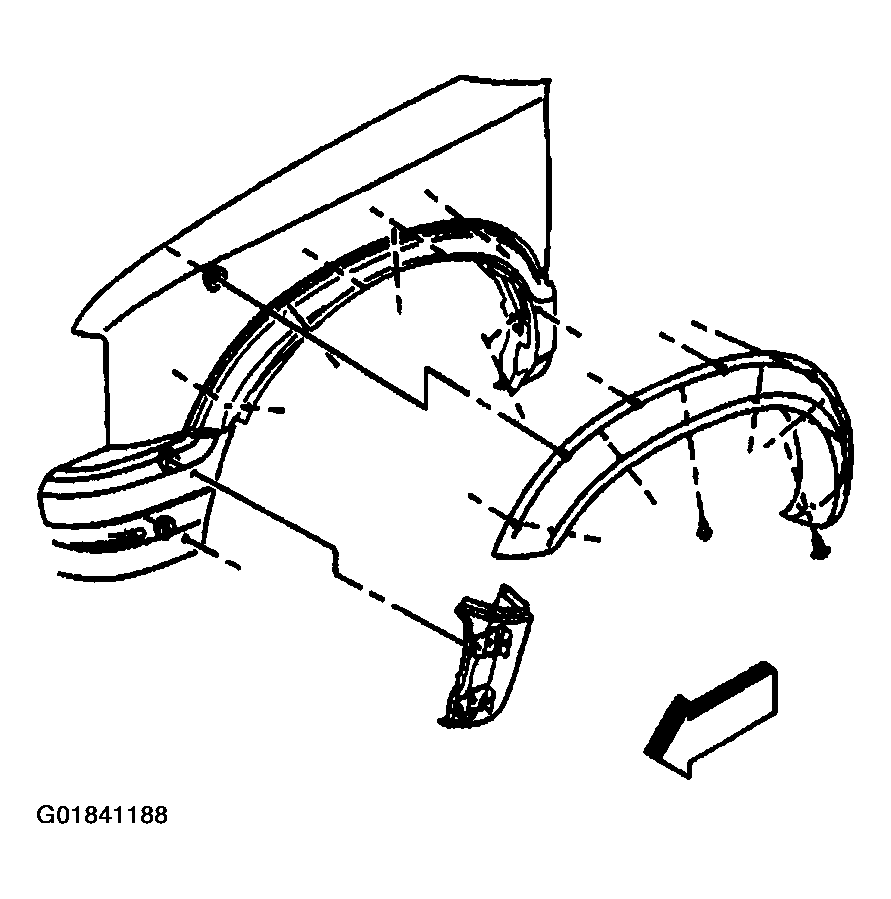

    Fig 1: Flare-To-Fender Retaining Screws
    G01841188Courtesy of GENERAL MOTORS CORP.
