Removal Procedure

  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in GENERAL INFORMATION.
  2. Remove the fender flare.
  3. Remove the pushpins that retain the rocker molding to the vehicle.

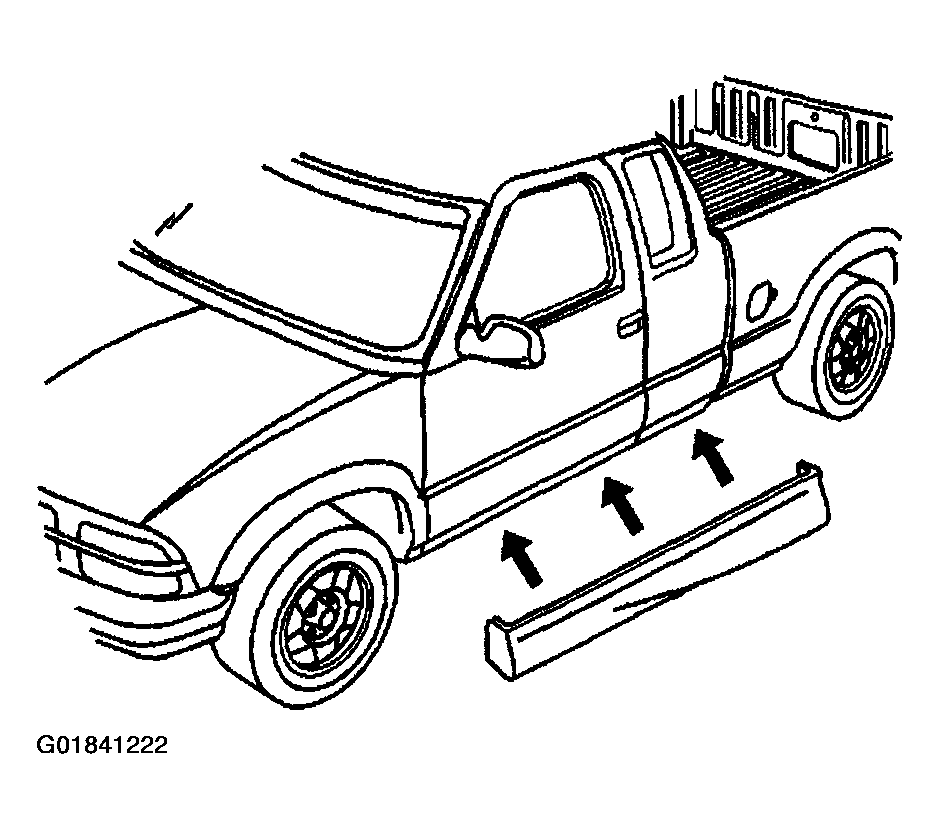

    Fig 1: Rocker Panel Molding (Xtreme)
    G01841222Courtesy of GENERAL MOTORS CORP.
  4. Cut the 2-way adhesive that retains the rocker molding to the vehicle.
  5. Remove the 2-way adhesive from the rocker molding.
