Removal Procedure

  1. Remove the front fender lower rocker panel molding.
  2. Remove the push pin retainer.

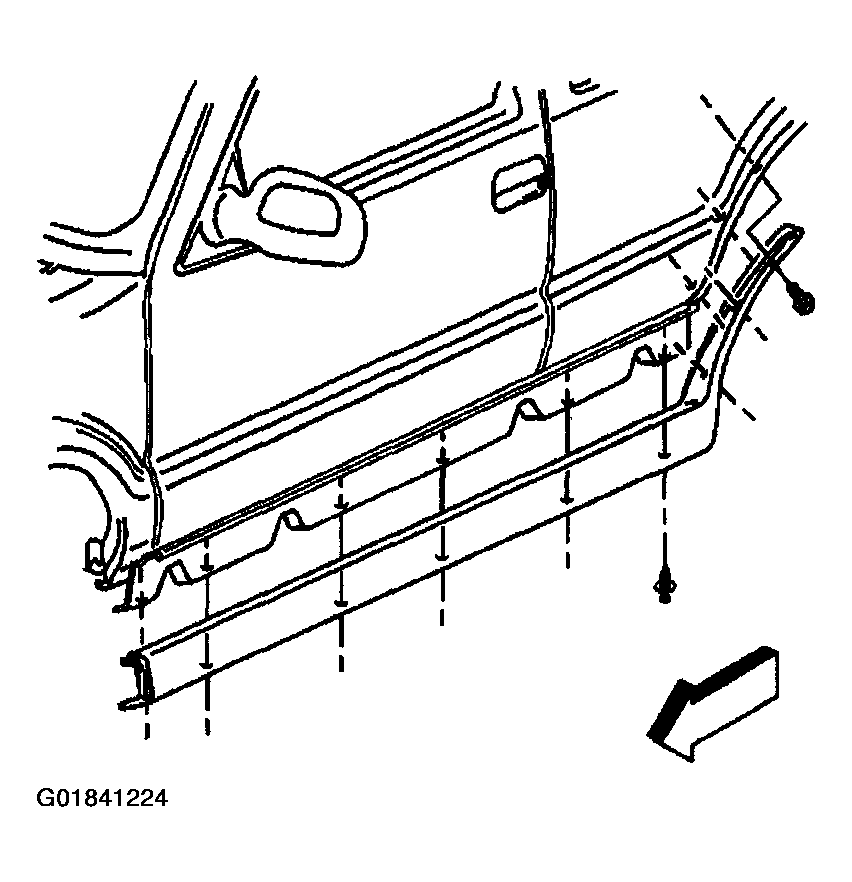

    Fig 1: Rocker Panel Molding (Blazer)
    G01841224Courtesy of GENERAL MOTORS CORP.
  3. Remove the screw from the rear wheel opening.
  4. Carefully lift up on the rocker panel molding in order to remove the rocker panel molding from the vehicle.
