Removal Procedure

Remove the rocker panel molding. Refer to MOLDING REPLACEMENT - ROCKER PANEL (XTREME) or MOLDING REPLACEMENT - ROCKER PANEL (BLAZER) or MOLDING REPLACEMENT - ROCKER PANEL (JIMMY) .
Remove the push pin retainer on the bottom of the molding securing the molding to the rocker panel retainer.
Remove 3 screws securing the front fender rear molding to the fender.

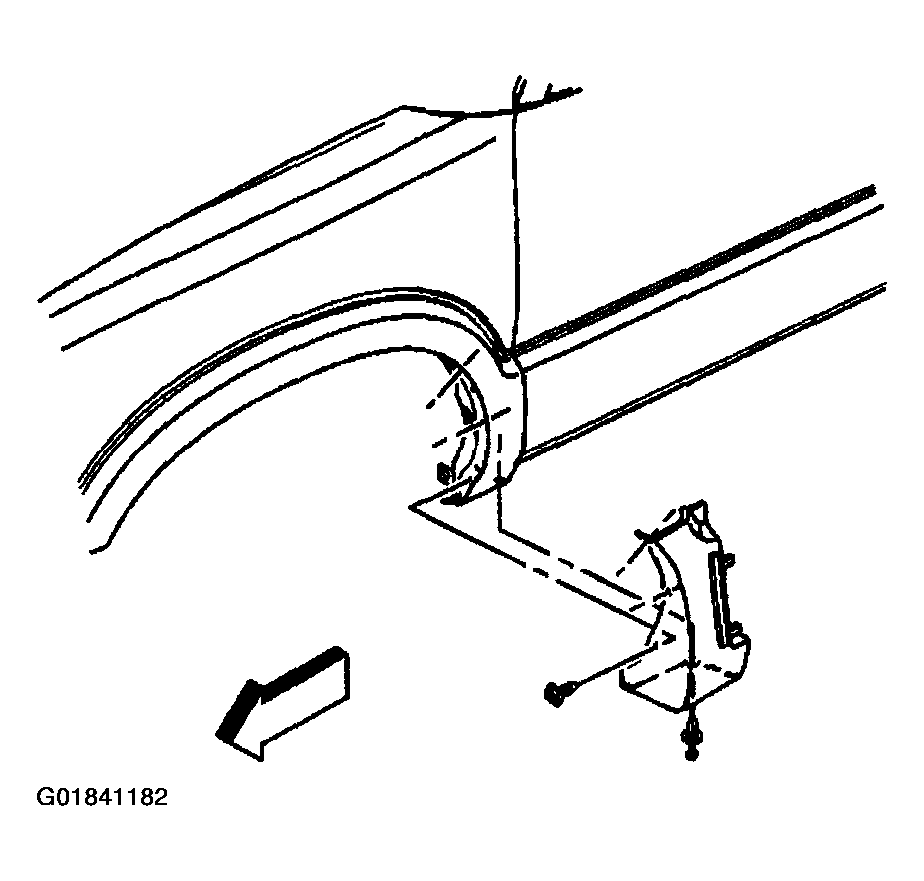

Fig 1: Front Fender Rear Molding-To-Fender Screw (Jimmy)
Courtesy of GENERAL MOTORS CORP.
Remove the molding.
1. 4.1

  Heat the molding using a J 25070 . Hold the heat gun approximately 152 mm (6 inches) from surface.
  Apply heat using a circular motion for approximately 30 seconds.

  IMPORTANT: Be careful not to scratch or chip the paint.
2. 4.2

  Peel the front fender rear molding from the panel surface using a flat-bladed tool.
3. 4.3

  Remove all adhesive from the fender and the back of the molding using a 3M® scotch brite molding adhesive remover disk 3M® P/N 07501 or equivalent.
4. 4.4

  Clean the body panel using Varnish Makers and Painters (VMP) naphtha.
