Removal Procedure

  1. Open the hood.

    Support the hood with a prop rod.

  2. Remove the grille by gently pulling evenly in order to disengage the retainers.
  3. Remove the grille from the vehicle.

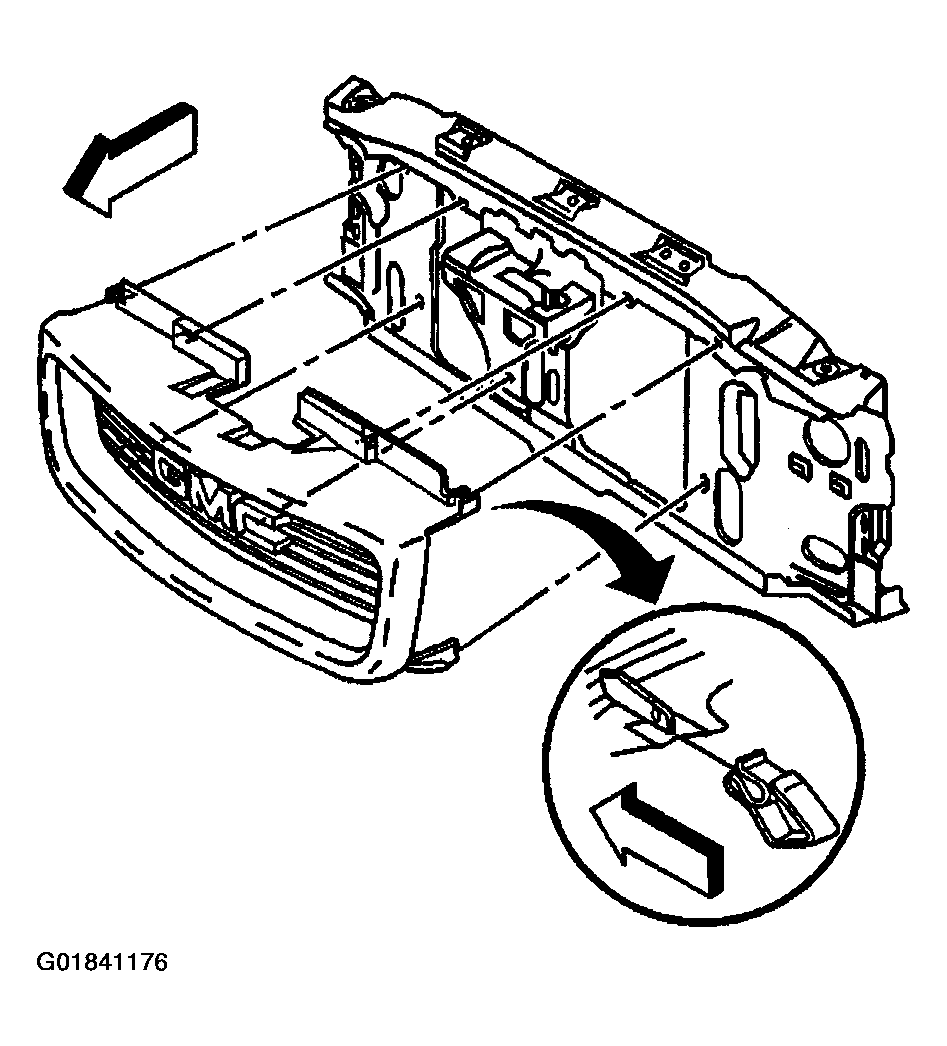

    Fig 1: Identifying Grille Components (GMC)
    G01841176Courtesy of GENERAL MOTORS CORP.
