Removal Procedure

  1. Open the hood.

    Support the hood with a prop rod.

  2. Remove the grille by pulling it forward out of the radiator support.
  3. Disconnect the headlamp washer filler hose from the grille.
  4. Remove the park/turn signal bulb assembly from the lens.
  5. Remove the fog lamp bulb assembly from the lens, if equipped.
  6. If replacing the grille, remove the park turn signal lamp/fog lamp assembly from the grille. Refer to FRONT FOG LAMP - PARK/TURN SIGNAL ASSEMBLY RE in EXTERIOR LIGHTS article.

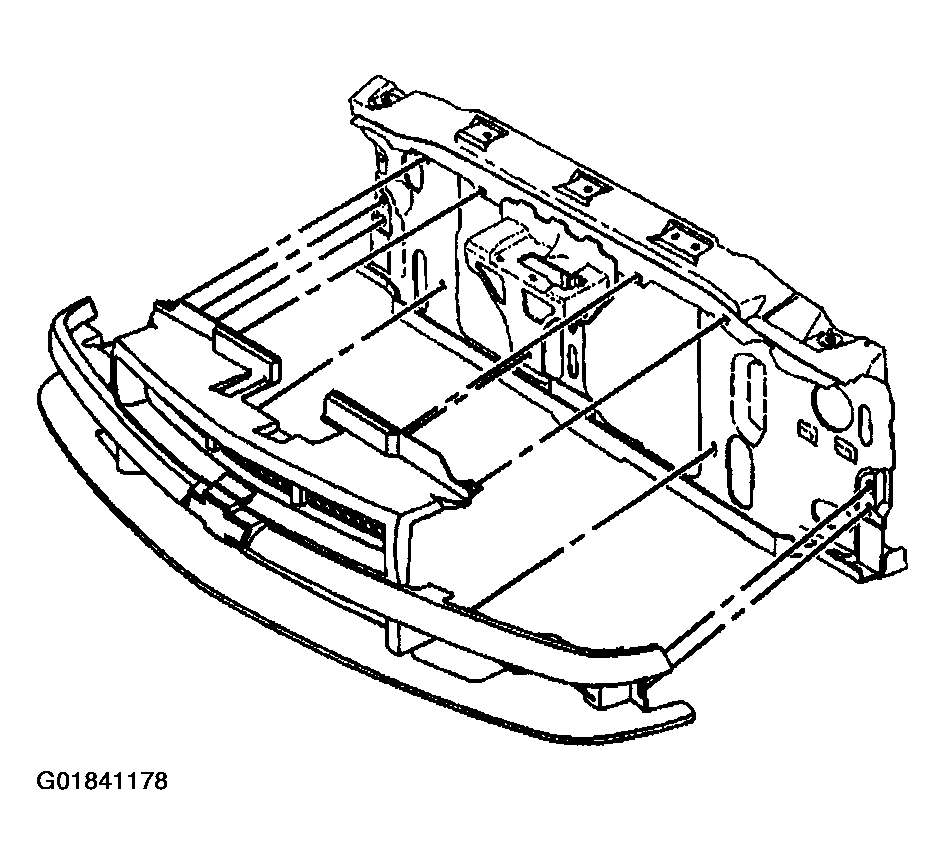

    Fig 1: Grille Components (Chevrolet)
    G01841178Courtesy of GENERAL MOTORS CORP.
