Removal Procedure

  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in GENERAL INFORMATION.
  2. Remove the push-pins from the lower moldings.
  3. Remove the nuts that retain the cladding to the pickup box.
  4. Remove the cladding from the pickup box.

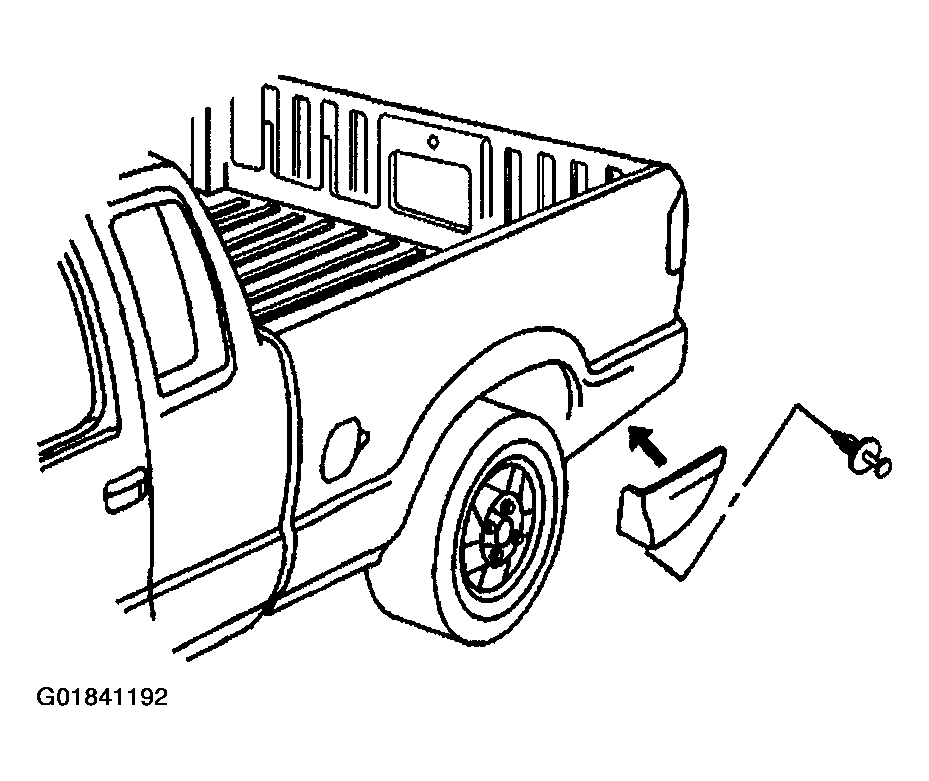

    5. Fig 1: Cladding-To-Pickup Box Nuts
    G01841192Courtesy of GENERAL MOTORS CORP.
