Removal Procedure

  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in GENERAL INFORMATION.
  2. Remove the rear wheel flare. Refer to WHEEL OPENING FLARE REPLACEMENT - REAR (XTREME)  or WHEEL OPENING FLARE REPLACEMENT - REAR (ALL EXCEPT XTREME) .
  3. Remove the push-pins from the lower molding.
  4. Remove the lower molding from the pickup box.

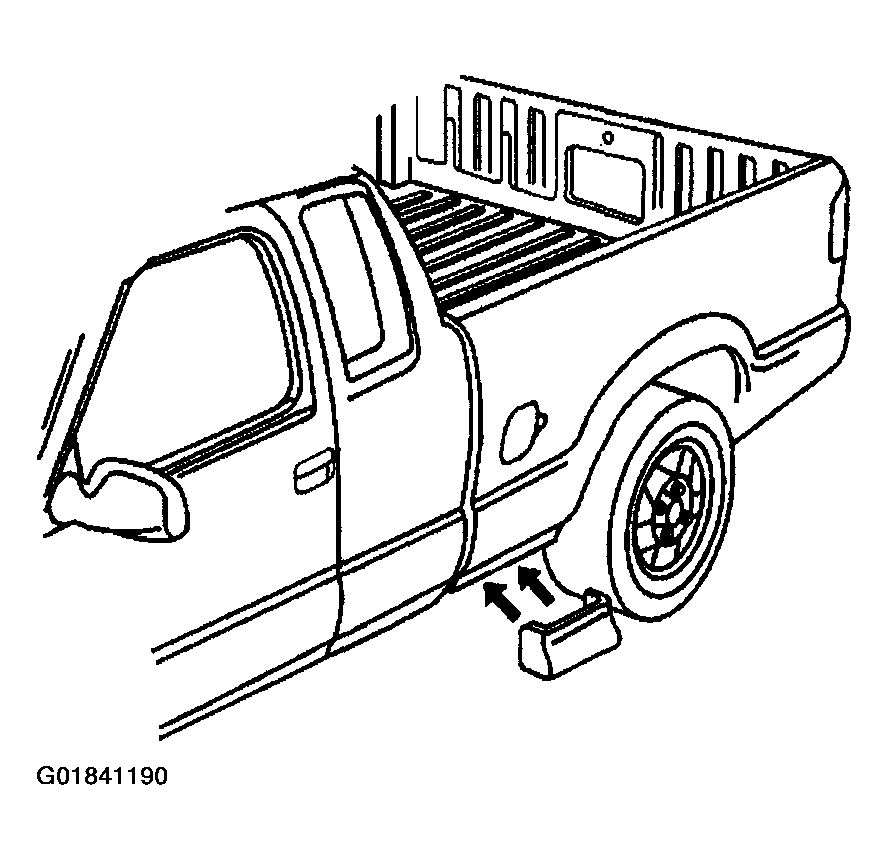

    Fig 1: Lower Molding (Xtreme)
    G01841190Courtesy of GENERAL MOTORS CORP.
