Removal Procedure

  1. Use a flat-bladed tool in order to pry the step pads upward.
    Fig 1: Removing Rear Bumper Step Pad (Pickup)
    G01841358Courtesy of GENERAL MOTORS CORP.
  2. Remove the step pads from the bumper.

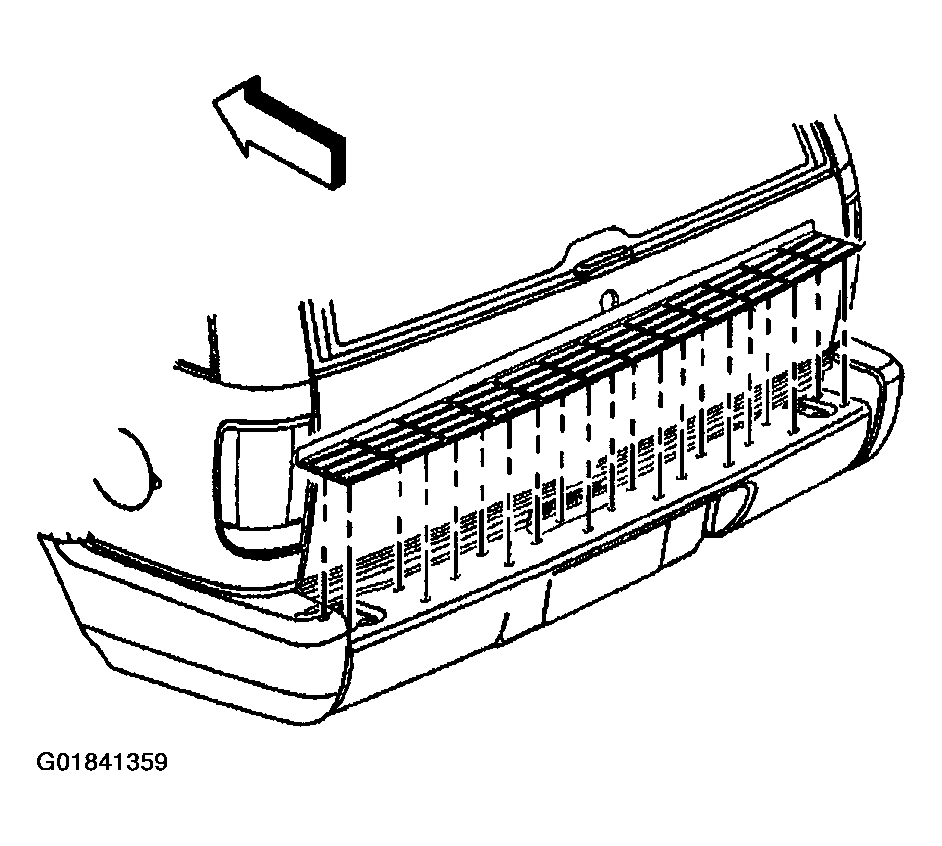

    Fig 2: Locating Rear Bumper Step Pad Components (Utility)
    G01841359Courtesy of GENERAL MOTORS CORP.
