Home >> Chevrolet >> 2002 >> Blazer 4D Utility, 4WD, Part Time >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Bumper System >> Repair Instructions >> License Bracket Replacement - Front >> Removal Procedure

Removal Procedure

  1. Remove the grille. Refer to GRILLE REPLACEMENT (GMC) or GRILLE REPLACEMENT (CHEVROLET) in EXTERIOR TRIM article.
  2. Drill out the rivets that retain the bracket to the front air deflector.

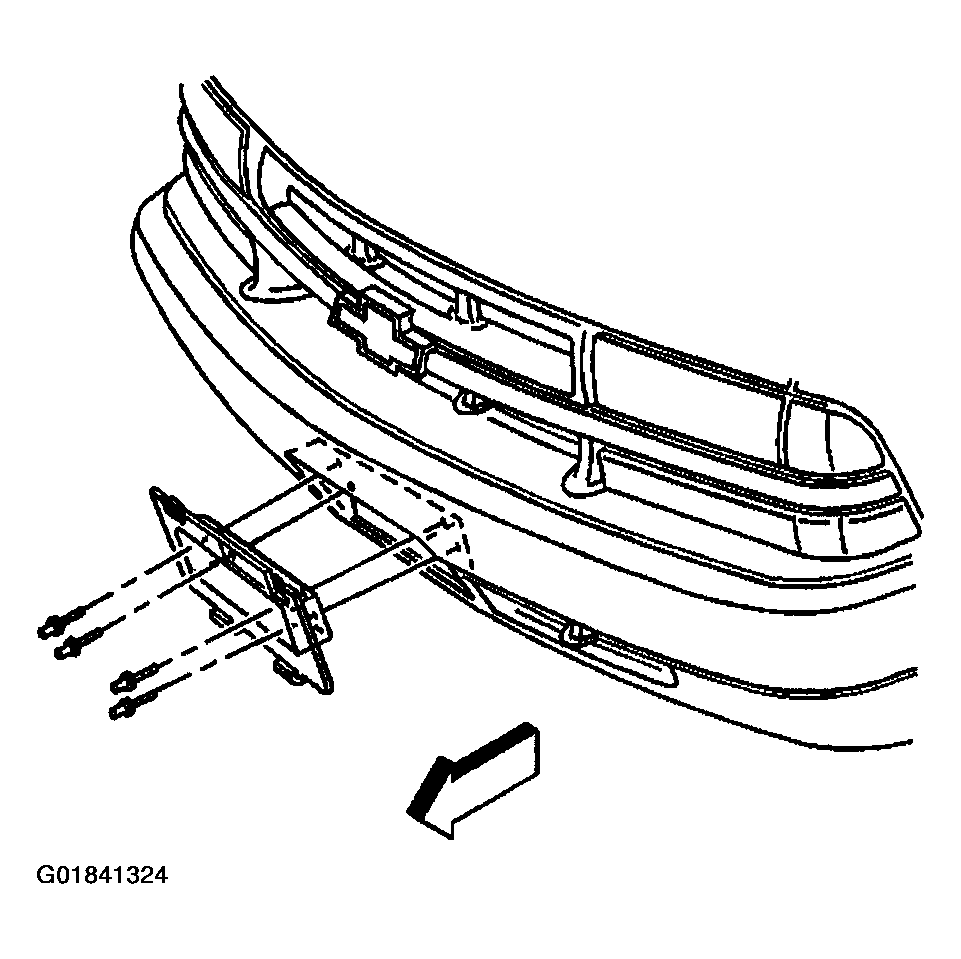

    Fig 1: Locating Front Air Deflector
    G01841324Courtesy of GENERAL MOTORS CORP.
  3. Remove the bracket from the front air deflector.
