Installation Procedure

  1. Drill 4 new holes in the air deflector using a drill jig if a new air deflector has been installed.

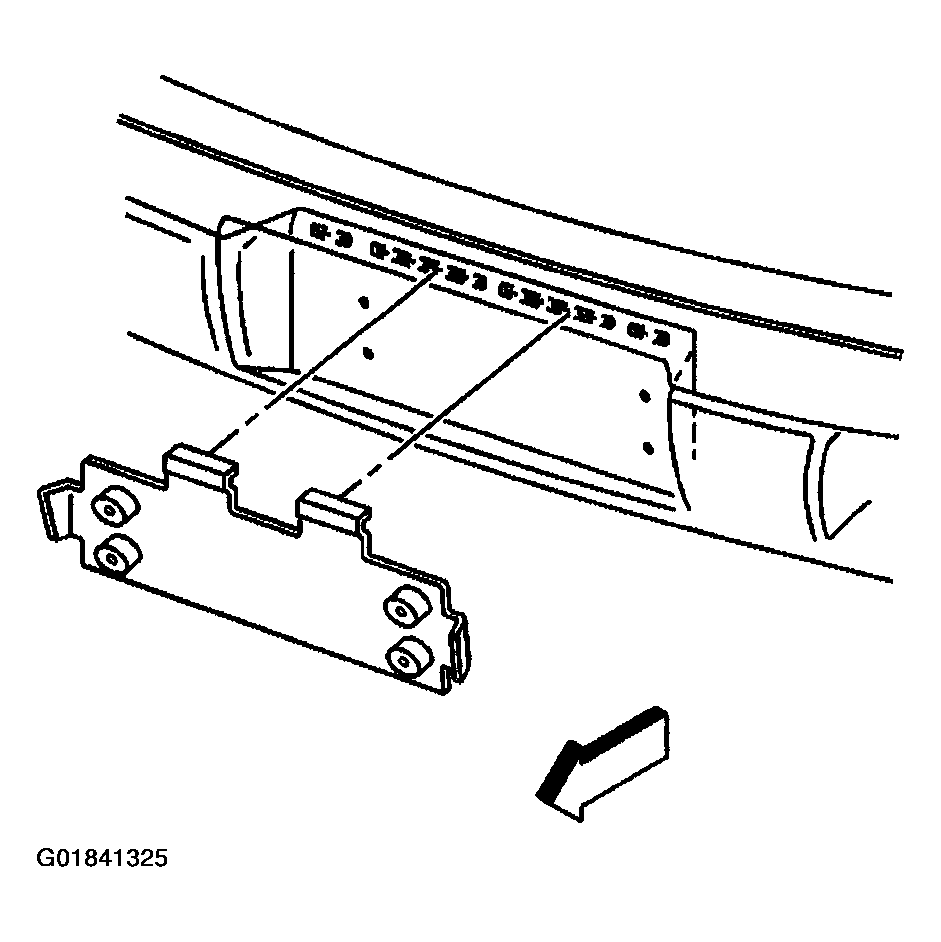

    Fig 1: Positioning Front Air Deflector
    G01841325Courtesy of GENERAL MOTORS CORP.
  2. Install the bracket to the front air deflector with 4 rivets.

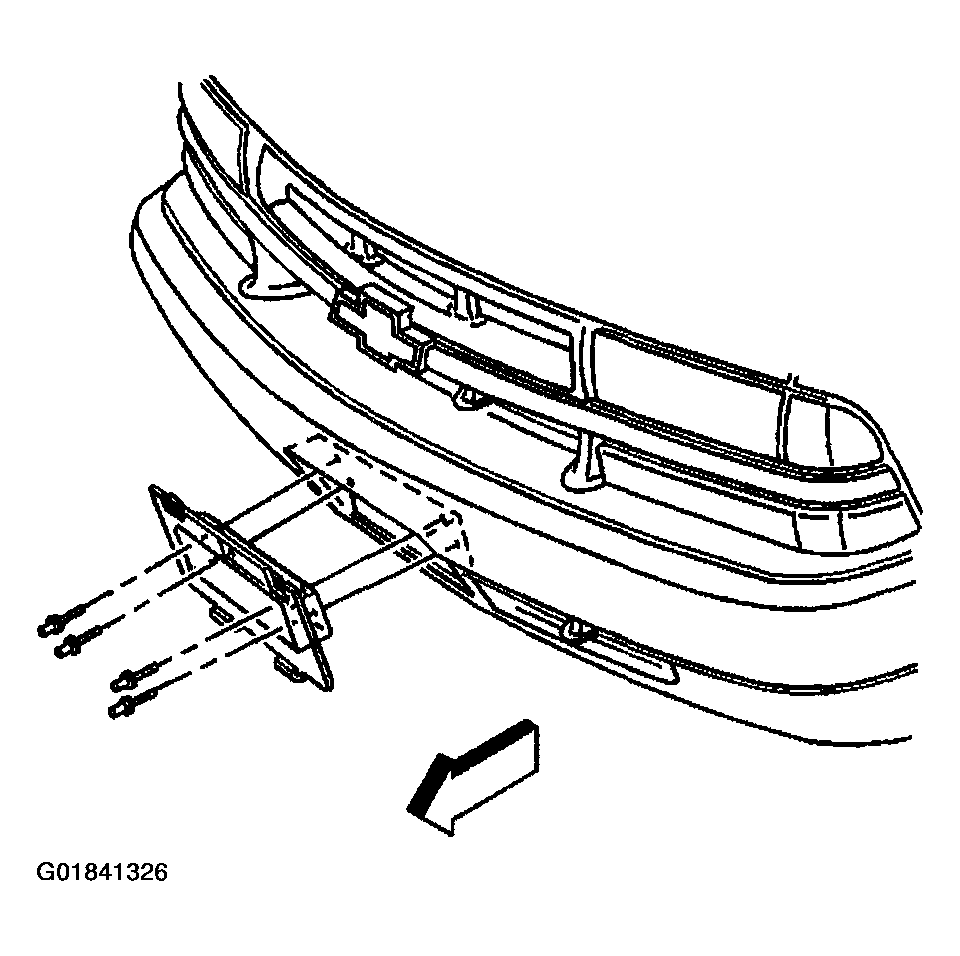

    Fig 2: Locating Front Air Deflector
    G01841326Courtesy of GENERAL MOTORS CORP.
  3. Install the grille. Refer to GRILLE REPLACEMENT (GMC) or GRILLE REPLACEMENT (CHEVROLET) in EXTERIOR TRIM article.
